M565Li OWNER’S/OPERATOR’S MANUAL
16. MAINTENCE
86

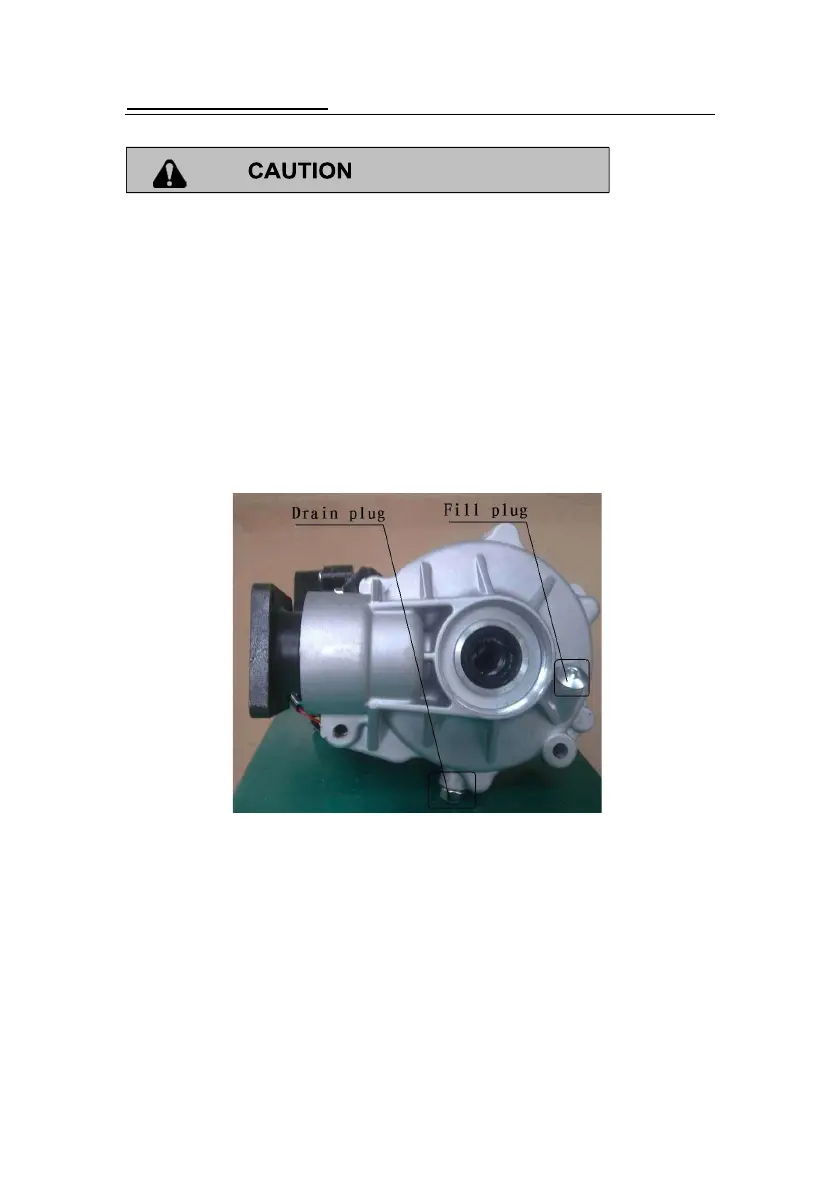

Front Differential Case Lubrication
Be sure no foreign material enters the gear case. With the ATV on a level
surface, remove fill plug and visually inspect oil level through the fill hole. Oil
should be kept even with the center of the drill point approximately below the
top of the fill hole.
NOTE: Do not add oil to the bottom of the fill plug threads.
Correct front differential oil: SAE GL-5 85W/90.
Recommended Front Differential oil:
MAXIMA HYPOID GEAR LUBE PREMIUM 80W90 - GL5
Oil Change
1.
Remove the drain plug. Catch and discard used oil properly.
2.
Clean and reinstall the drain plug with a new sealing washer and tighten
securely (20 Nm).
3.
Remove fill plug, add 330 ml of SAE GL-5 85W/90 oil and inspect oil level.
Oil level should be kept even with the center of the drill point (approximately
below the top of the fill hole).
4.
Reinstall the fill plug. Tighten securely (35 Nm).
5.
Check for leaks.
