4. USING THE SG1000
™
SMOKE GENERATOR
4.1. CONNECTING THE SMOKE GENERATOR TO THE BASE
Engage the slots on the bottom rear of the Smoke Generator using the tabs on the
rear of the base and slide the Smoke Generator forward slightly (see Figure 4).
With the locking handle in the middle position, push down on the front of the
Smoke Generator (see Figure 5).
The seam between the Smoke Generator and the base will line up when the Smoke
Generator and base are properly engaged (see Figure 6).
Push down the locking lever until it meets the base. This locks the Smoke
Generator to the base (see Figure 7).
Carefully pick up the Smoke Generator and make sure the Smoke Generator is
secured to the base.

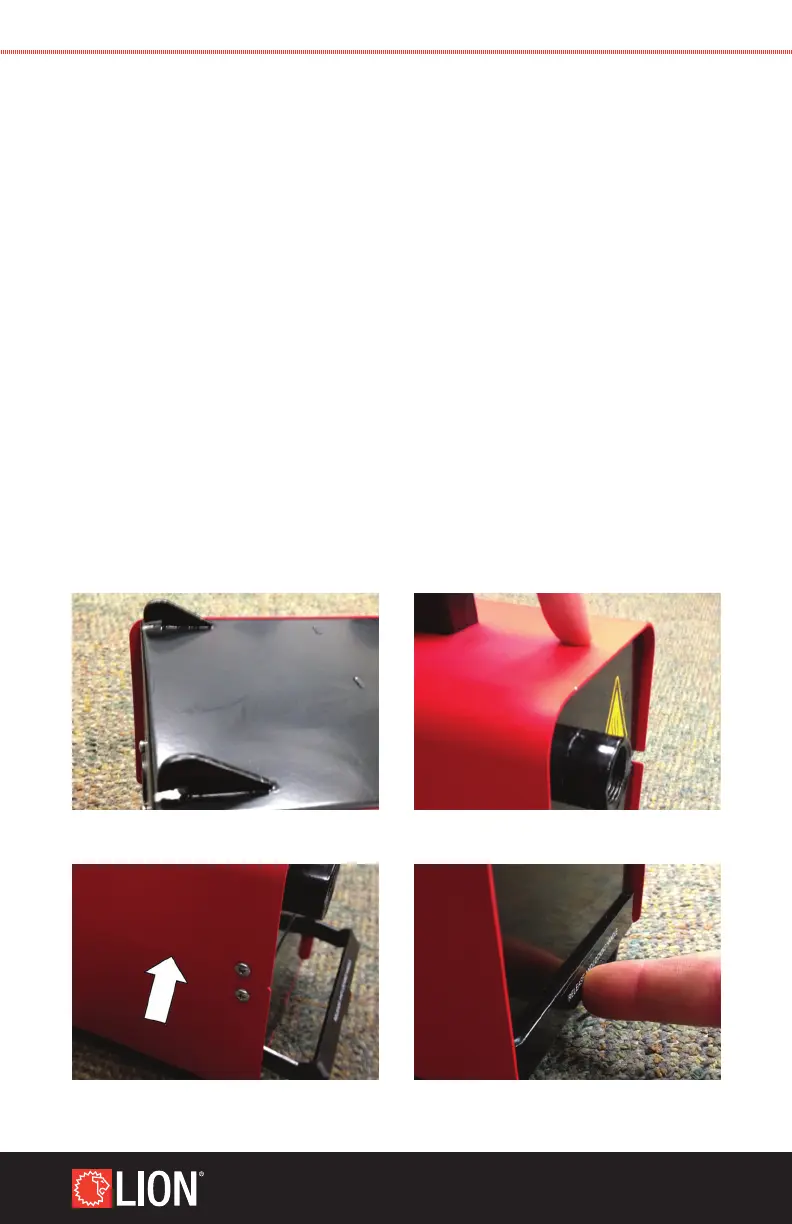

FIGURE 5: PUSH DOWN ON THE SG1000
FIGURE 7: PUSH DOWN THE LOCKING LEVER
FIGURE 4: SG1000 BASE TABS
FIGURE 6: SG1000 SEAM ALIGNED
