3. When cutting the drive shaft to measure, leave a minimum of 5 mm (0.21 in), maximum 10 mm
(0.40in), distance between each shaft and the motor (Fig. 4A).
4. After the total measurement has been determined, and making sure at least one side is 185 mm (7.3in), mark
the area the motor will be installed and cut and remove part of the drive shaft.
5. Ream the hole with a drill bit on both sides of the cut drive shaft (Fig. 5) removing any excess metal or burrs.

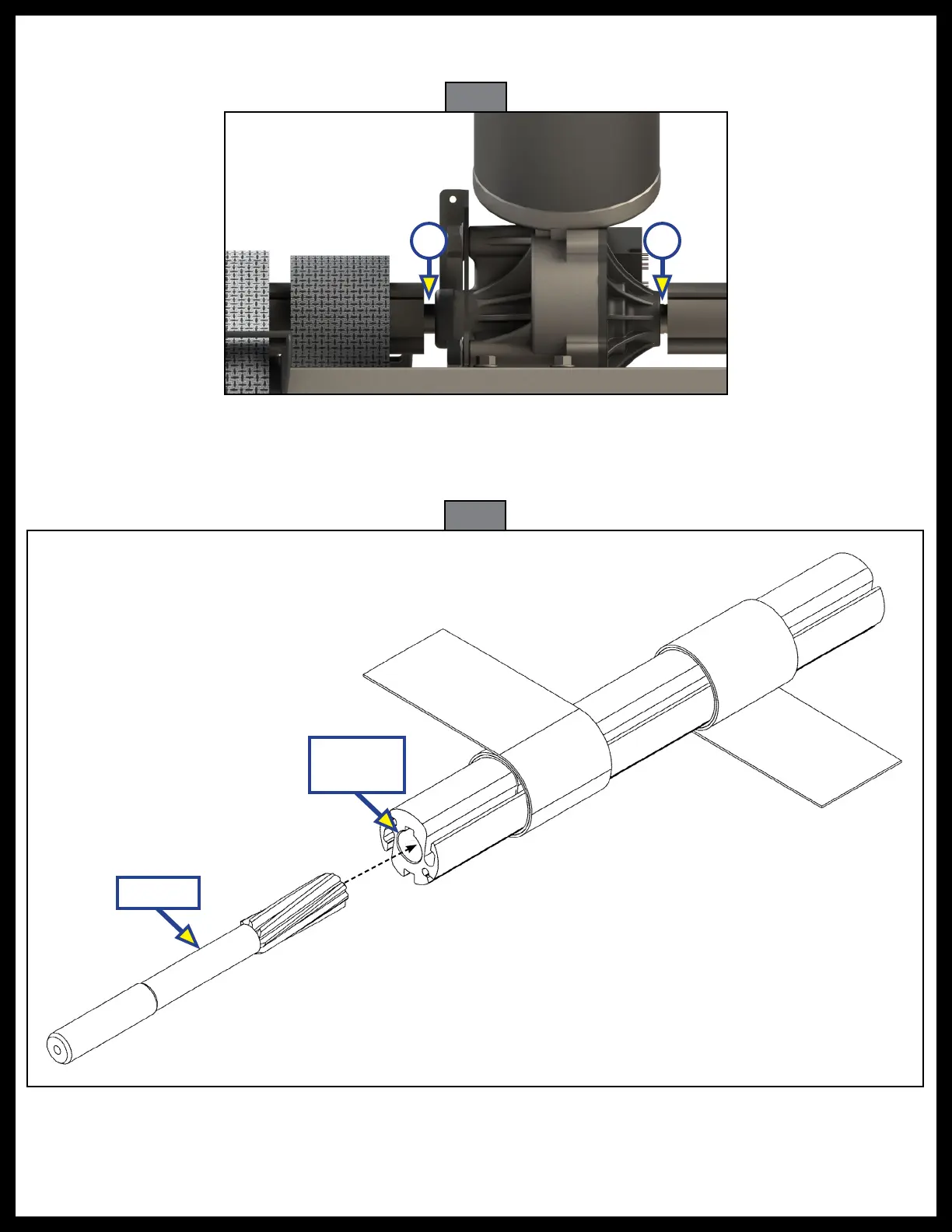

Fig. 4
A A
Fig. 5
Reamer
Cut Drive
Shaft
