Rev: 05.23.2017
Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com
Page 23 of 28
LEVELING AND STABILIZATION
GROUND CONTROL
®
3.0 6 POINT AFTERMARKET ASSEMBLY

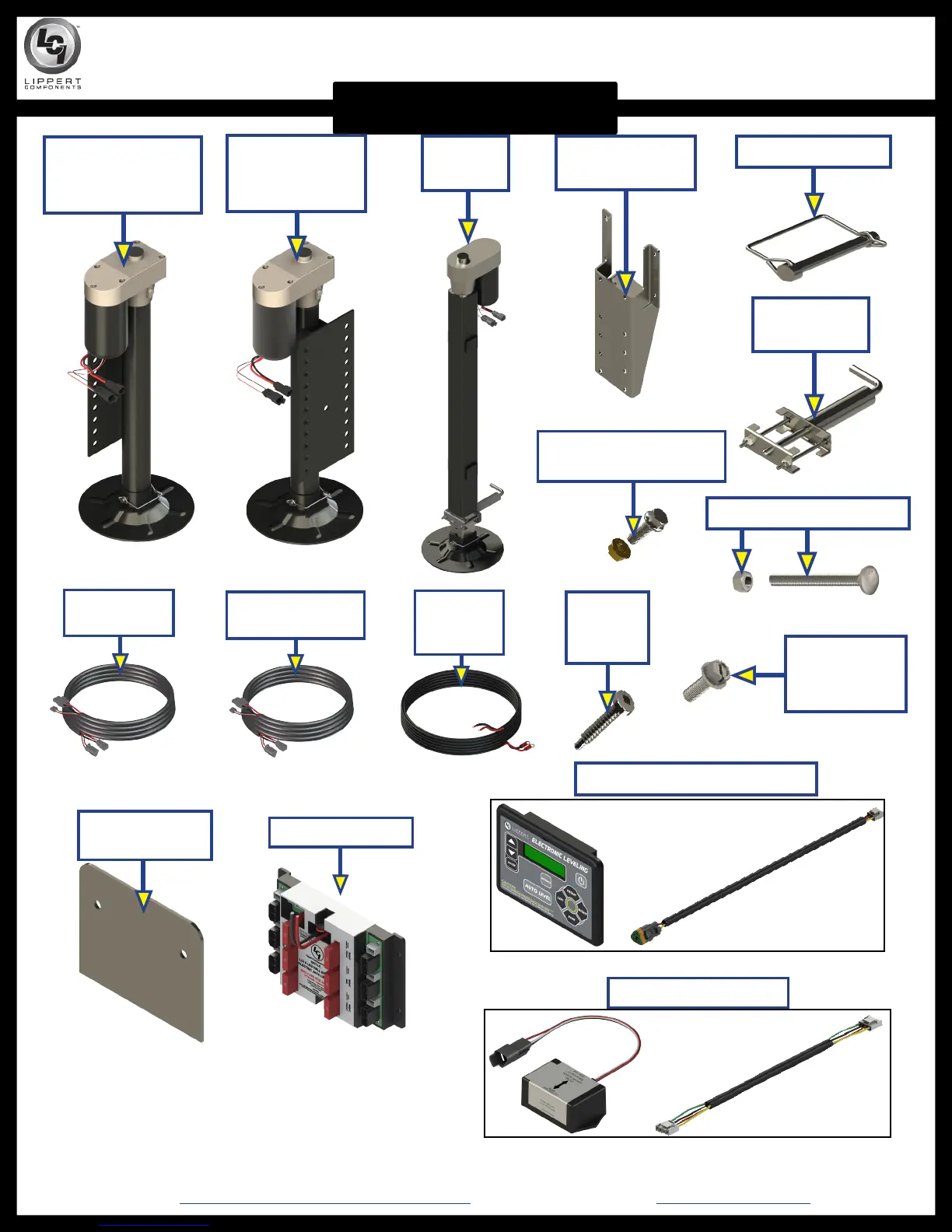

Jack Bracket
Mounting
Bolt x24
Power and
Ground
Harness
Rear Sensor
Mounting Plate
Snapper Pin x4
Rear
Sensor
Screw x4
Jack Mounting
Bracket x4
Landing
Gear x2
Bolt On Pull
Pin x2
Jack Mounting Bolt/Nut
x24
Landing Gear
Harnesses x2
Rear/ middle Jack
Harnesses x4
Carriage Bolt/ Nut x4
Left Hall Effect
Jacks; Rear
and Middle x2
Right Hall Effect
Jacks; Rear and
Middle x2
LCD Touch Pad & Harness
Rear Sensor & Harness
6 Point Controller
