Lippert Components ground control 3.0 Service Manual

Rev: 05.23.2017 Page 3 Ground Control 3.0 Service Manual
Callout Description
A Up Arrow - Scrolls up through the menu on LCD.
B Down Arrow - Scrolls down through the menu on LCD.
C Enter - Activates modes and procedures indicated on LCD.
D
Retract - Places leveling system into retract mode.
- Press and hold down for 1 second to initiate Auto Retract.
E LCD Display - Displays procedures and results.
F Auto Level - Places leveling system into auto level mode.
G Front Jack Button - Activates front jacks in manual mode.
H Left Jack Button - Activates left jacks in manual mode.
I Right Jack Button - Activates right jacks in manual mode.
J Rear Jack Button - Activates rear jacks in manual mode.
K Power Button - Turns leveling system on and off.
Fig. 1
A
E
F
H
G
B
C
D
J
I
K
Prior to Operation
The leveling system should only be operated under the following conditions:
1. The trailer is parked on a reasonably level surface.
2. Be sure all persons, pets, and property are clear of the trailer while the leveling system is in operation.
3. Make sure battery(ies) are fully charged and test at 12+VDC under load.

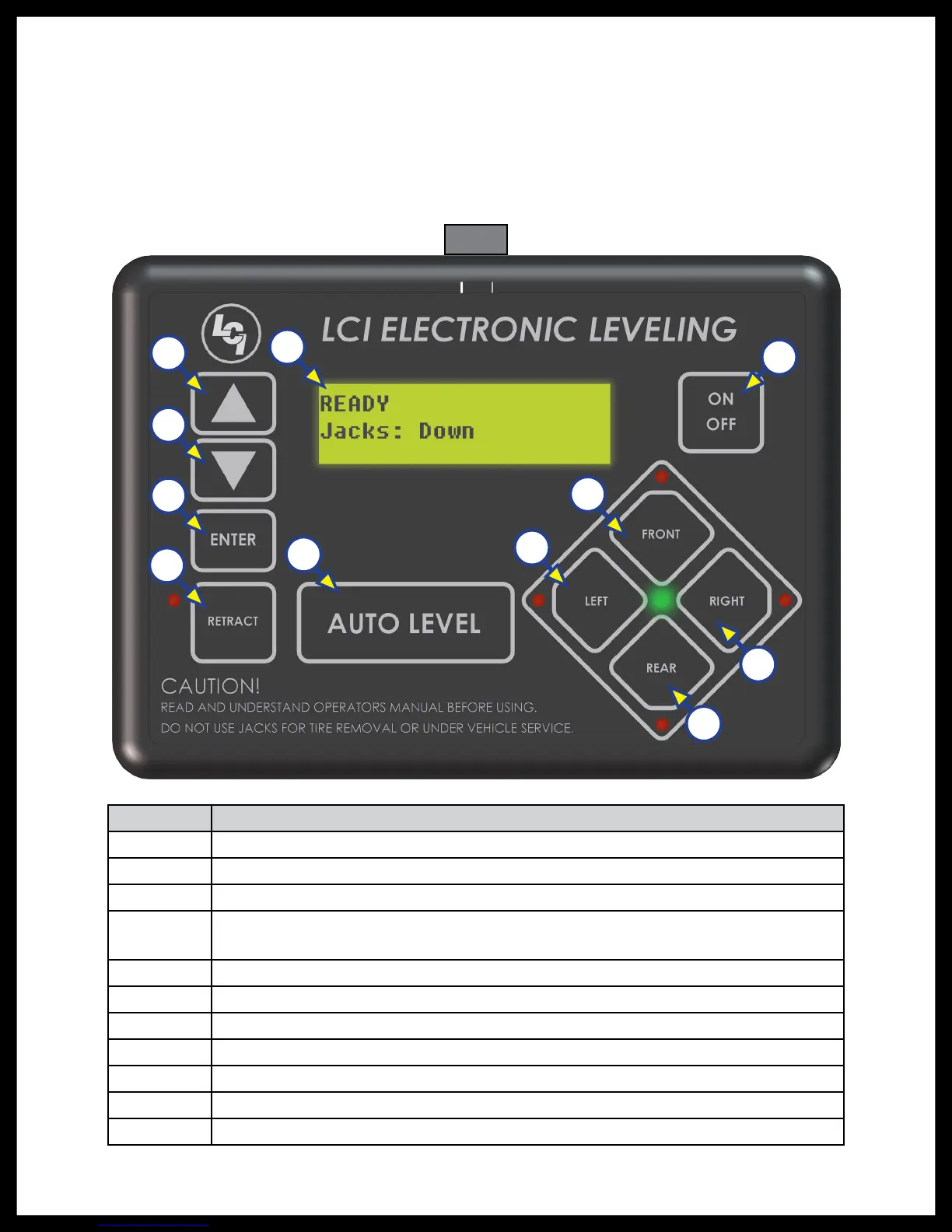

Touch Pad Diagram
