Locking the Upper Bunk Trolleys
1. If the lower trolleys have a have a sofa or dinette attached, rotate the seatback(s) to the horizontal position.
2. Flip the locking mechanism tab (Fig. 20A) so the long portion of the tab is outside of the C-channel.
Repeat for the other locking mechanisms.

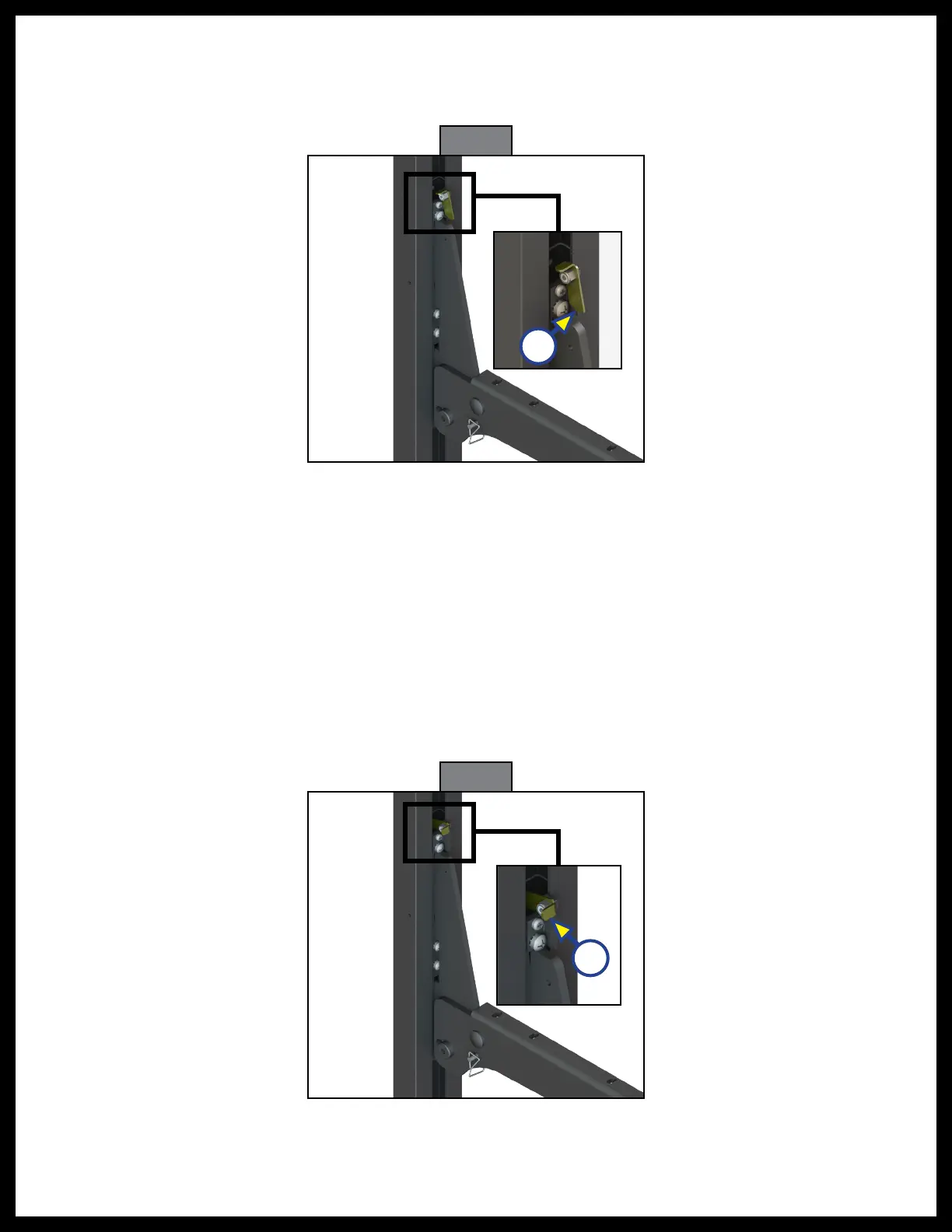

Fig. 20
Fig. 21
A
A
3. Press UP on the control switch until the upper bunk is in the full up position where the bed lift shuts off
automatically. This will engage the locking mechanism.
NOTE: There is an audible click when the locking mechanism engages. If the mechanism fails to latch
up, check to make sure the bunk lock assembly bolt is not too tight and that bunk lock assembly
mechanism springs back freely within the C-channel.
4. Press DOWN on the control switch to lower the lower slotted trolleys and make sure that the upper
bunk trolleys are locked into place.
NOTE: If one or more of the trolleys is not locked into place, check all alignments and component installations.
Releasing the Upper Bunk Trolleys
1. Flip the locking mechanism tab (Fig. 21A) to the release position, where the long portion of the tab is
inside the C-channel. Repeat for the other locking mechanisms.
2. Press the UP switch until the lower trolley disengages the upper bunk from the locking mechanism.
3. Press the DOWN switch to bring down the upper bunk trolleys along with the lower trolleys.
