Lippert Components Happijac Oem Installation Manual

Rev: 10.22.19 Page 11
CCD-0001541
B
C
A

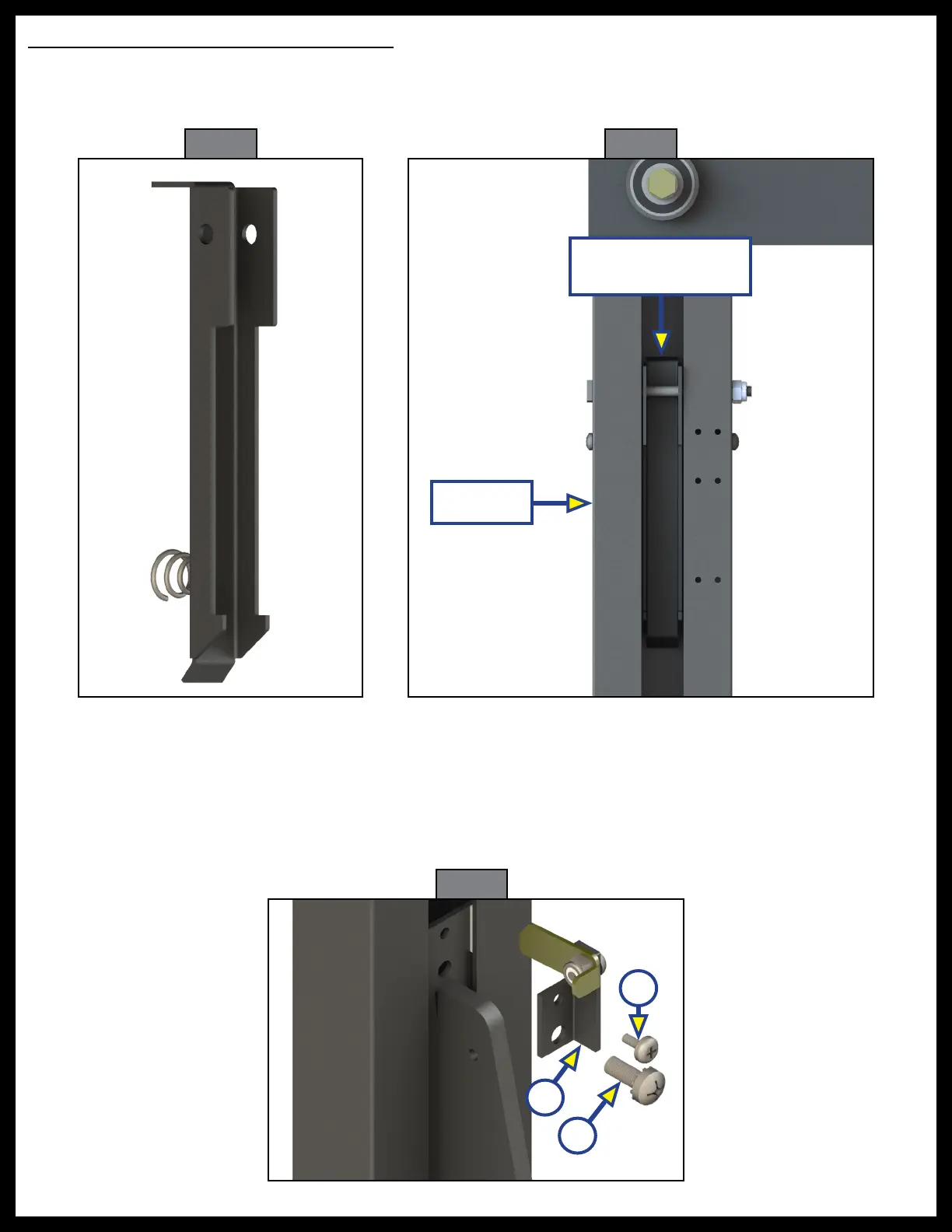

Fig. 17 Fig. 18
Automatic Bunk Lock-Up System Option
The Automatic Bunk Lock System utilizes a lock-up mechanism to push the upper trolleys into spring-
backed brackets (Fig. 17) inside the C-channels so the upper trolleys do not drift downwards. The brackets
come already bolted into the C-channels (Fig. 18).
Automatic Lock-up Mechanism Installation
NOTE: If the sofa/dinette brackets or lower bunk trolley tabs are required, make sure they are already
installed before beginning the lock-up mechanism installation.
1. Align the holes in the lock-up mechanism bracket (Fig. 19A) with the top two holes in the lower trolley.
2. Install the lower trolley set screw (Fig. 19B) in the lower hole of the trolley.
3. Install the bracket screw (Fig. 19C) in the upper hole of the trolley. Hand tighten the screw.
Spring-backed
bunk lock assembly
C-channel
Fig. 19
