Manual Operation
When bed(s)s/are not being manually raised or lowered, the brake MUST be set or the bed(s) will
drift down, causing possible personal injury, product or property damage.
2. Release the brake by pushing the lever to the OFF position as indicated on the label below the brake
lever. (Fig. 37A).
Fig. 36
Fig. 37
Cross-connecting
Shaft
A
Before releasing the brake in manual mode, make sure there are no obstacles below the bed(s), sofa or
dinette. Be prepared to apply the brake, if necessary, and make sure to move the brake back into the ON
position once the desired height is reached.

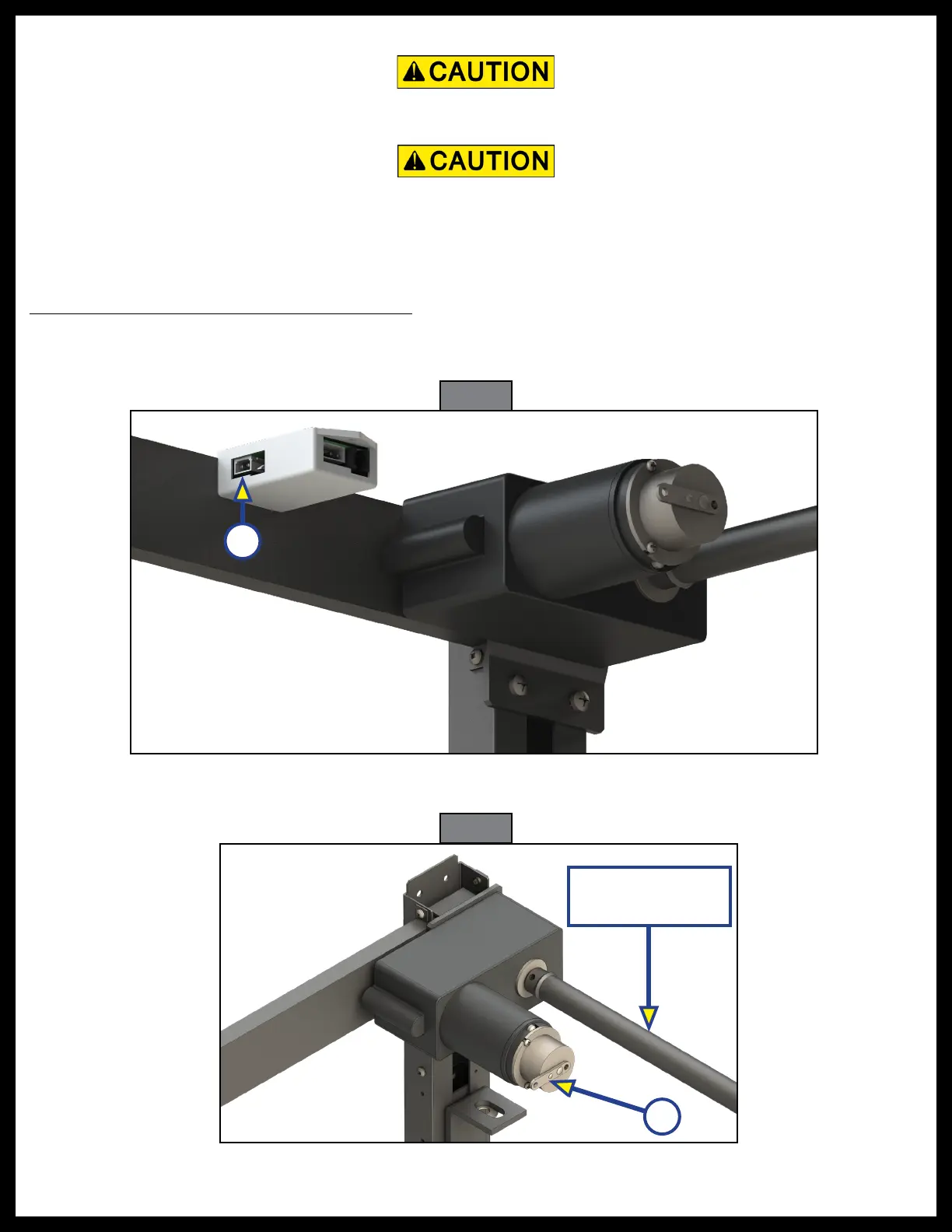

Manually Raise the Bed(s)/Sofa or Dinettes
Do the following in the order listed:
1. Unplug the motor harness (Fig. 36A) from the relay control module.
Moving parts can cut or crush. Keep clear of moving parts.
A
To Next Page
