Rev: 10.22.19 Page 9
CCD-0001541
Slotted Lower Trolley Sofa/Dinette Bracket
B
B
Fig. 14
A
A
When extended, the furniture support legs should be within
½
" of the coach floor when the bed lift reaches
its lowest travel limit. However, the support legs should not contact the coach floor prior to the bed lift
reaching its lowest travel limit. For sofa applications, support legs are required on both the seating and the
backrest of each sofa.

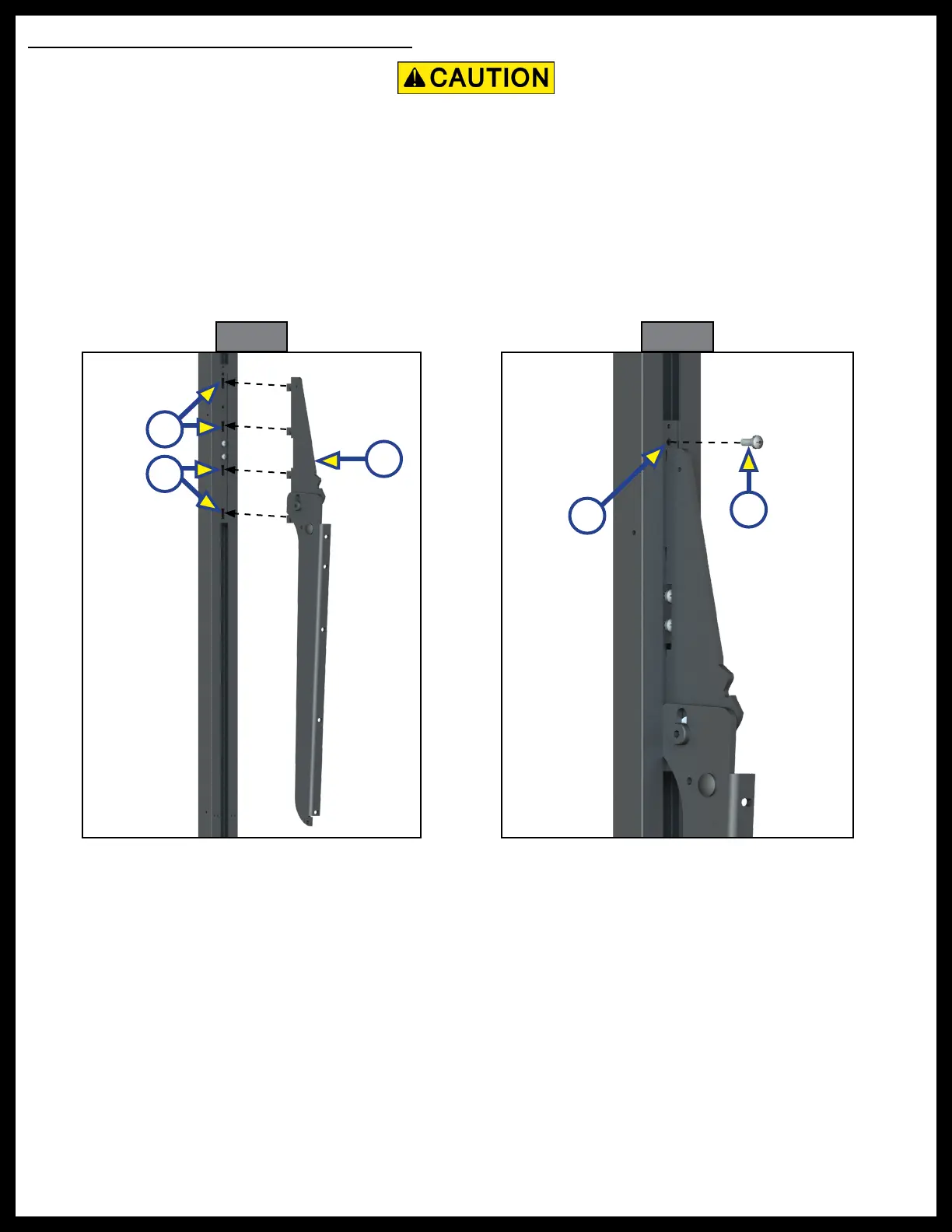

1. Line up the hooks on the base of the sofa bracket (Fig. 14A) with the slots of the lower trolley (Fig 14B),
then insert the hooks into the lower trolley.
2. Pull down on the bracket to lock it into the lower trolley.
B
The sofa/dinette brackets are not designed to bear the weight of the furniture. Any furniture
installed on the brackets MUST have the proper support legs attached to the furniture frame.
3. Install included 1/4" Phillips head locking screw (Fig. 15A) into the second hole in the lower trolley
directly above the sofa bracket (Fig. 15B) to secure the sofa bracket. If the optional automatic bunk
lock-up mechanism is installed, this screw will be installed during the automatic bunk lock-up
mechanism installation.
4. Repeat for steps 1 through 3 for the other lower trolleys.
Fig. 15
