Lippert Components Happijac User Manual

Rev: 07.10.19 Page 11
CCD-0001575
A
B
Fig. 16
6. Repeat for the other side.
7. Lift the bedrail rail off of the tab brackets and set aside.

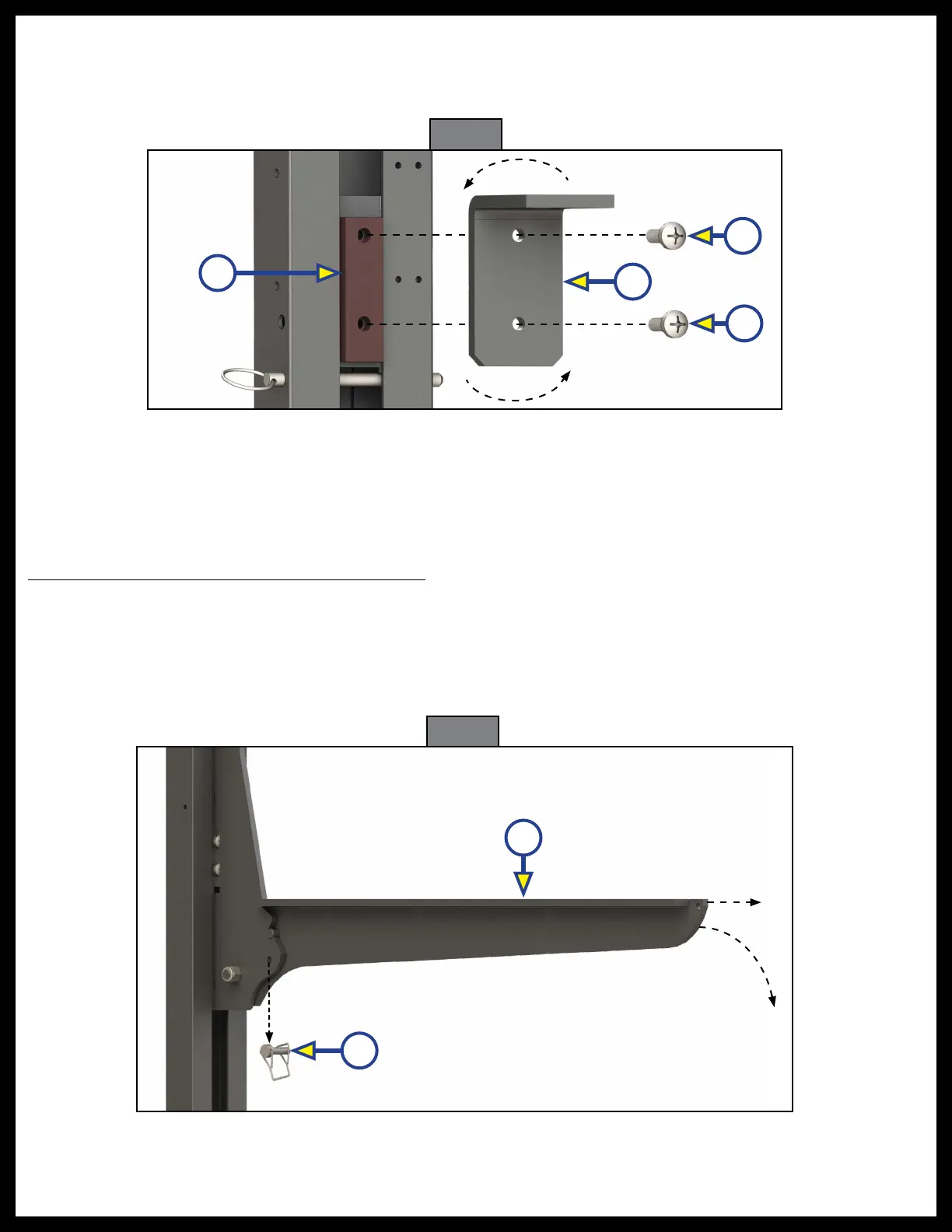

8. Remove the screws (Fig. 15A) securing the tab bracket (Fig. 15B) to travel block (Fig. 15C), then flip the
tab bracket 180 degrees.
C
A
A
B
Fig. 15
9. Re-attach the tab to the travel block.
10. Repeat for the other tab brackets.
11. Place the bedlift rail on the trolley tabs.
12. Secure the bedlift rail to the trolley tabs with the clevis pins and cotter (hair) pins.
13. Repeat steps 11 and 12 for the other side.
14. Replace the bed platform.
Lower Trolley Sofa/Dinette Bracket Removal
The sofa/dinette brackets can be removed from the lower trolleys and trolley tabs can be added to
accomodate a second bed platform. See Lower Bunk Trolley Tab Installation for instructions on adding
trolley tabs.
1. Remove the sofa/dinette configuration or bed platform from the support brackets.
2. Remove the locking pin (Fig. 16A) from the bracket, then lower the bracket arm (Fig 16B).
