Rev: 07.10.19 Page 14
CCD-0001575
Emergency Manual Operation
Before releasing the brake in manual mode, make sure there are no obstacles below the bed(s), sofa
or dinette. Be prepared to apply the brake, if necessary, and make sure to move the brake back into
the ON position once the desired height is reached.
Manually Raise the Bed(s)/Sofa or Dinettes
Do the following in the order listed:
1. Unplug the motor harness from the motor port (Fig. 20A) on the PnP control module.
NOTE: The PnP control module could be mounted in other locations close to the motor.
When bed(s)s/are not being manually raised or lowered, the brake MUST be set or the bed(s) will
drift down, causing possible personal injury, product or property damage.
2. Release the brake by pushing up on the brake release (Fig. 21A).

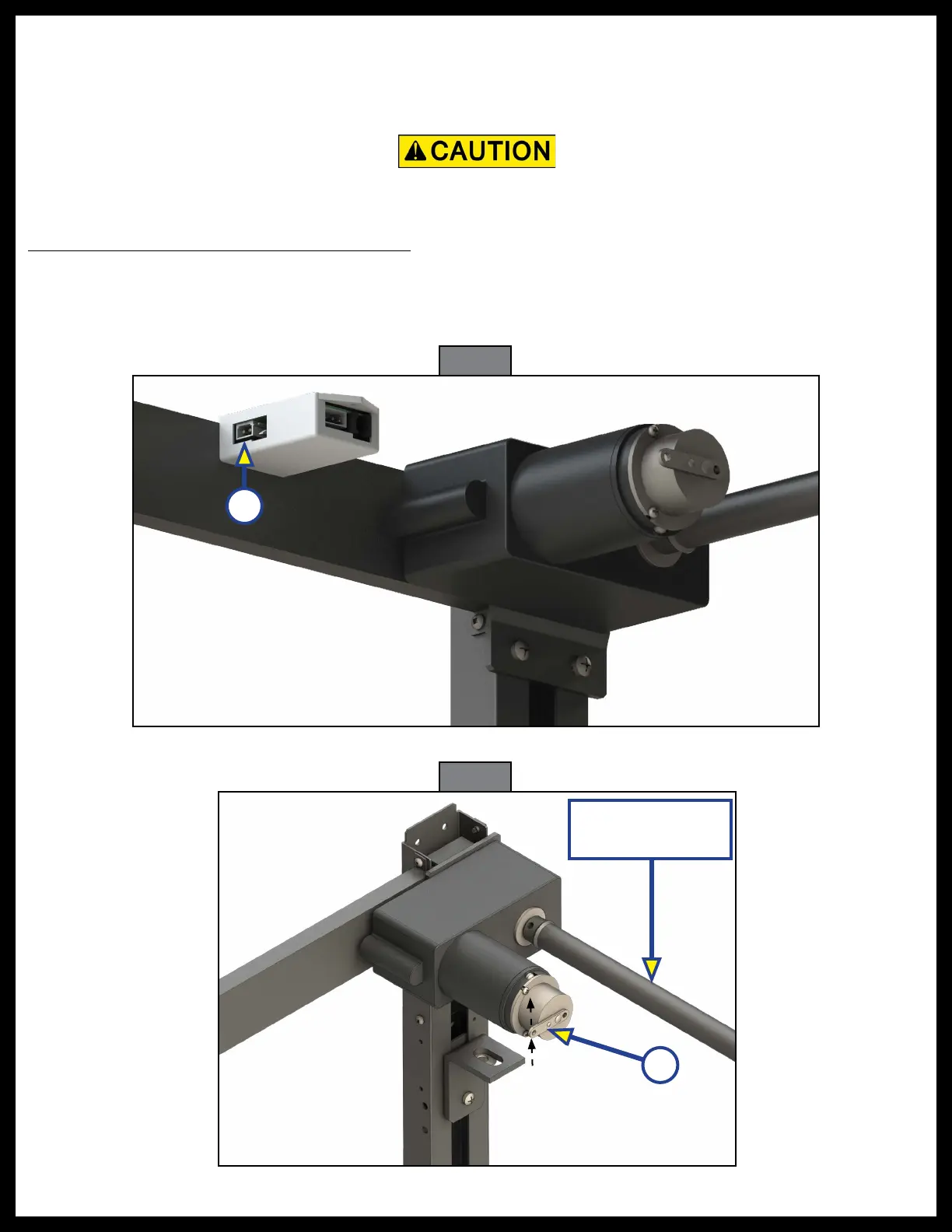

Fig. 21
Fig. 20
Cross-connecting
Shaft
A
A
