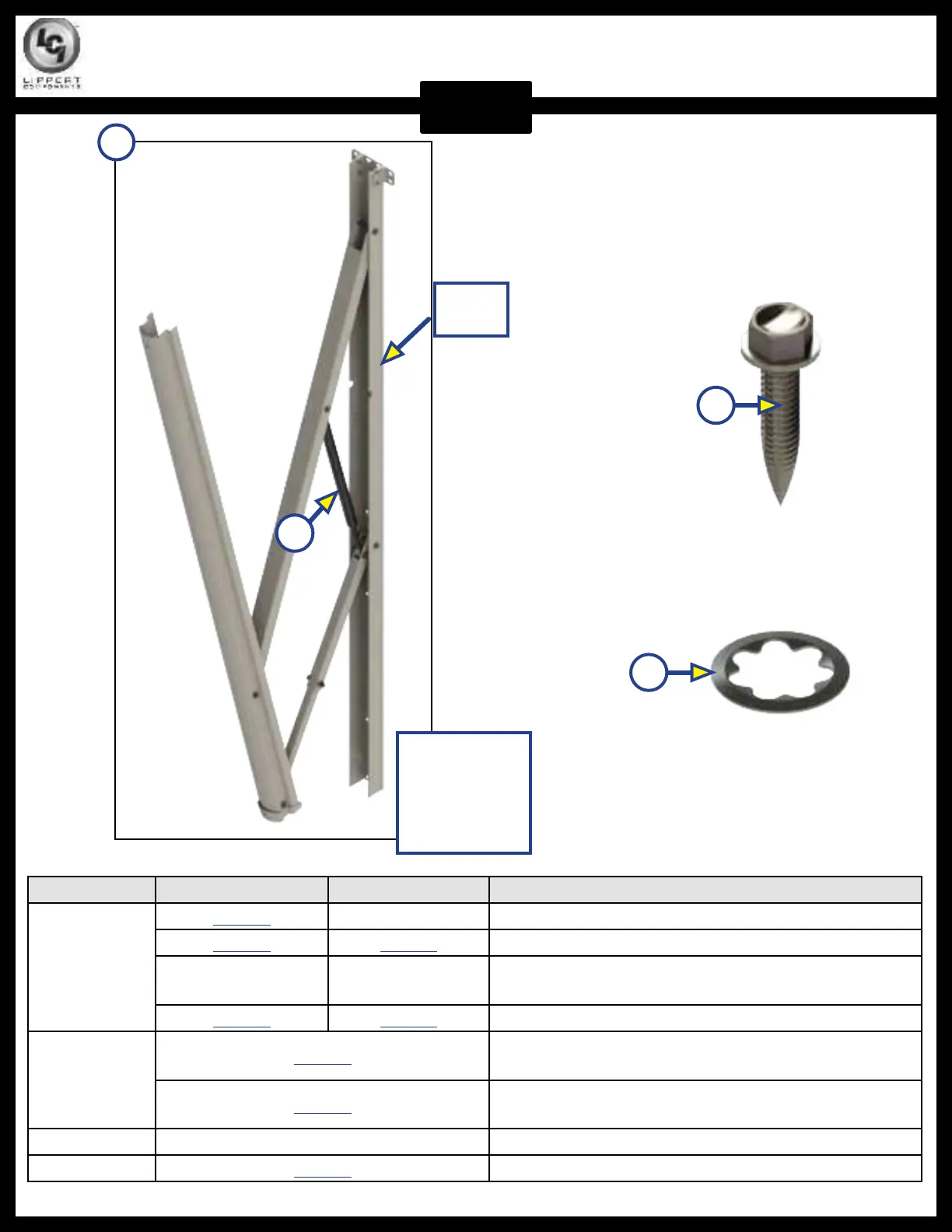

SOLERA POWER AWNING COMPONENTS
AWNINGS
A
AC
A
AB
AA
Mount
Arm
Z
Support Arm
Assembly
Measurement
Based on
Mount Arm
Callout White Part # Black Part # Description
Z
295742 295743 Support Arm Assembly (Short, 61")
260294 266169 Support Arm Assembly (Pitched, 66
⁄
")
362132
362133
Support Arm Assembly (Short Standard Fixed
Pitch, 60
½
")
281152 281154 Support Arm Assembly (Flat, 69")
AA
280343
Gas Strut; 26"; 124 lbs (for Short and Flat Arm
Assemblies)
260282
Gas Strut; 124 - 144 lbs (for Pitched Arm
Assemblies)
AB 348108 Screw (#14 - 10 x 1
¼"
(Arms-to-Coach)
AC
282484 Star Washer (for Gas Strut)
