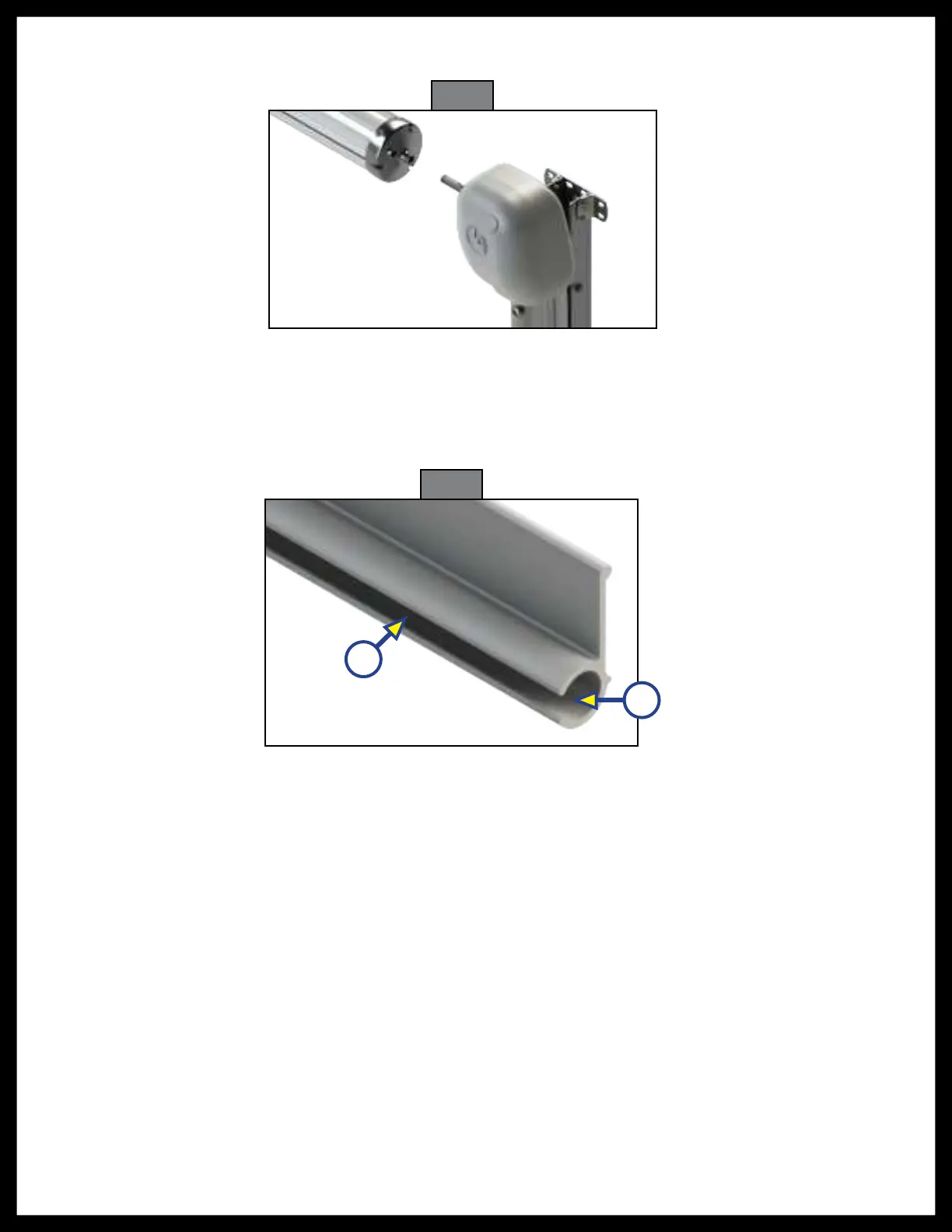

3. Insert the drive head assembly shaft into end cap (Fig. 3). Align the holes and secure with waxed screw. Repeat
process for idler head assembly at other end.
NOTE: Keep the head of the wax screw
⁄
" from fastened to avoid compromising the structural integrity of
the wax screw.
4. Use a screwdriver to spread open either end of the awning rail channel on the installation end (Fig. 4A).
5. To protect the fabric from damage during installation, file any sharp edges or burrs from the awning rail
channel.
6. Use silicone lubricant and spray the inside of the awning rail channel (Fig. 4B).
7. Remove the tape from the fabric. Unroll a small portion of fabric.
NOTE: The next steps will require three people: One to feed the polycord into the awning rail channel; two
to walk the support arm assemblies along the awning rail while the fabric slides into position.
8. Slide the polycord into the awning rail channel and walk the support arm assemblies and fabric down
the awning rail channel until the support arm assemblies are in line with the centerline marks made
previously.
Fig. 3
Fig. 4
B
A
