lippertcomponents.com 574-537-8900 Rev: 02.17 Solera
®
Power Awning
LED Light Rail Installation
NOTE: Solera Power Awning must be installed prior to
LED Light Rail installation.
1. Seal the back of the LED light rail.
2. Mount the LED light rail (Fig.12B) directly below the
awning rail (Fig.12A) and secure to the side of the unit.
3. Remove the wire covers in the drive side mount arm.
4. Route the light wire over the top of the upper brackets
on the drive side mount arm and run the light wire down
through the mount arm (Fig.12C).

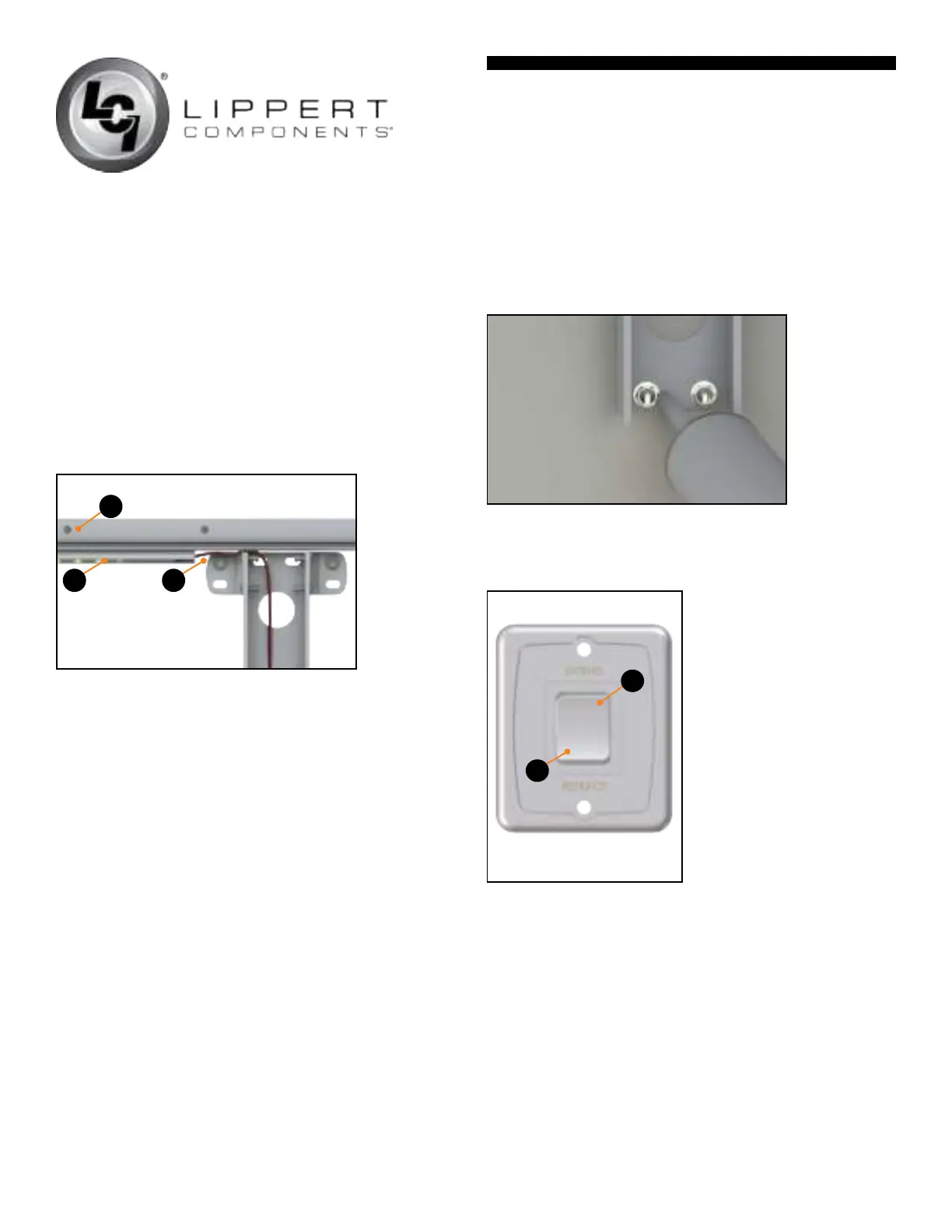

Fig.12
A
B C
5. Cut the power and ground wires to the desired length
and connect to the unit wiring. Make sure to connect the
red wire on the light side to the power wire on the unit
side and connect the black wire from the light side to the
ground wire from the unit side.
NOTE: The LED light rail must be wired through a 3 amp
maximum fused circuit.
Seal Wall Penetrations
1.
Seal all fastener locations and wire penetrations to
protect against water intrusion (Fig.13).
Fig.13
2.
Reinstall all wire covers into the support arm assemblies.
Operation
Fig.14
A
B
NOTE:
Some units may not use the LCI switch (Fig.14).
Extending the Awning
1.
Verify the RV battery is fully charged and connected to
the electrical system.
2.
Locate the locking latch on the side of the support arm,
if equipped, and unlock the latch.
