LiteOn EVO600043S2D2E20F User Manual

62
b5-27=1)
No.
Name
Setting Range
Default
b5-10
PID Output Reverse Selection
0, 1
0
0 : Reverse Disabled
Negative PID output will be limited to 0 and stop the drive.
1 : Reverse Enabled
The drive will run reversely if PID output is negative.
■ PID Feedback Low /High Detection
This detects whether the sensor or the sensor wiring is broken. Always use this function during
PID control so as to avoid machinery accelerating to the maximum frequency cause by PID
feedback low / high.
· PID Feedback Low
This will be detected when the value is lower than the set level for longer than the set time.
· PID Feedback High
This will be detected when the value is higher than the set level for longer than the set time.

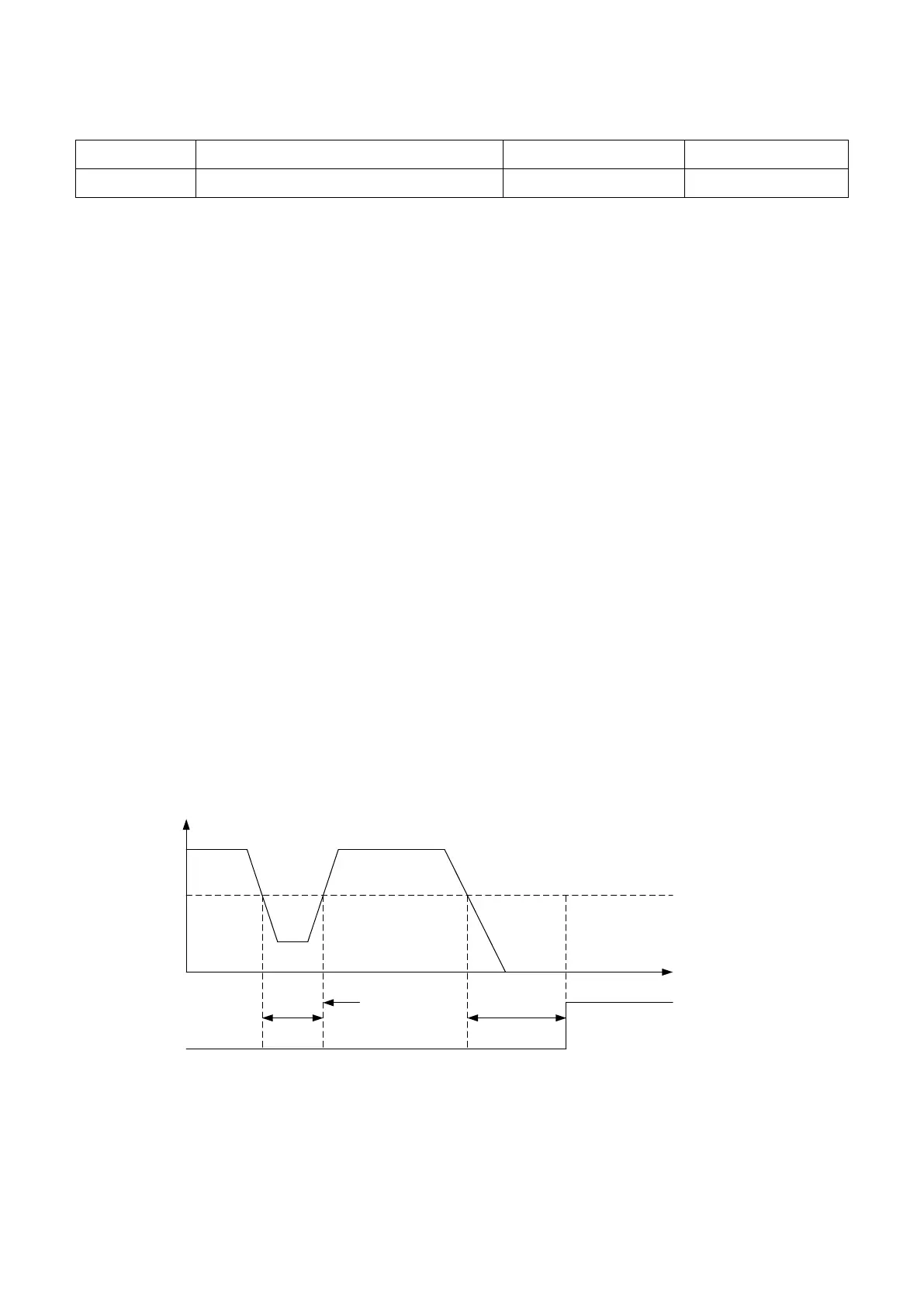

The PID Feedback Low Detection operation is illustrated below. Same way applies to PID
Feedback High Detection.
PID Feedback Value
Time
b5-12
PID Feedback Low
Detection Level
b5-13
PID Feedback Low
Detection Time
No FbL
detection
Fbl Detection
b5-13
PID Feedback Low
Detection TIme
Figure 6.18 PID Feedback Low Detection
Set b5-11 to b5-13 for PID Feedback Low Detection, and b5-11, b5-22, b5-23 for PID Feedback
