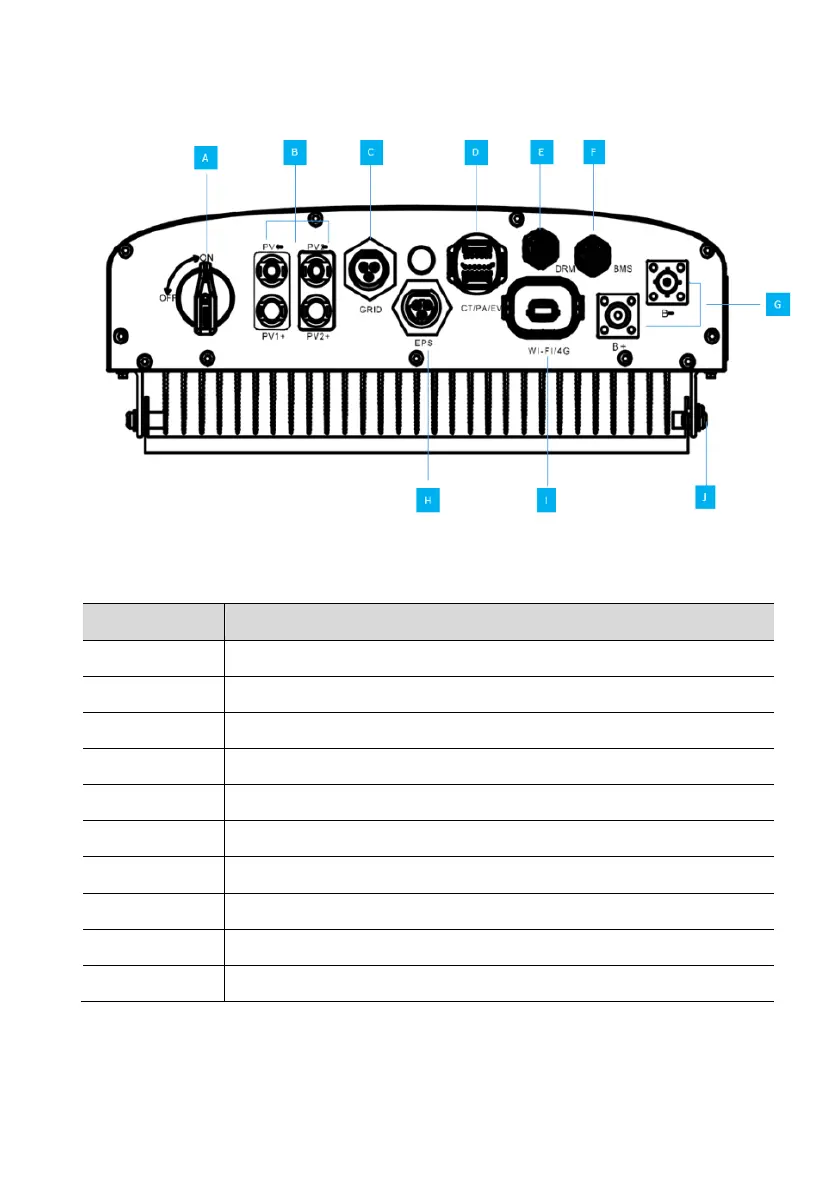

Figure 3. Terminals on the inverter
Position
Description
A
DC Switch (Optional)
B
PV Inputs(one or two pairs, depending on the model)
C
Grid output for connection to the utility grid
D
MULTI COM Port for CT/PA/EV connection
E
DRM Port
F
BMS Port
G
Battery Connectors
H
EPS Output for backup loads
I
Communication Port for Wi-Fi /4G (Optional) Stick
J
Additional Grounding terminal
