5.2 Installation Instruction
Two types of Applications:
• There are two ways for hybrid inverter to be installed with battery. One called "Split
Application" and the other called "All-in-one Application".
• For Split Application, the inverter can be matched with low voltage lithium battery from
LIVOLTEK or Pylon or Lead acid battery.
• For All-in-one Application, the inverter must be matched with LIVOLTEK lithium
battery, and also need purchasing a Middle Cover Kit which can help hiding the wires to
make the whole system tidy and safe.
• For All-in-one Application, there are three units (inverter, battery and middle cover kit)
packaged separately. Please check and contact your distributor immediately in case of
any damaged or missing components.

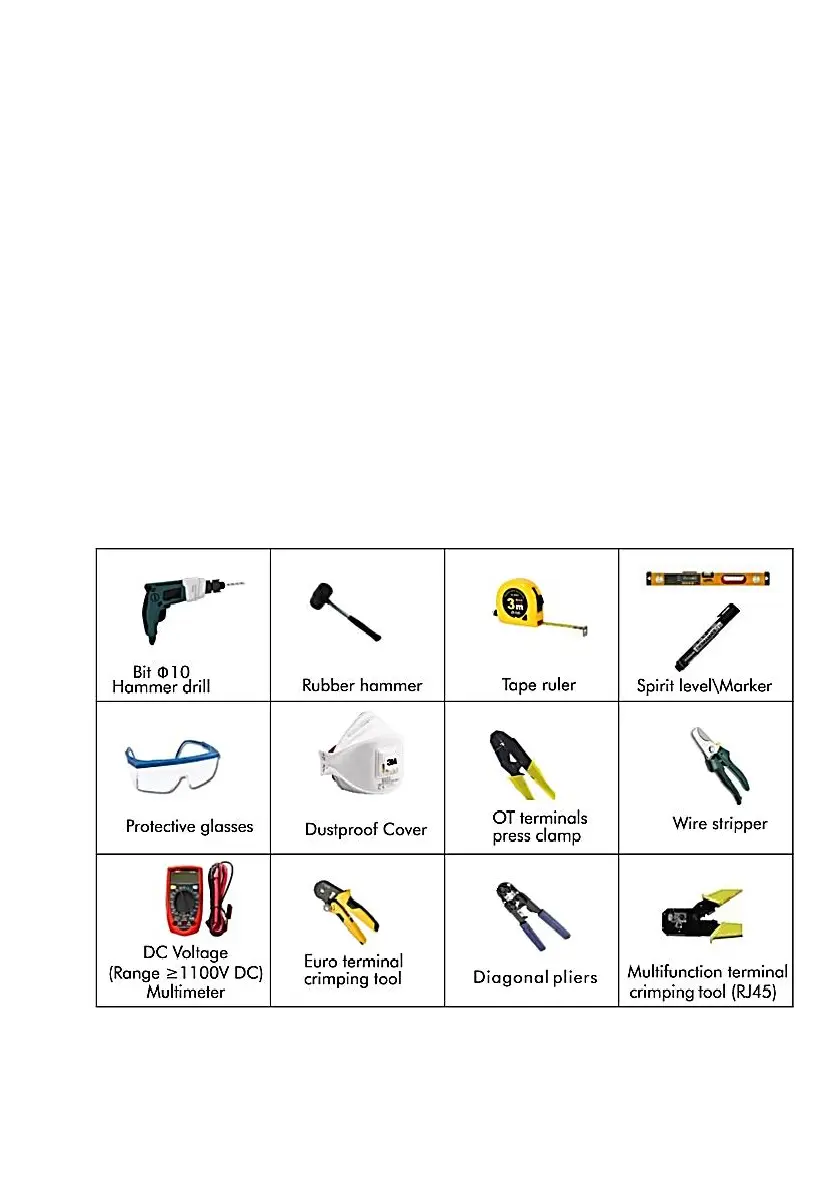

Installation Tools
Installation tools recommended but not limited to the following ones. If necessary, use
other auxiliary tools on site.
