the cable with a screwdriver.
• Apply paint to the grounding terminal to ensure corrosion resistance.

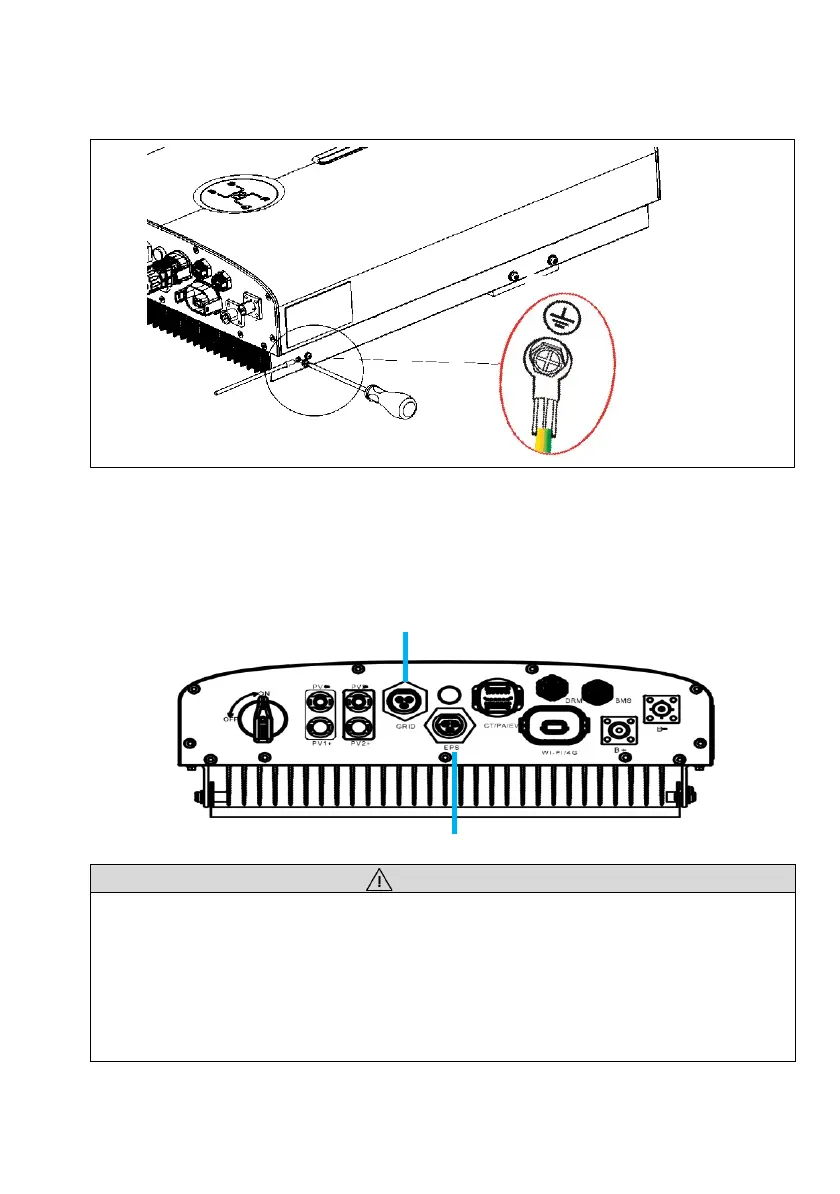

6.3 Grid Cable Connection
The hybrid inverter has two AC output terminals, one is grid output for connecting grid
and the other is EPS (emergency power supply) output for connecting critical loads.
ON Grid Output
OFF Grid Output for critical loads
• On grid terminal and off grid terminal CAN NOT directly connect together.
• Off Grid terminal (EPS output) CAN NOT connect to grid.
• When you want to use both on gird power and backup power, please connect both
with Grid output and EPS output.
• When you want to use on gird only, please connect with Grid output and float
EPS output.
