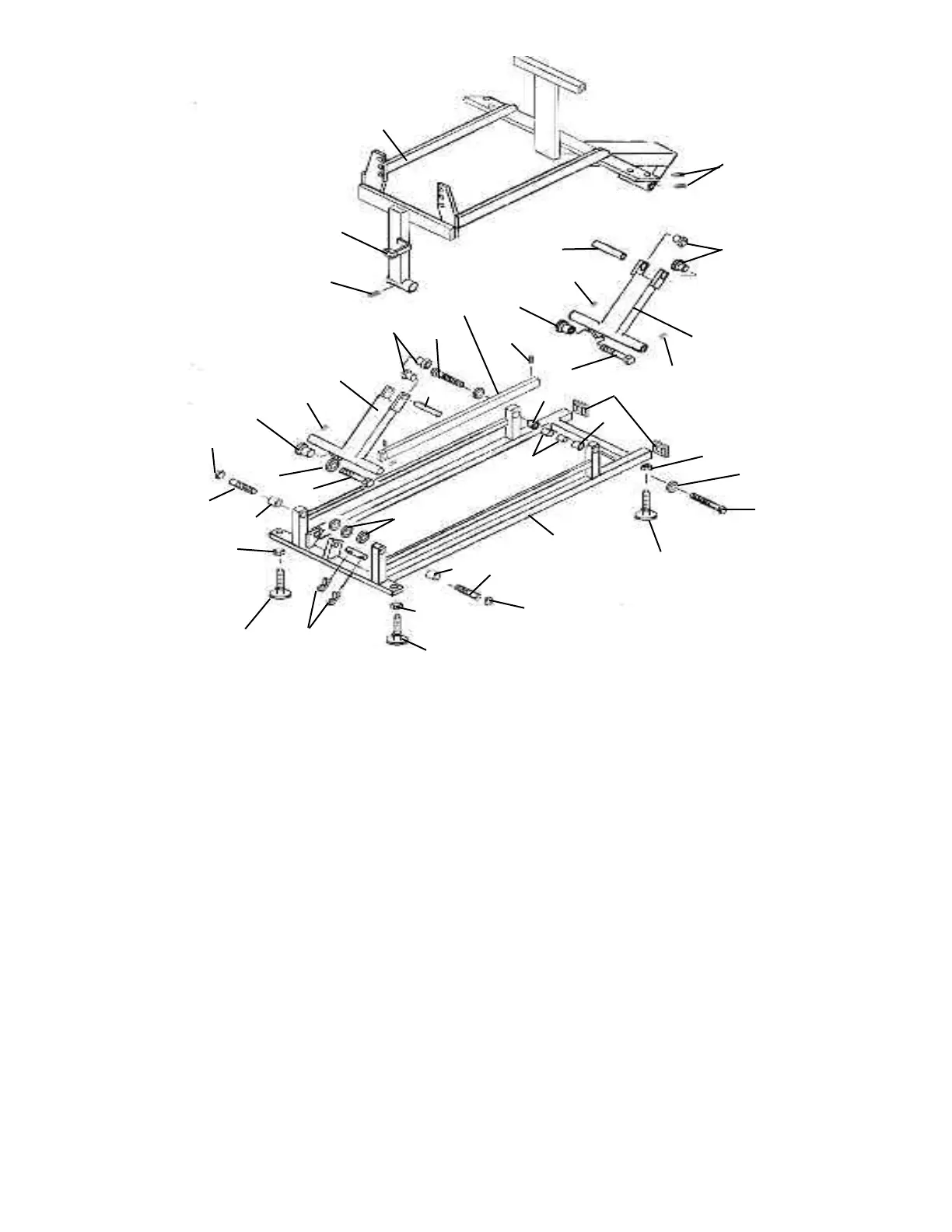

Lloyd 402 Flexion Elevation - Base Frame Assembly

Page 23
15
17
15
14
14
22
20
21
15
14
13
19
19
5
18
11
7
5
5
6
5
11
4
12
13
3
4
12
1
12
2
8
9
9
10
22
20
21
ITEM PART N0. DESCRIPTION QTY.
1 56380 UPPER MAIN FRAME ASS’Y 1
2 54270 BASE FRAME ASS’Y 1
3 54278 TIE BAR 1
4 54145 CONNECTION PIN, ½ RD. X 3 7/8 2
5 22888 CAP BUSHING 6
6 54155 DRIVER ARM ASS’Y (FRONT) 1
7 54303 DRIVER ARM ASS’Y (BACK) 1
8 24414 CAP 2
9 22900 BRASS BUSHING, 7/8 ID 2
10 30610 SLEEVE, ½ ID X 7/8 OD 4
11 20510 HEX.HD.BOLT, ½-20 UNF X 1 ¼ 2
12 21910 SET SCREW, 5/16-18 UNC X 1/4 5
13 20542 HEX.HD.BOLT, ½-20 NF X 2 ¼ 2
14 21210 HEX.NUT, 3/8-16 NC 4
15 20372 ELEVATOR BOLT, 3/8-16 NC X 1 ½ 4
16 54143 CYLINDER PIN, ½ RD. X 3 5/8 1
17 22640 COTTER PIN 3/32 X 1.00 2
18 21912 FLAT WASHER, PLASTIC, ½ ID X 1 ¼ OD 1
19 21910 FLAT WASHER, ½ ID X 1.00 OD 5
20 56422 PIVOT STUD, ½ RD. X 1 5/8 2
21 22886 BRASS BUSHING, 1/2 ID X 5/8OD X 1 2
22 23428 BUTTON CAP 2
23 22110 SET SCREW, 1/4-20 UNC X 1/4 4
24 54351 ACCUMULATOR HANGER ASS’Y 1
BASE FRAME ASSEMBLY
23
23
23
24
