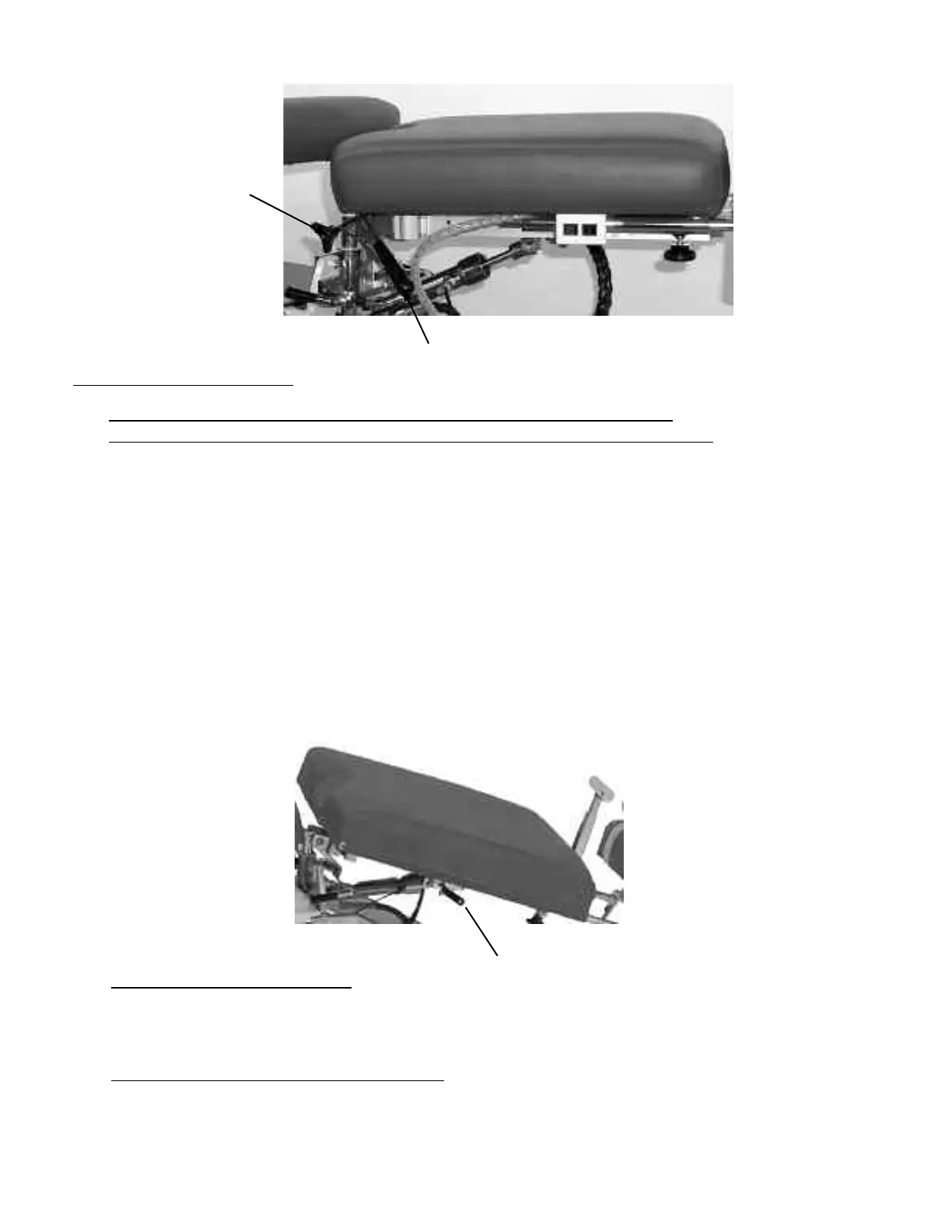

To cock the Drop Pelvic Cushion:
CAUTION: The drop cushion tension should be checked and tested before adjusting
patient. KEEP FINGERS AWAY FROM BOTTOM OF CUSHION TO AVOID PINCHING.
1) Pull up on the Cocking Handle (No. 1) to cock cushion
2) Adjust the tension on cushion by turning the Tension Control Knob (No. 2)
a. Right Side: Clockwise - Decrease Tension Counterclockwise - Increase Tension
b. Left Side: Clockwise - Increase Tension Counterclockwise - Decrease Tension
Pelvic Manual Drop
#2 Tension Control Knob
#1 Cocking Handle
Page 13
Pelvic Rotation (Optional)
To Unlock the Pelvic Rotation
1) Support the edge of the Pelvic Cushion
2) Slide the Rotation Lock Handle (No. 1) towards the rear to unlock.
To Lock the Pelvic Cushion from Rotating
1) Place the Pelvic cushion into it’s horizontal position.
2) Slide the Lock Handle (No. 1) forward to lock.
# 1 Rotation Lock Handle
PELVIC ROTATION
