Electronic Height Adjustment (EHA)

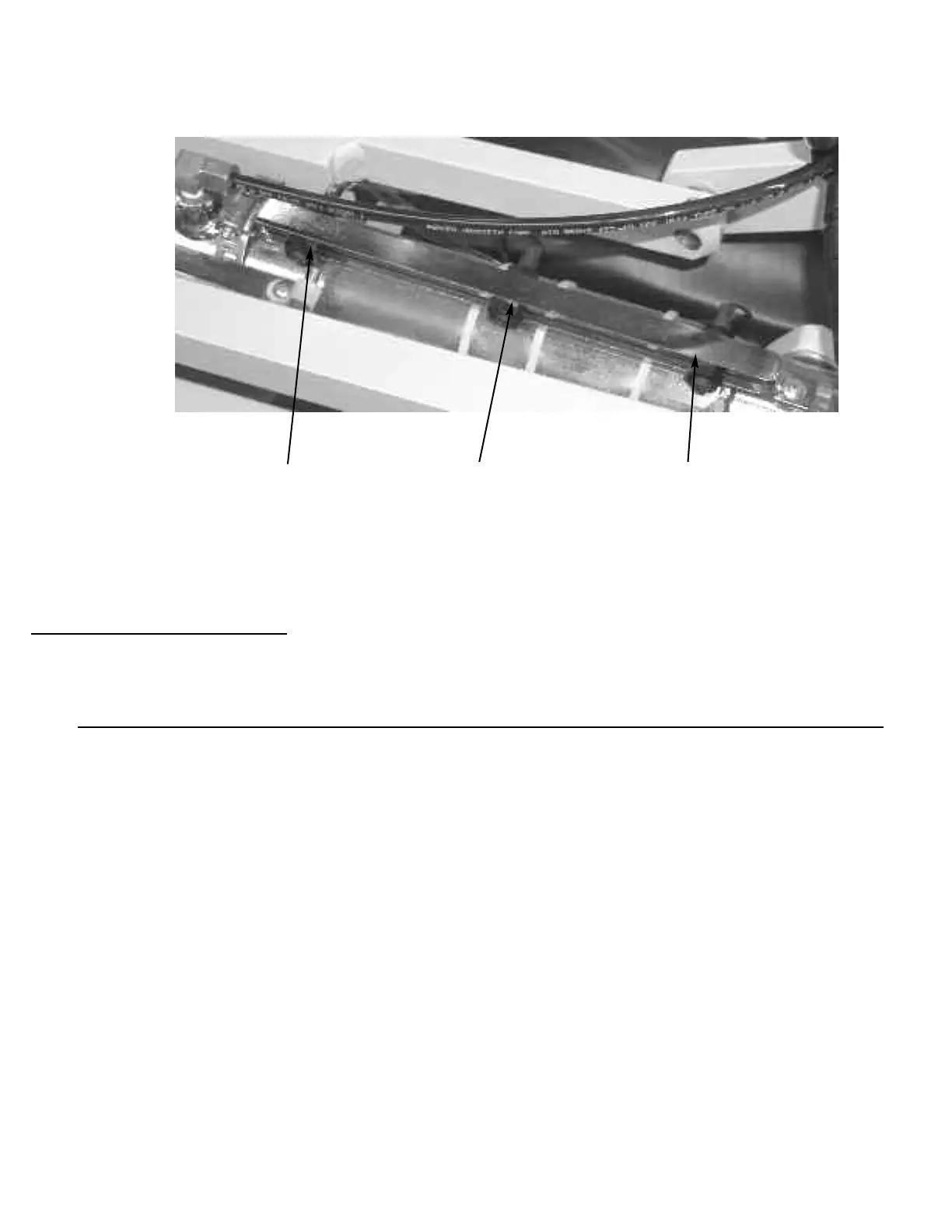

#1 UpperLevel
Adjustment
#2 Mid-Level
Adjustment
#3 Lower Level
Adjustment
To Set Programmed Heights for EHA:
To Set Upper Level:
1. Loosen Nut on the Upper Level Adjustment (No. 1) and slide towards the head end of table to increase height.
CAUTION: BE CAREFUL NOT TO SET TO FAR FORWARD AS THIS CAN CAUSE MOTOR TO KEEP RUNNING.
Slide towards the foot end of the table to decrease height. Once height is obtained simply tighten nut to set level.
To Set Mid-Level:
1. Loosen Nut on the Mid-Level Adjustment (No. 2) and slide towards the head end of table to increase height.
Slide towards the foot end of the table to decrease height. Once height is obtained simply tighten nut to set level.
To Set Lower-Level:
1. Loosen Nut on the Lower-Level Adjustment (No. 3) and slide towards the head end of table to increase height.
Slide towards the foot end of the table to decrease height. Once height is obtained simply tighten nut to set level.
