Lloyd 402 Flexion Elevation - Electrical

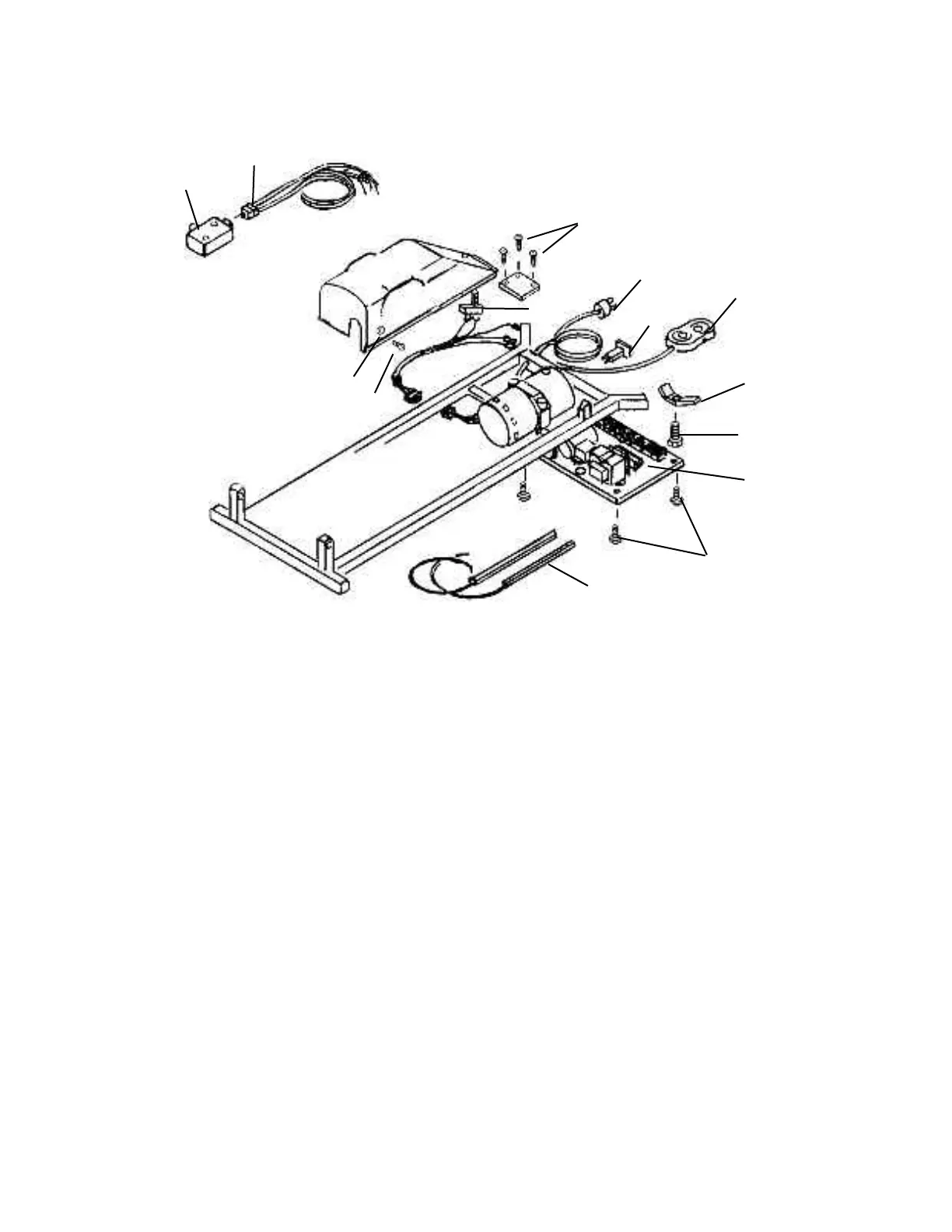

ELECTRICAL ASSEMBLY
Page 35
ITEM PART N0. DESCRIPTION QTY.
1 44974 ELECTRICAL UNIT ASS’Y, (AUTO DROP) 1
2 52073 CLAMP 1
3 20022 HEX HD BOLT, ¼-20UNC X 1
4 30910 HEIGHT CONTROL PEDAL 1
5 35216 CIRCUIT BREAKER,8 AMP 1
6 45199 POWER CORD 1
7 21982 PAN HD MACHINE SCREW, #8-32UNC X ½ 4
8 699195 COVER 1
9 21995 PAN HD MACHINE SCREW, #10-24UNC X ½ 3
10 21071 TEE NUT, #10-24UNC 1
11 38040 LIMIT SWITCH 1
12 44096 TAPEZ SWITCH ASS’Y – 12” 1
13 45202 CABLE ASSEMBLY 1
14 44029 SWITCH BOX ASS’Y 1
9
11
9
10
6
4
5
2
3
7
12
1
13
14
