Lloyd 402 Flexion Elevation - T-Pelvic Assembly

Page 32

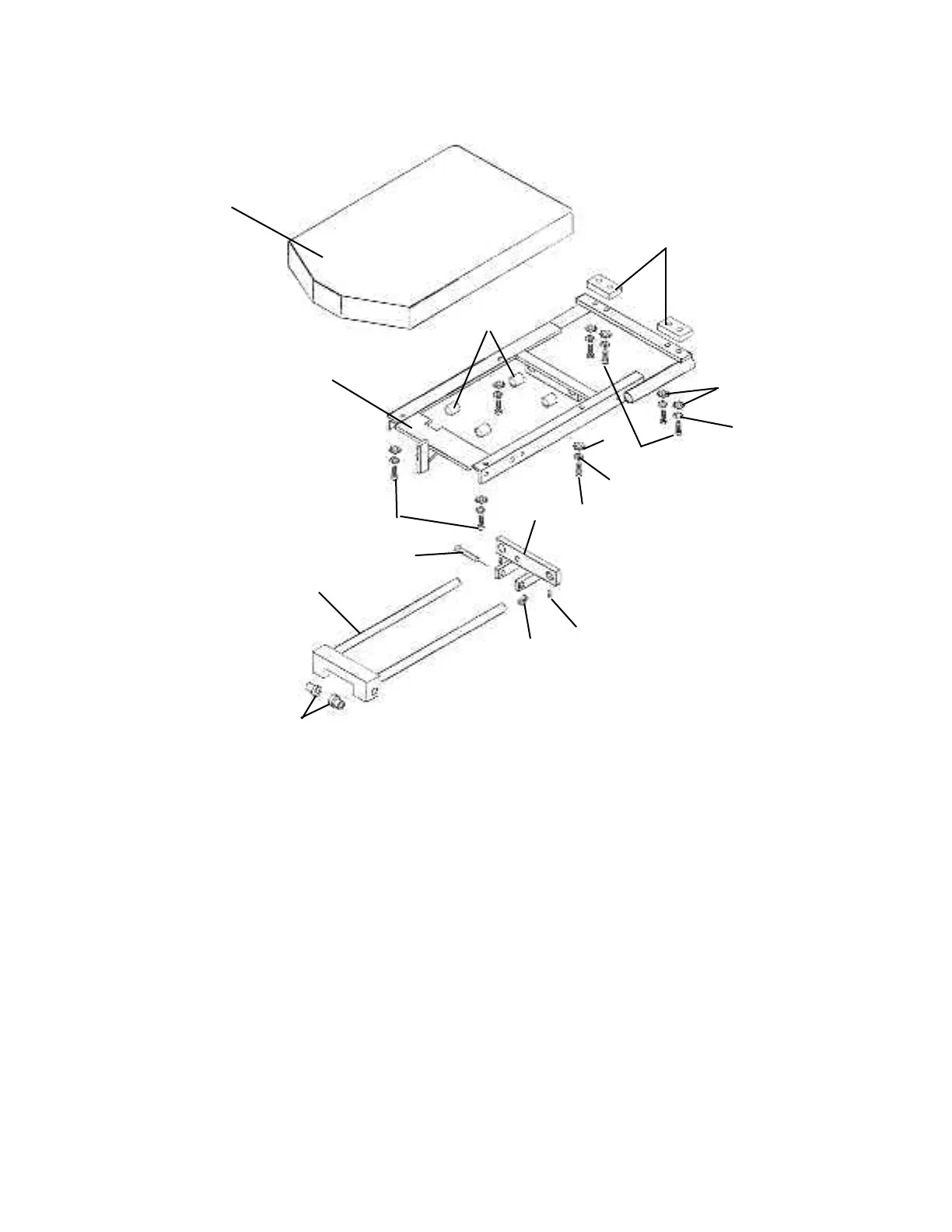

T-PELVIC ASSEMBLY
NON-ROTATION
1
14
13
10
11
5
2
12
12
9
8
7
3
2
4
ITEM PART N0. DESCRIPTION QTY.
1 40285 PELVIC CUSHION ASS’Y 1
2 22888 CAP BUSHING, BRASS 2
3 58542 GUIDE FRAME ASS’Y 1
4 58527 CARRIAGE FRAME ASS’Y 1
5 22850 BUSHING, NYLON, ¾ ID X 7/8 OD X ¾ 4
6 22615 CLEVIS PIN, 5/16 X 2 1
7 22639 COTTER PIN, 3/32 X ½ 1
8 22250 SET SCREW, 5/16-24 UNF X ½ 3
9 58594 SLIDE BRACKET ASS’Y 1
10 21620 WASHER, FLAT, ¼ ID X 9/16 OD 8
11 21630 STAR WASHER, ¼ ID 8
12 20021 BOLT, SOCKET HD. ¼-20 UNC X 1 4
13 20023 BOLT, HEX HD. ¼-20 UNC X 1 ¼ 4
14 53264 SPACER, 3/8 X 1 ¼ X 2 3/8 2
11
10
