The following sections provide explanations on the operation of your Lloyd table. All references to right and
left, will be in relationship to your view, as you face table from the foot end. All references to the front will
refer to the head end of the table. Those to the rear will refer to the foot end.
Head Cushion
The head cushion is designed to provide a multitude of positions & operations through our Add On Paper
(AOP), Deluxe Headpiece and optional Total Dimension Flexion
T
M
Headpieces.

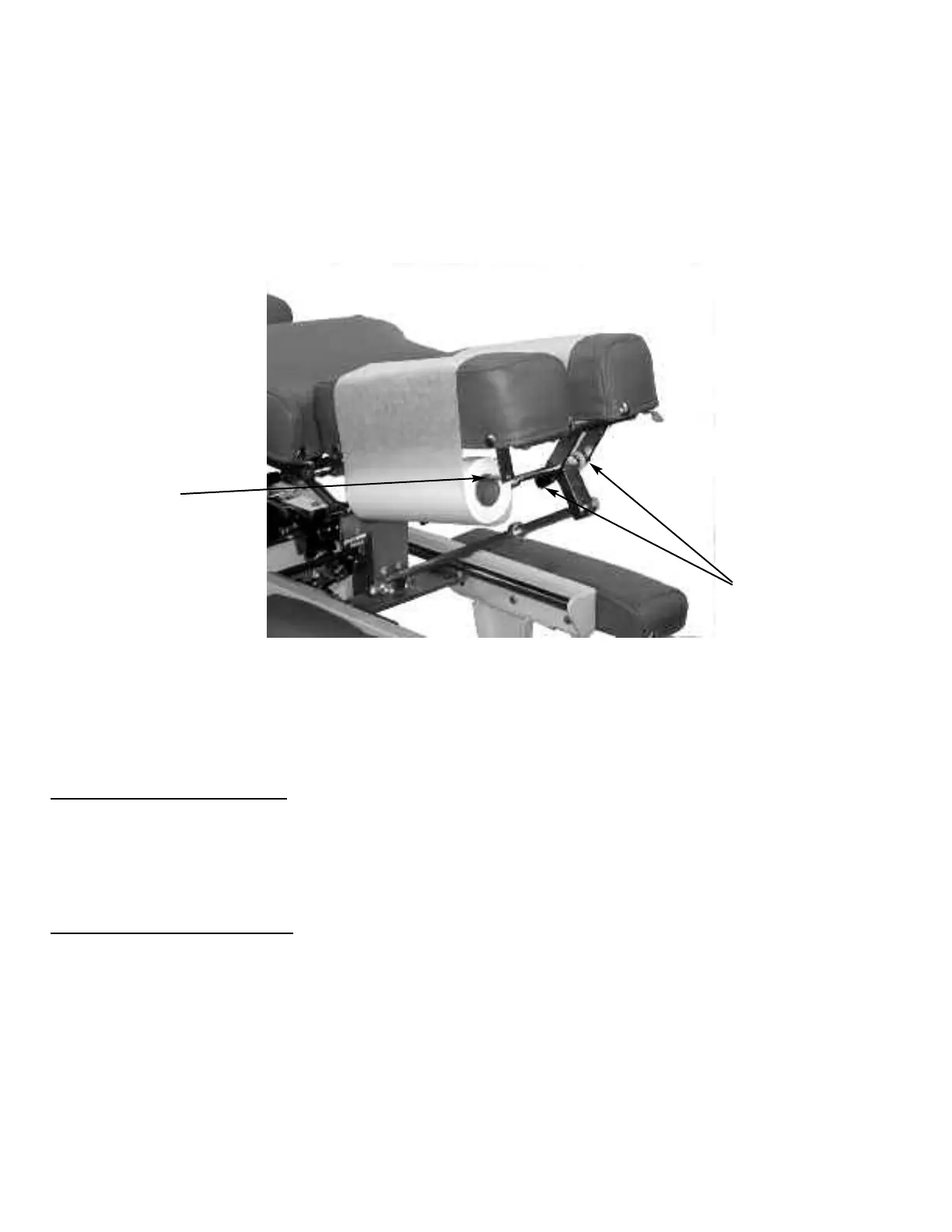

Paper Hanger #2
Lock Handle #1
To raise the tilting headpiece:
1 Lift on the bottom front edges of the cushion.
2 Release when desired height is obtained, the cushion will automatically lock into position.
To lower the tilting headpiece:
1 Support the corner edge of the cushion.
2 Lift the Locking Handle (#1) to release.
3 Gently lower the cushion to the desired height.
4 Release the Lock Handle (#1) and then the cushion to lock.
Tilting Head Adjustment
Page 3
To Next Page
