Lloyd 402 Flexion Elevation - Deluxe Head Cushions

Page 27

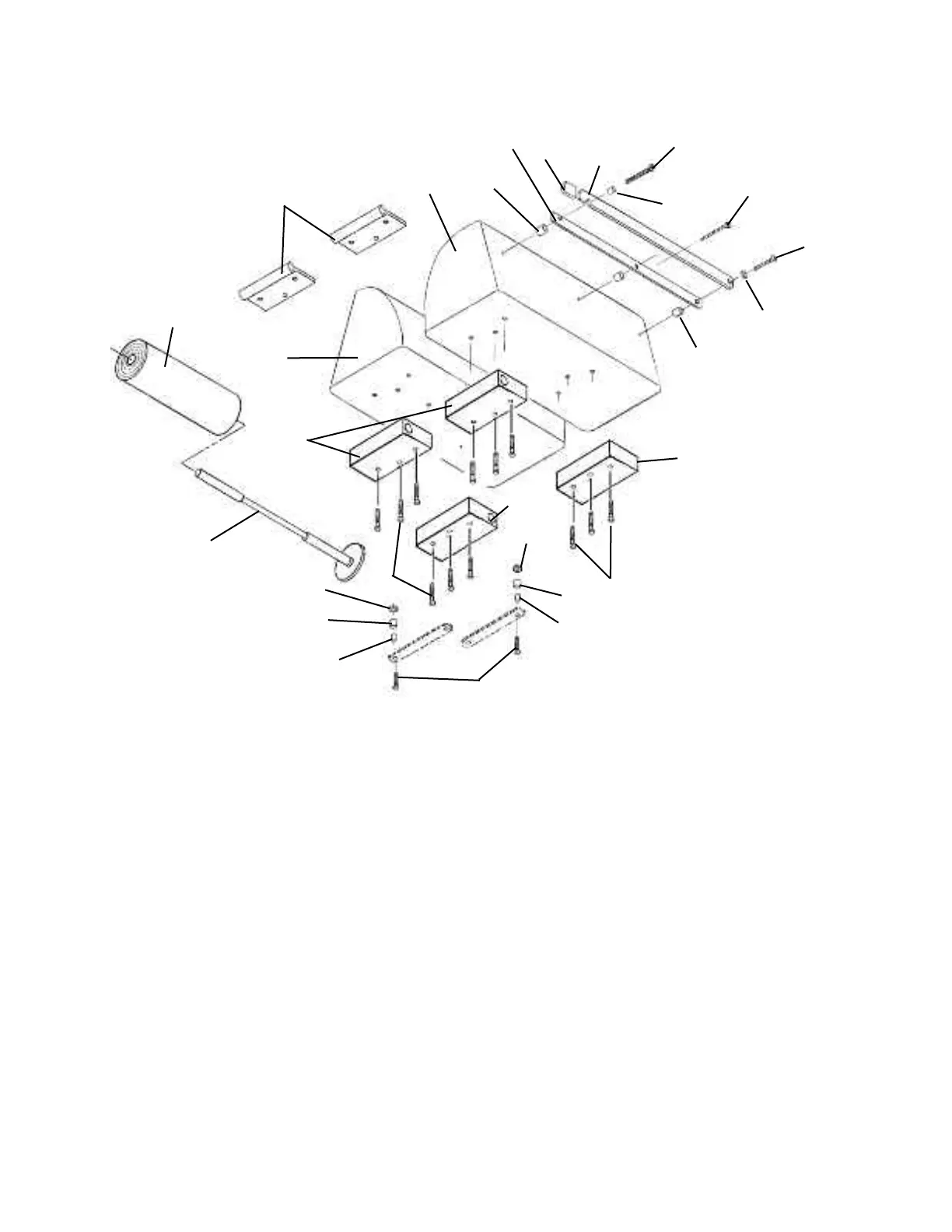

DELUXE HEAD CUSHION ASS’Y
2
1
8
3
13
12
11
17
10
14
14
16
4
7
19
6
15
5
18
19
15
18
6
20
15
9
7
ITEM PART NO. DESCRIPTION QTY
1 40110 CUSHION, HEAD - LEFT HAND 1
2 40130 CUSHION, HEAD - RIGHT HAND 1
3 29999 HEADREST PAPER 1
4 30400 SLIDE BLOCK, FRONT 2
5 22009 OVAL HD. MACHINE SCREW, #10-24 NC X 1 1/2 2
6 57174 SPACER, 3/16 ID X ½ OD X 5/8 2
7 30401 SLIDE BLOCK, REAR 2
8 24235 GUARD, CUTTING BAR 2
9 50750 INSIDE CUTTING BAR 1
10 50770 OUTSIDE CUTTING BAR 1
11 22550 RD. HD. WOOD SCREW #14 X 2.00 1
12 22510 FLAT HD.WOOD SCREW, #9 X 1 1/2 1
13 22522 RD. HD.WOOD SCREW, #9 X 2.00 1
14 50720 SPACER, PAPER CUTTER, 3/8 ID X 1/2 OD 3
15 22860 BUSHING, 3/16 ID x ¼ OD 3
16 50778 PAPER HANGER ASS’Y, w/ Washer 1
17 21610 FLAT WASHER, 3/16 ID X 1/2 OD 1
18 22003 OVAL HD. MACHINE SCREW, #10 - 24 NC X 3/4 12
19 21510 FLAT WASHER, 3/16 ID X ½ OD 2
20 57155 GUIDE TUBE ASS’Y, FRONT 2
NOTE: ITEM #20 IS USED WITH THE
STRAIGHT DROP HEAD CUSHION
