Lloyd 402 Flexion Elevation - T-Handle Assembly

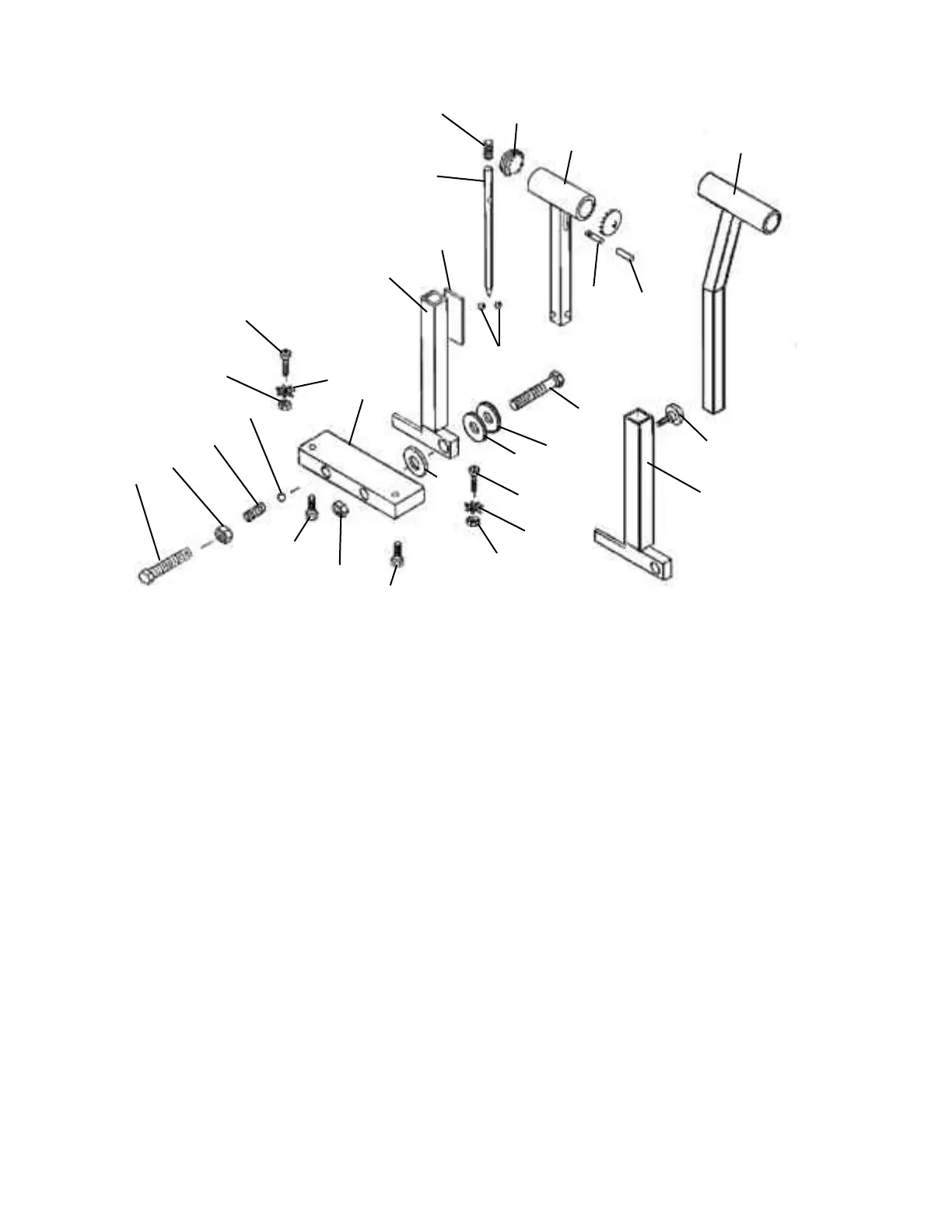

T-HANDLE ASSEMBLY
1B
1A
9
4
12
16
11
10
2A
15
5
18
2B
17
8B
19
20
13
13
6
7
14
10
8B
20
19
8
7
8A
3
ITEM PART N0. DESCRIPTION QTY.
1A 58406 T-HANDLE, (SHORT) 1
1B 58405 T-HANDLE, (LONG) 1
2A 58400 GUIDE TUBE, (SHORT) 1
2B 58398 GUIDE TUBE, (LONG) 1
3 58411 MOUNTING BLOCK 1
4 58405 LOCK ROD 1
5 20507 HEX HD. BOLT, 7/16-14 UNC X 3 ¼ 1
6 20503 HEX HD. BOLT, 7/16-14 UNC X 1 ¼ 1
7 21290 HEX NUT, 7/16-14 UNC 2
8A 20054 HEX HD. BOLT, ¼-20 UNC X 2 (STD. PELVIC) 2
8B 22036 SOCKET HD. MACHINE SCREW, 1/-20 UNC X 1 ¼ (DROP PELVIC) 2
9 30732 COMPRESSION SPRING, ¼ ID X 1 3/8 1
10 22700 STEEL BALL, 3/8 2
11 52190 COCKING PEG, ¼ RD. X 1 ¾ 1
12 24413 CAP 2
13 21912 FLAT WASHER, PLASTIC, ½ ID X 1 ¼ OD 2
14 30721 COMPRESSION SPRING 1
15 31160 STICKER 1
16 24415 END CAP 2
17 21910 FLAT WASHER, ½ ID X 1 OD 1
18 24181 LOCK KNOB 1
19 21010 HEX NUT, ¼-20 UNC (DROP PELVIC) 2
20 21630 STAR WASHER, ¼ ID 2
Page 70
