Lloyd 402 Flexion Elevation - Page 74

ITEM PART N0. DESCRIPTION QTY.
1 58565 T-HANDLE ASS’Y (wo/switch) 1
2 24413 END CAP 2
3 24415 PLASTIC CAP 1
4 52190 RELEASE PEG 1
5 30732 COMPRESSION SPRING, ¼ ID X 1 3/8 1
6 58405 LOCK ROD 1
7 22700 STEEL BEARING, 3/8 DIA 3
8 58400 GUIDE ASS’Y 1
9 20507 BOLT, HEX HD, 7/16-14 UNC X 3 ¼ 1
10 21910 WASHER, FLAT, ½ ID X 1.00 1
11 21912 WASHER, FLAT, PLASTIC, .516 ID X 1 ¼ OD 1
12 20054 BOLT, HEX HD, ¼-20 UNC X 2 2
13 58411 MOUNTING BLOCK 1
14 21290 HEX NUT, 7/16-14 UNC 1
15 30721 COMPRESSION SPRING, .175 ID X 1 1/8 1
16 20503 BOLT, HEX. HD, 7/16-14 UNC X 1 ¼ 1
17 21010 HEX NUT, ¼-20 UNC 2
18 21630 WASHER, STAR, ¼ ID 2
19 58155 MOUNTING RAIL 1
20 58574 GUIDE PLATE ASS’Y 1
21 58569 GUIDE ROD ASS’Y 1
22 24407 PLASTIC CAP 1
23 20007 BOLT, HEX HD, ¼-20 UNC X 5/8 2
24 58573 SLIDE BLOCK 2
25 58571 MOUNTING PLATE 2
26 24022 HANDLE 2
27 22036 FLAT HD MACHINE SCREW, ¼-20 UNC X 1 ¾ 2
28 21961 SOCKET HD MACHINE SCRES, #10-32 UNC X 3/8 4
29 20010 BOLT, HEX HD, ¼ - 20 UNC X ¾ 2
30 21292 NUT, JAM, 7/16-14 UNC 1

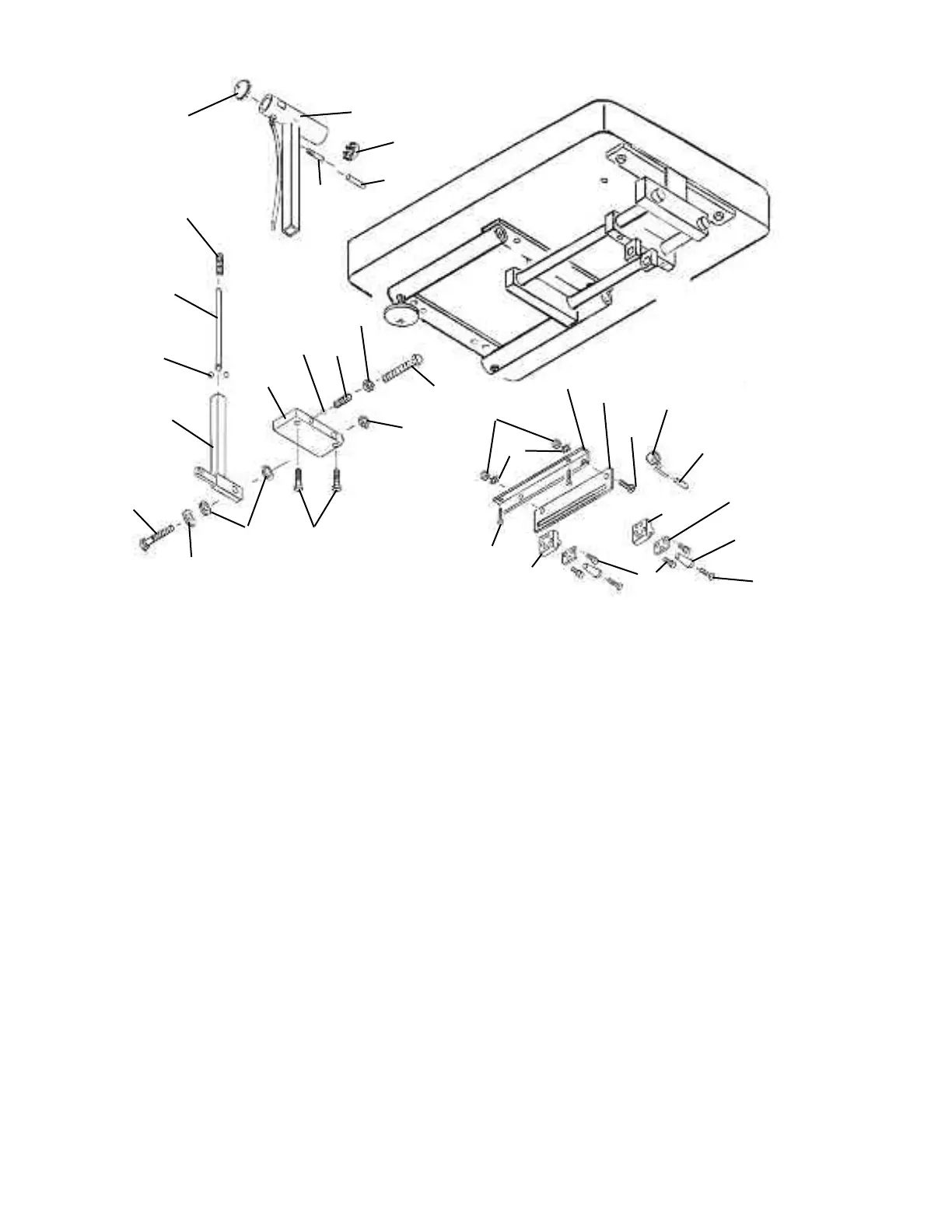

T-HANDLE ASSEMBLY
AAD PELVIC
2
1
2
4
3
5
6
7
8
10
9
11
12
13
7
15
14
16
17
18
29
19
21
20
22
23
24
25
24
28
26
27
30
