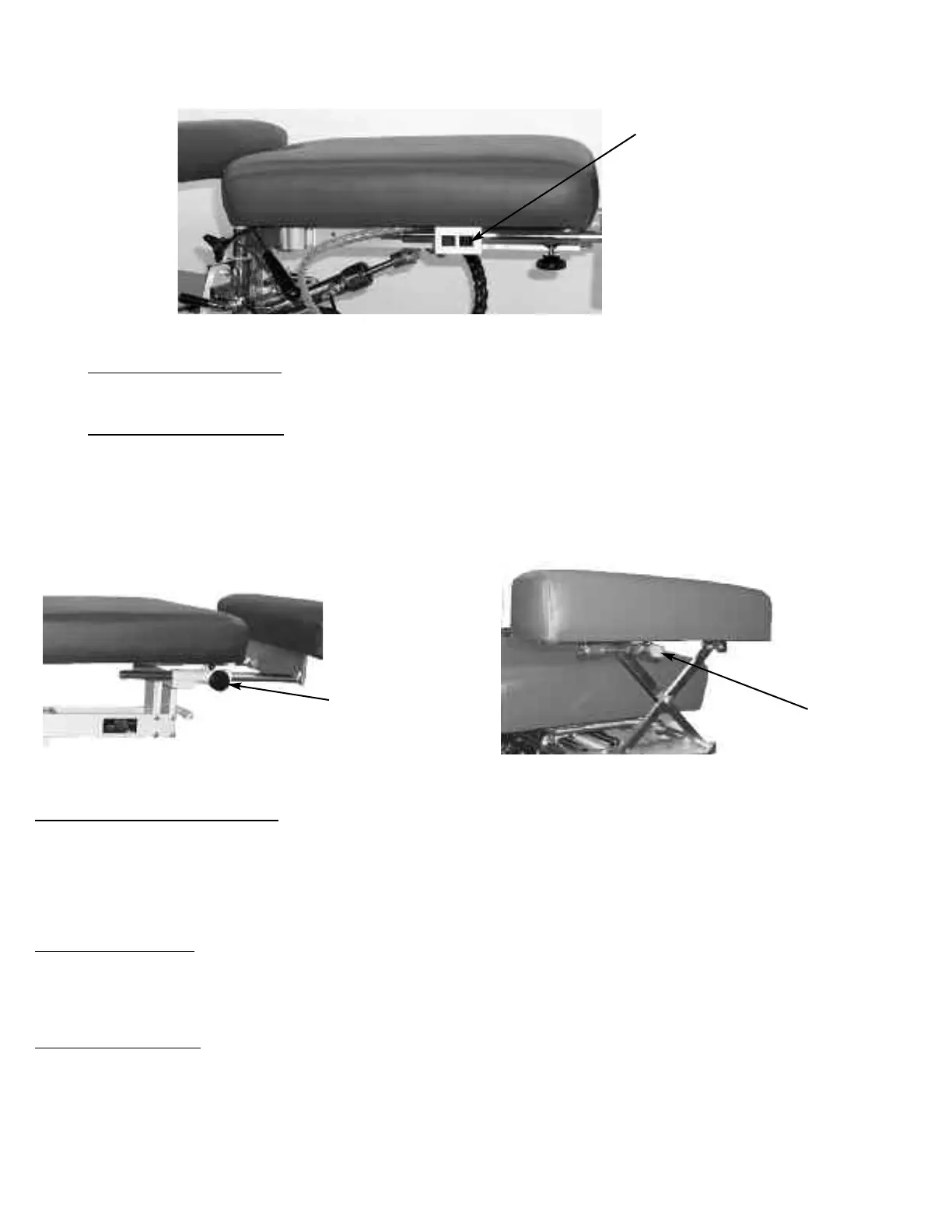

Axial Extension - Retraction (Powered)
To Extend the Pelvic Cushion
1) Move the ExtensionRetraction Switch (No. 1) to the right until desired length is obtained.
To Retract the Pelvic Cushion
1) Move the Extension Retraction Switch (No. 1) to the left until desired length is obtained.
Pelvic Axial Extension - Retraction
# 1 Extension Retraction Switch
Page 16
Ankle Rest
#1 Horizontal
Lock Knob
#2 Vertical
Lock Lever
Ankle Rest Horizontal Adjustment
To Extend or Retract the Ankle Rest
1. Loosen the Horizontal Lock Knob (No. 1) and slide the cushion to the desired length.
2. Once the cushion is adjusted, tighten the lock knob.
Optional Vertical Ankle Rest
To Raise the Ankle Rest
1. Simply lift on the sides of the Ankle Rest Cushion.
2. Once the desired height is obtained the cushion will automatically lock into position when released.
To Lower the Ankle Rest
1. From the back end of the table, support the center of the Ankle Rest Cushion with the right hand.
2. With left hand, slide the Vertical Lock Lever (No. 2) towards the left side to release lock.
3. Lower the cushion to desired height, and release the Vertical Lock Lever to lock into place.
