Page 28

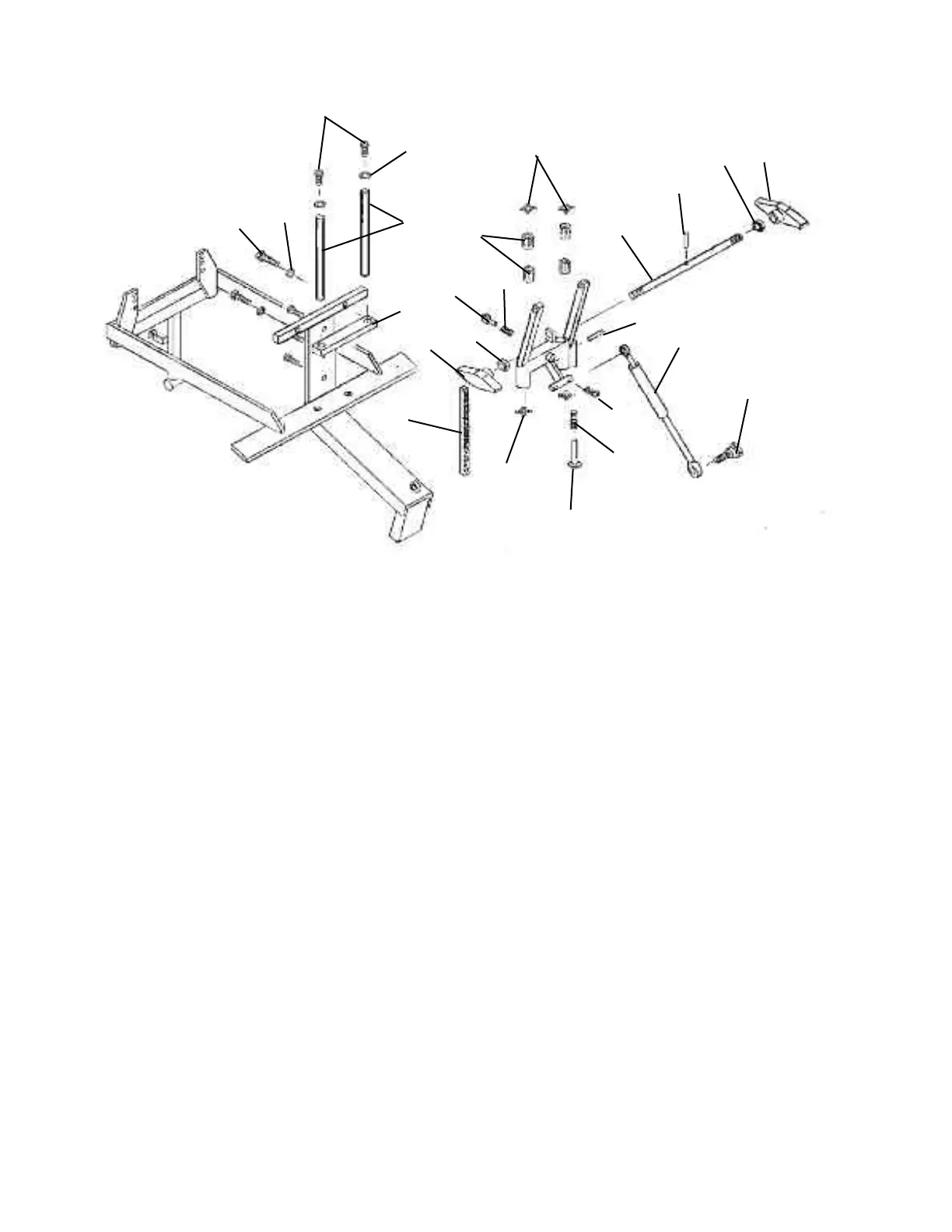

HEAD SHUTTLE ASSEMBLY
4
6
5
3
2
1
12
11
10
9
16
14
15
17
17
7
22
21
12
20
18
19
14
ITEM PART N0. DESCRIPTION QTY.
1 56415 TOP PLATE 1
2 50872 GUIDE ROD, ½ RD. X 7 7/8 2
3 21620 WASHER, FLAT, 1/4 ID X 9/16OD 2
4 22013 MACHINE SCREW, SOCKET HD. ¼-20UNC X ½ 2
5 21630 WASHER,STAR, .26 ID X .49 OD 2
6 20027 HEX. HD. BOLT, ¼-20UNC X 1 ½ 2
7 56019 GEAR RACK 1
8 21976 PAN HD. MACHINE SCREW, #6-32UNC X ¾ 3
9 56064 LOCK PIN ASS’Y 1
10 30750 COMPRESSION SPRING, 9/32 ID X 3/8 OD X ¾ 1
11 22891 BUSHING, ½ ID X 1 OD X (super 8) 4
12 24050 SPRING CLIPS 4
13 56045 SHUTTLE ASSEMBLY 1
14 22675 ROLL PIN 2
15 55949 LOCK ROD, 3/8 RD. X 11 1
16 21211 NUT, HEX, 3/8 – 16 UNC 2
17 24186 TENSION KNOB 2
18 22640 COTTER PIN 2
19 30740 COMPRESSION SPRING, 5/16 ID X 7/16 OD X 4 ¾ 1
20 55959 PLUNGER ASSEMBLY 1
21A 30296 CYLINDER PRESSURE, F/M 89. 50# 1
21B 30297 CYLINDER, PRESSURE, DELUXE, 40# 1
22 20002 SOCKET HD. BOLT, ¼-20 UNC SHLD. 5/16 X ½ 1
16
