Page 29

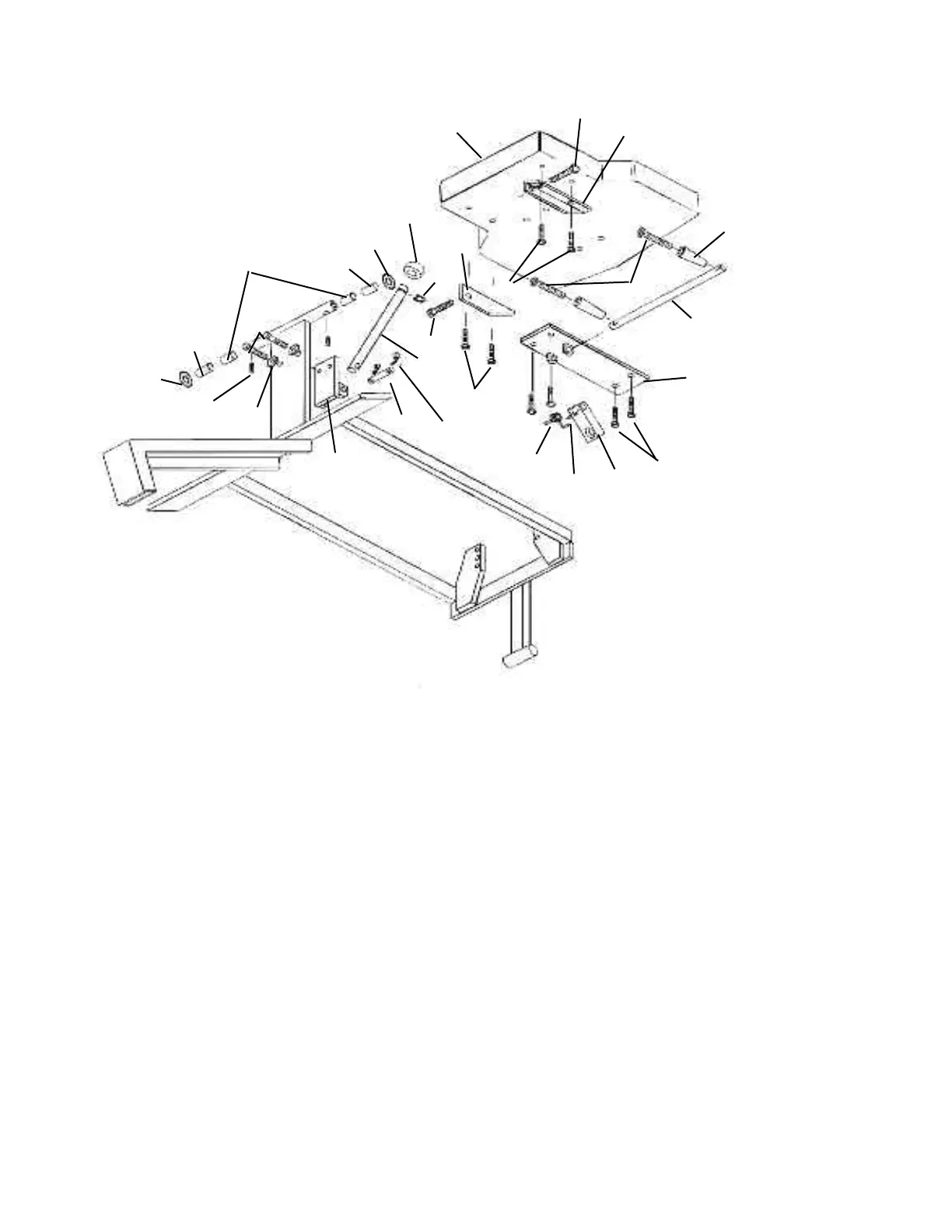

ADJUSTABLE TILT CHEST CUSHION ASS’Y
ITEM PART N0. DESCRIPTION QTY.
1 40229 Chest Cushion 1
2 56417 Brace, Angle, LH Chest 1
3 56416 Brace, Angle, RH Chest 1
4 20363 Bolt, Hex. Hd. 3/8-16 UNC X 2 ¼ 2
5 20022 Bolt, Hex. Hd., ¼-20 UNC X 1.00 8
6 22050 Screw, Machine, Rd Head, ¼-20 UNC X 2 ¼ 2
7 24020 Adjustment Handle 2
8 51230 Adjusting Rod, 1/2 X 11 1/4 1
9 55149 Support Bracket, Ass’y, Chest 1
10 54082 Adjustment Block, 3/4 X 1 X 3 5/8 1
11 30872 Torsion Spring 1
12 22113 Set Screw, ¼-20 UNC X 3/8 2
13 58085 Support Pin, 3/8 X 2 7/16 1
14 22639 Cotter Pin, 1/2” 2
15 56400 Mounting Ass’y, I - Frame 1
16 21820 Star Washer, 3/8” 2
17 20332 Bolt, Hex. Hd., 3/8-16 UNC X 1.00 2
18 57719 Spacer, 3/8 ID X ½ OD X 3/8 2
19 50720 Spacer, 3/8 ID X ½ OD X ½ 2
20 21800 Washer, Flat, Plastic, 3/8 ID X 5/8 OD X 1/16 2
21 22935 Collar, 9/16 1
22 24286 Snap Ring, 9/16 1
23 54228 Eye-Rod, 9/16 Rd X 10 1/16, Groved 1
24 22110 Set Screw, 1/4 - 20 UNC X 1/4 2
23
15
22
20
19
17
16
18
19
21
20
13
14
10
12
11
5
5
5
9
8
6
4
4
3
2
1
24
7
