ITEM PART N0. DESCRIPTION QTY.
1 40410 ANKLE REST CUSHION 1
2 56507 BASE PLATE 1
3 30774 COMPRESSION SPRING 1
4 56519 LOCK HANDLE 1
5 56525 GUIDE BLOCK 1
6 56518 GUIDE ROD 2
7 22468 SCREW, WOOD, RD HEAD, #10 X 7/8 6
8 24236 GUARD, TEE HANDLE 1
9 22610 PIN, CLEVIS, 5/16 X 7/8 1
10 56539 GUIDE BLOCK 1
11 54203 SLIDE FRAME ASS’Y 1
12 21010 NUT, HEX, ¼ - 20 UNC 1
13 20197 BOLT, SOCKET, SHOULDER, 5/16-18 unc, 3/8 x 3/8 2
14 56512 LINKAGE ARM ASSEMBLY 2
15 22660 ROLL PIN, 1/8 X 5/8 2
16 52190 EXTENSION ROD 1
17 24415 PLASTIC CAP 1
18 22615 PIN, CLEVIS, 5/16 X 2 2
19 22110 SET SCREW, ¼ - 20 UNC X ¼ 3
20 21710 WASHER, FLAT, 5/16 ID 1
21 21760 WASHER, FLAT, PLASTIC, 0.315 ID X ½ OD 1
22 22640 COTTER PIN 1

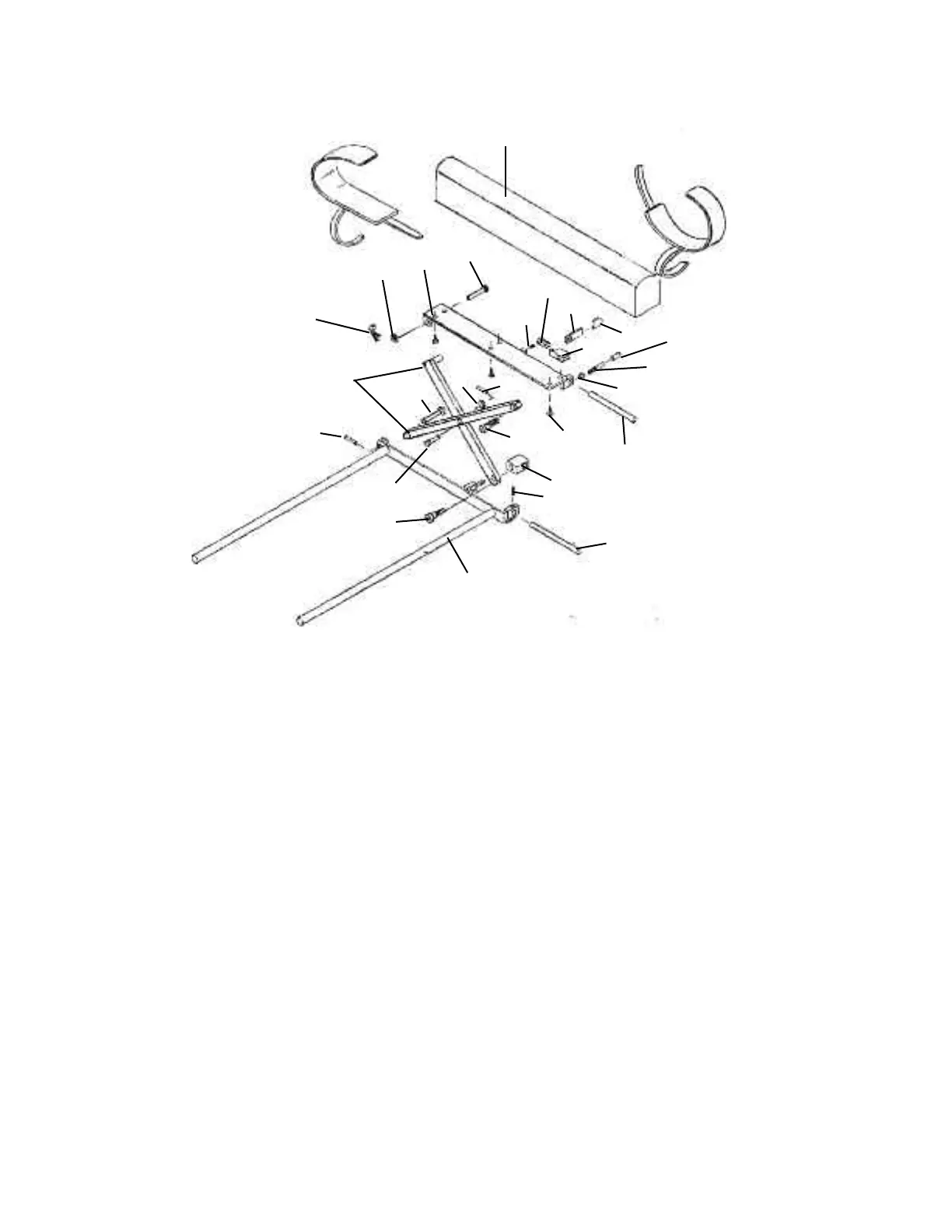

ANKLE REST ASSEMBLY
