Lloyd 402 Flexion Elevation - Page 66

ITEM PART N0. DESCRIPTION QTY.
1 40209 CUSHION ASSEMBLY 1
2 57286 SUPPORT ROD, 3/8 RD. X 6 ½ 1
3 57493 SUPPORT BLOCK 2
4 20023 HEX HD. BOLT, ¼-20UNC X 1 ¼ 9
5 57492 EYE-ROD, 9/16 RD. X 5 1/8 1
6 57491 EYE-ROD, 9/16 RD. X 5 1/8 (CLIP) 1
7 22639 COTTER PIN, 3/32 X ½ 2
8 57489 HINGE BLOCK 1
9 22670 ROLL PIN, 1/8 X ¾ 2
10 24020 ADJUSTMENT HANDLE 2
11 22050 RD. HD. MACHINE SCREW, ¼-20UNC X 2 ½ 2
12 57737 ADJUSTMENT BLOCK 2
13 57285 SUPPORT ROD, ½ RD. X 12 ½ 1
14 57280 CHEST FRAME ASS’Y 1
15 20199 SOCKET HD. SHLD.BOLT, 3/8-16 UNC X 3/8 x ½ 2
16 21800 PLASTIC WASHER, 3/8 ID 2
17 57458 SUPPORT BRACKET ASS’Y 1
18 52150 SPACER 4
19 22679 SUPPORT PIN, ½ DIA. X 3 ½ 1
20a 57450 EYE-ROD ASS’Y (GALAXY) 1
20b 56410 EYE-ROD ASS’Y (402 FLEXION) 1
21 22915 COLLAR ½” 2
22 21210 HEX. NUT, 3/8-16 UNC 2
23 20332 HEX. BOLT, 3/8-16 UNC X 1.00 2
24 24286 E-CLIP, 9/16 1
1
2
6
24
3
7
8
4
5
4
19
17
18
13
23
15
16
21
10
11
12
22
21
10
11
20

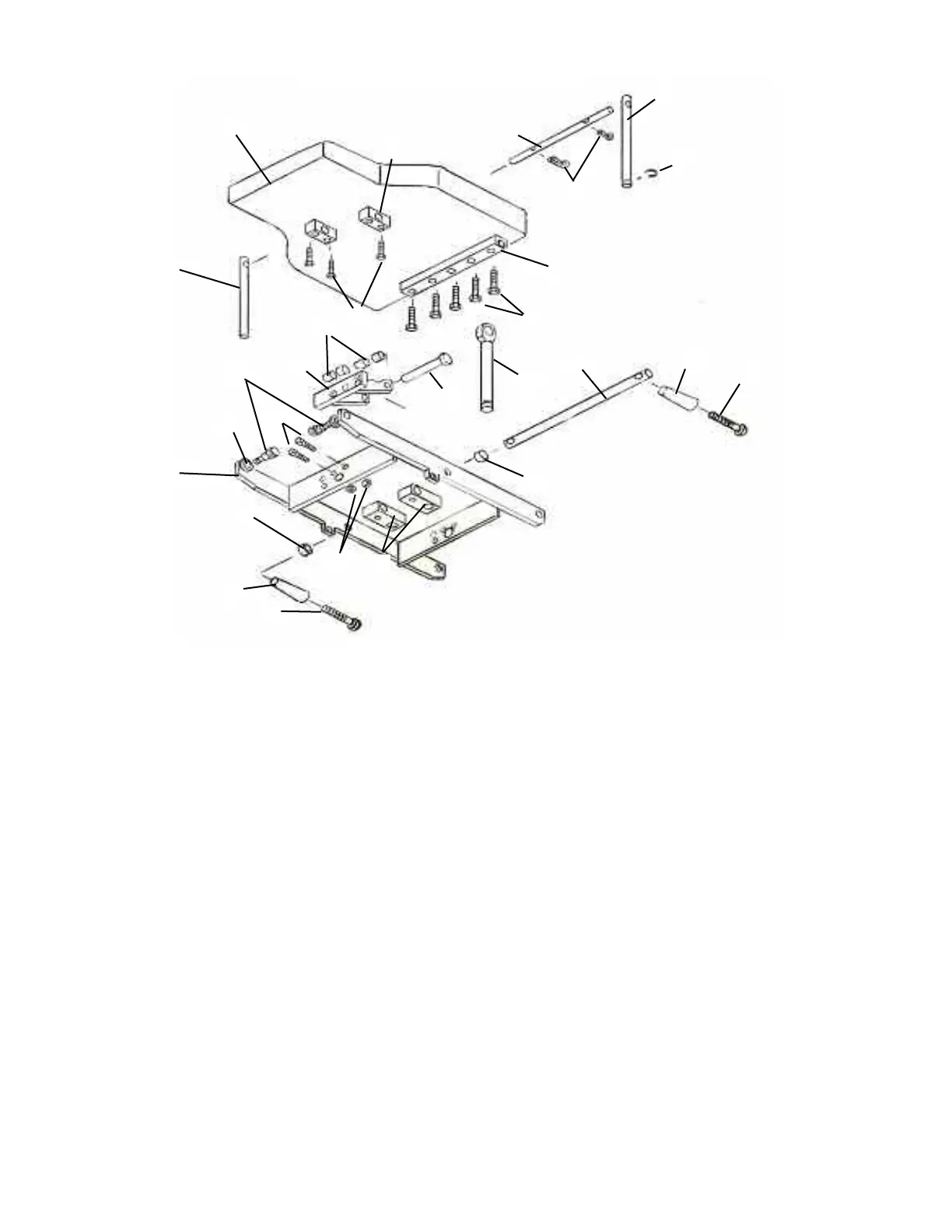

CBP CHEST CUSHION
TILT - FRAME ASS’Y
14
Page 63
