Electronic Control "LCM" User Manual
firmware 0.06 Rev.02 EN 13/ 15

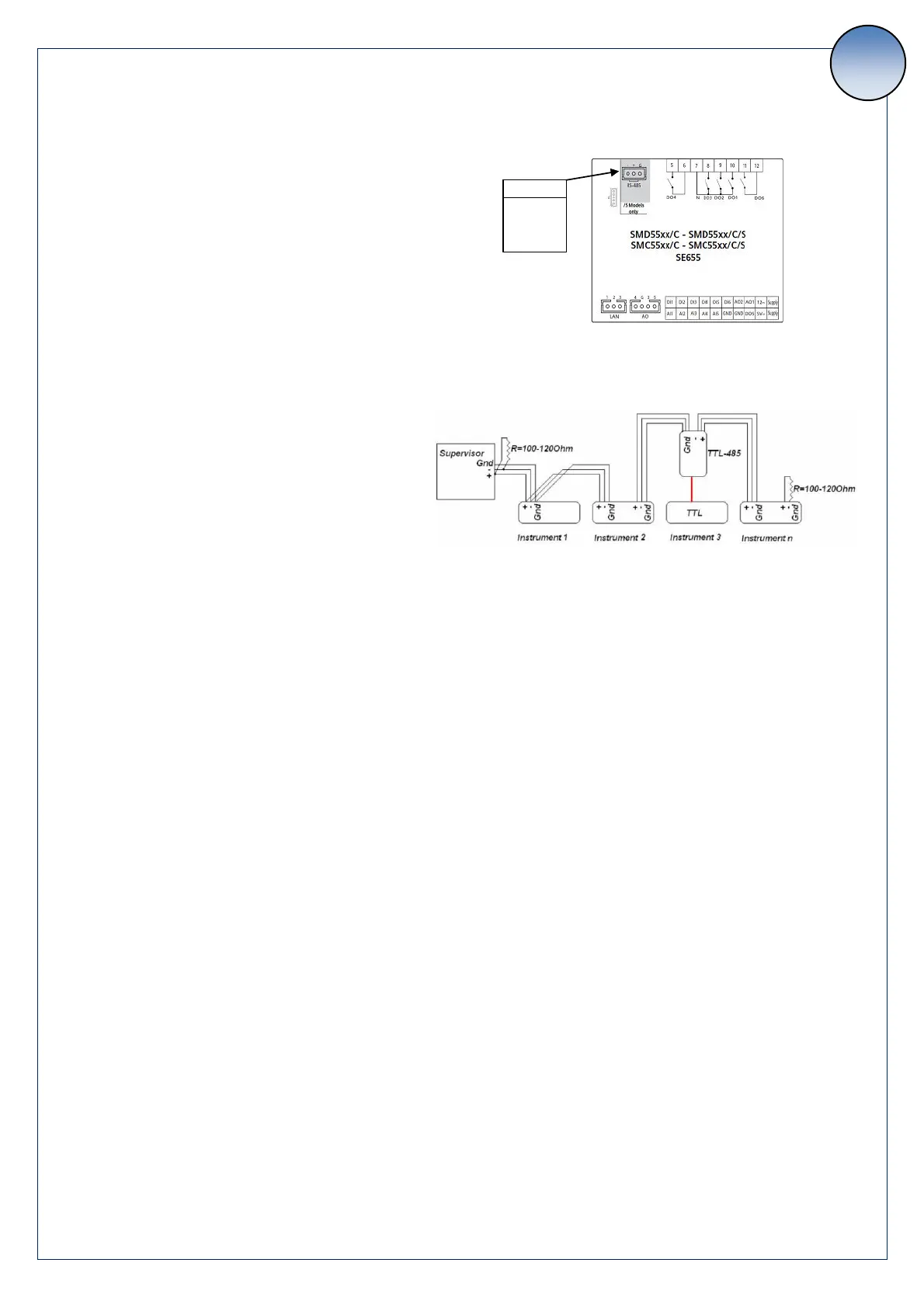

8 BMS Modbus RS485
Modbus Type Holding Register
Read command: 03 (03Hex)
Write command: 16 (10Hex)
: Modbus protocol address
1 default …55
: Modbus protocol baudrate
0= not used
1= not used
2= not used
3= 9600 baud (default)
4= 19200 baud
: Modbus protocol parity
1= EVEN (default)
2= NONE
3= ODD
Word length= 8 (not editable)
Stop bits= 1 (not editable)
Suggested cable for data has impedance of 100-120 ohm
Belden 3105A EIA RS-485-Industrie PLTC / CM
Cable
Gray: GND
White: +
Black: -
