CHAPTER 3: PROCEDURES
QUICK LOAD SERVO 65/80
3-7

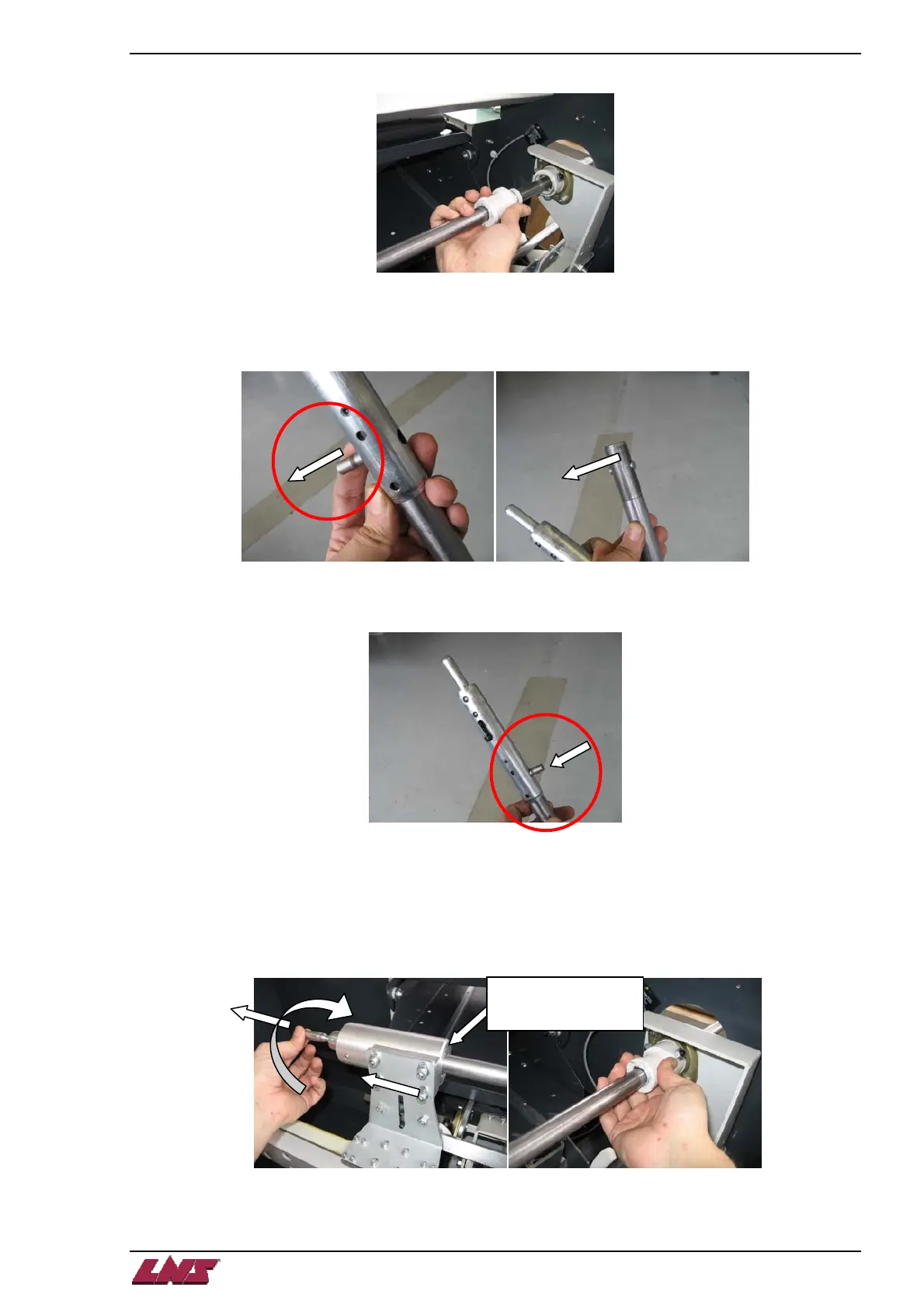

Step 4: Pull the white bushing on the front guide bearing towards the rear of the bar feed to extract it.
Step 5: Remove the pusher completely from the bar feed.
Step 6: Disassemble the pusher adapter from the pusher body by pushing out the crossing shaft. Reset the shaft
in the pusher body to avoid losing it.
Step 7: Assemble the pusher adapter on the new pusher body with the corresponding shaft.
Step 8: Put the corresponding white bushing on the pusher. Insert the front end of the pusher through the front of
the bar feed first, then slide the pusher adapter through the carrier so that it is flush on the right hand side
of the carrier.
Step 9: When the pusher adapter is in place in the carrier, turn the finger ¼ of a turn back (counter-clockwise). The
finger must stay locked in rear position and the pusher must be totally locked into the carrier. Slide the
white bushing into the front guide bearing.
Must be flush on the
right side of the carrier
bushin
g
.
