CHAPTER 3: PROCEDURES
QUICK LOAD SERVO 65/80
3-9

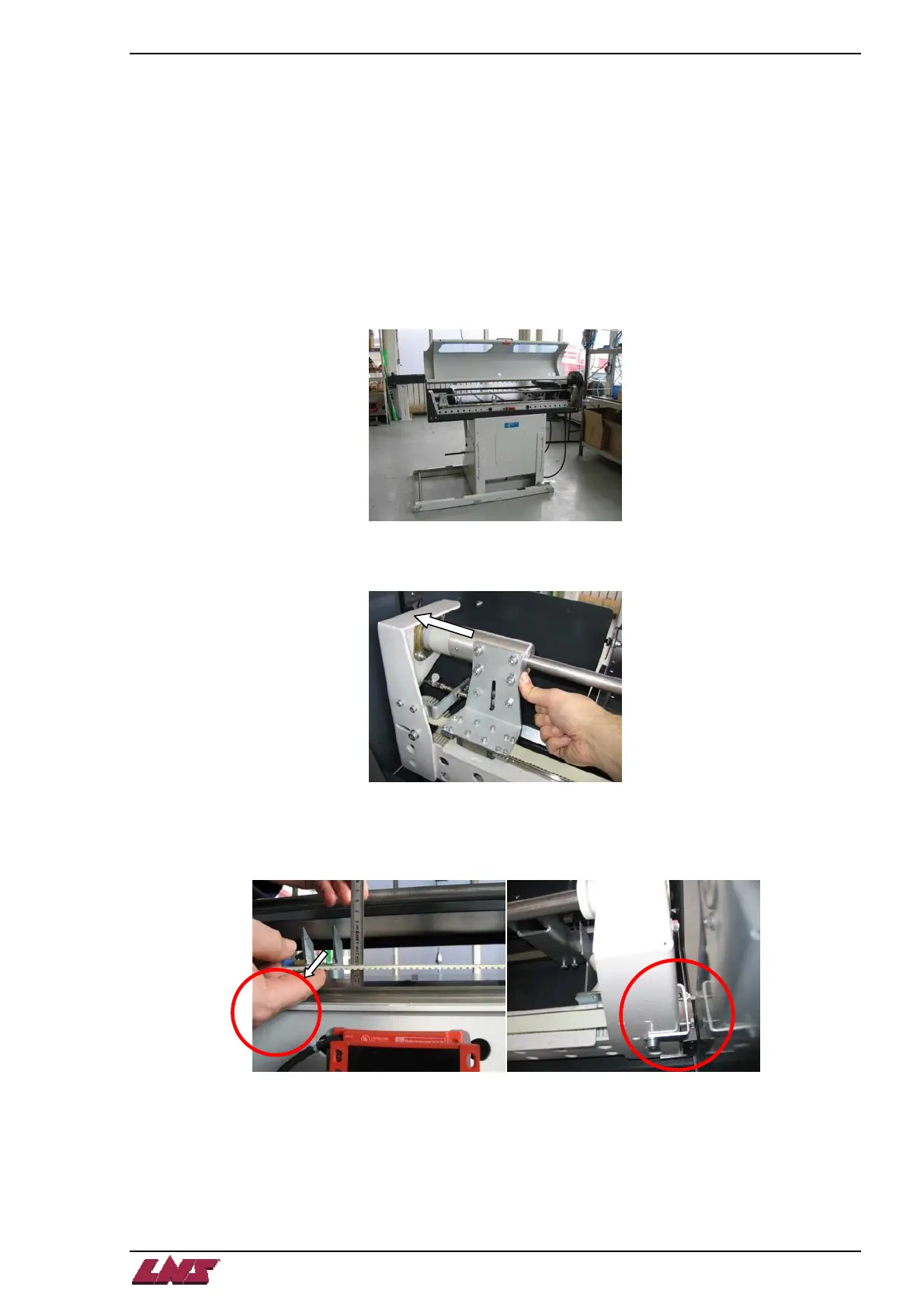

Belt Tension Adjustment
Conditions:
- Bar feed on.
- Loading table in lower position.
- Pusher at the mechanical home position.
- Bar feed in STOP mode.
Procedure:
Step 1: Open the main access cover.
Step 2: Make sure the carrier is in home position.
Step 3: In the middle of the linear rail, measure the belt vertical displacement from the belt to the rail. Don't force it
! This displacement must be approx. 20 mm. If necessary, modify the belt tension with the belt tensioner
located at the front of the bar feed.
Step 4: Once the tension is set, close the main access cover.
Procedure complete.
