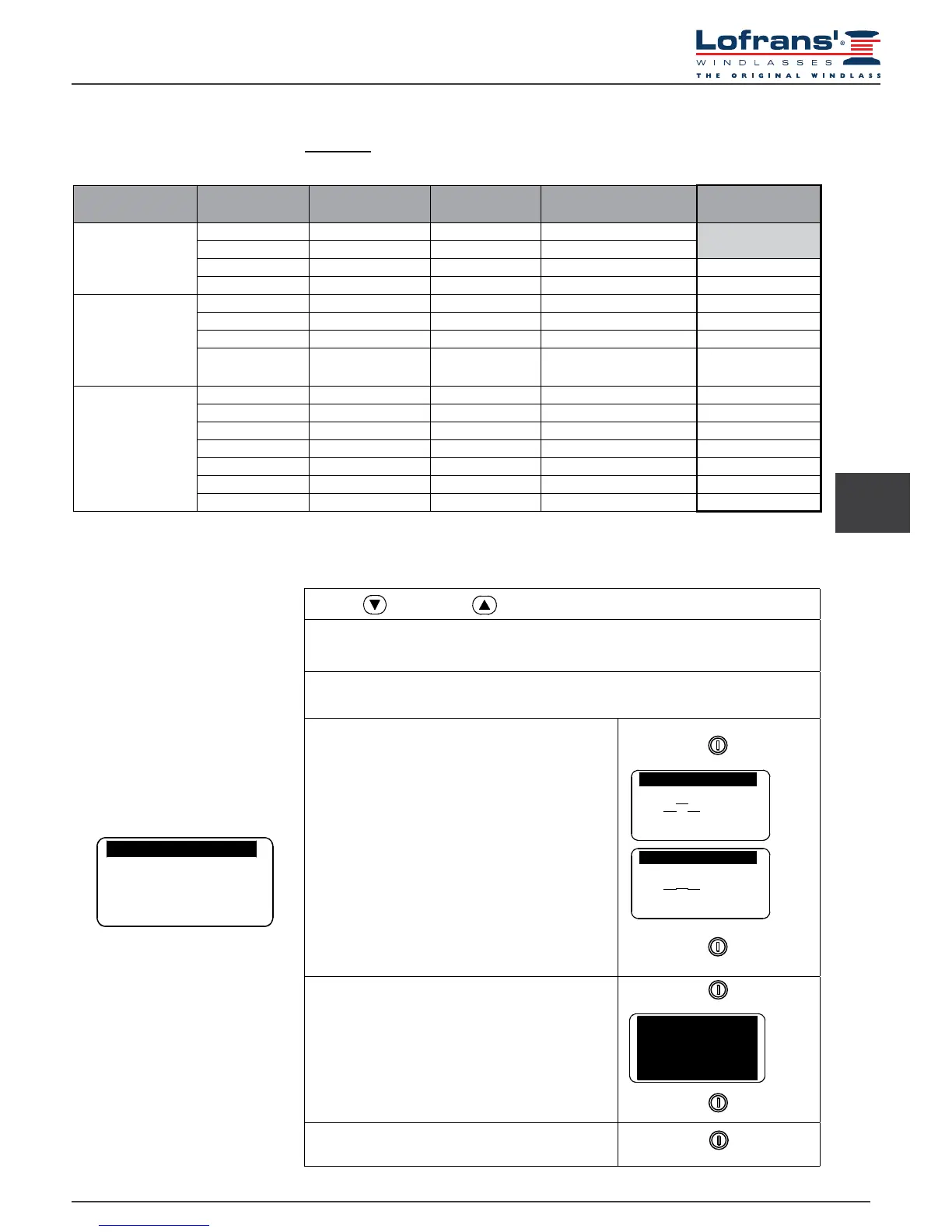

Lofrans Iris - Software and System Checks

9
www.lofrans.com
5.9 Table 2 - 1000 – 1500 – 2000W Project series sensor
(magnet and sensor placed on motor)
* factory setting of instrument
Type
Gipsy Circumf.
(cm)
Reduction
ratio
Number of
recesses
Chain type
(mm-inches)
Reduction
Factor
Project 1000
30 1:52 6 8-5/16”HT
57*
30 1:52 5 10 DIN 766
31 1:52 5 10 ISO-3/8”HT 59
34 1:52 9 6 65
Project 1500
30 1:70 6 8-5/16”HT 43
30 1:70 5 10 DIN 766 43
31 1:70 5 10 ISO-3/8”HT 44
36 1:70 5
12 ISO-13 DIN 766-
7/16”HT
51
Project 2000
39 1:75 6 3/8”HT 52
40 1:75 6 3/8”Proof Coil 53
41 1:75 6 10 DIN 766-3/8”BBB 54
44 1:75 7 10 ISO 58
45 1:75 5 14 ISO 60
46 1:75 6 12 ISO-13 DIN 766 61
47 1:75 5 13 DIN 764 63
5.10 Check menu
Tests
Software Version
Operat. Time
Sensor Test
Exit
LCD Test
3.0
0
Use the (DOWN) or (UP) key to move around the parameters
Software Version
Indicates the version of the software installed.
Operation Time
Indicates the time the instrument operates
Select with
Conrm with
LCD Test
This function switches on all the display’s pixels
thus making it possible to perform a check on
them.
Select with
Conrm with
Exit
To return to the settings menu.
Conrm with
Sensor Te st
Sensor Te st
UK
Sensor Test
The purpose of this function is to check the state
of the sensor:
contact open
contact closed
