USER MANUAL SMARTneo // PAGE 18
7.5 OVERALL CONFIGURATION (EXAMPLE)

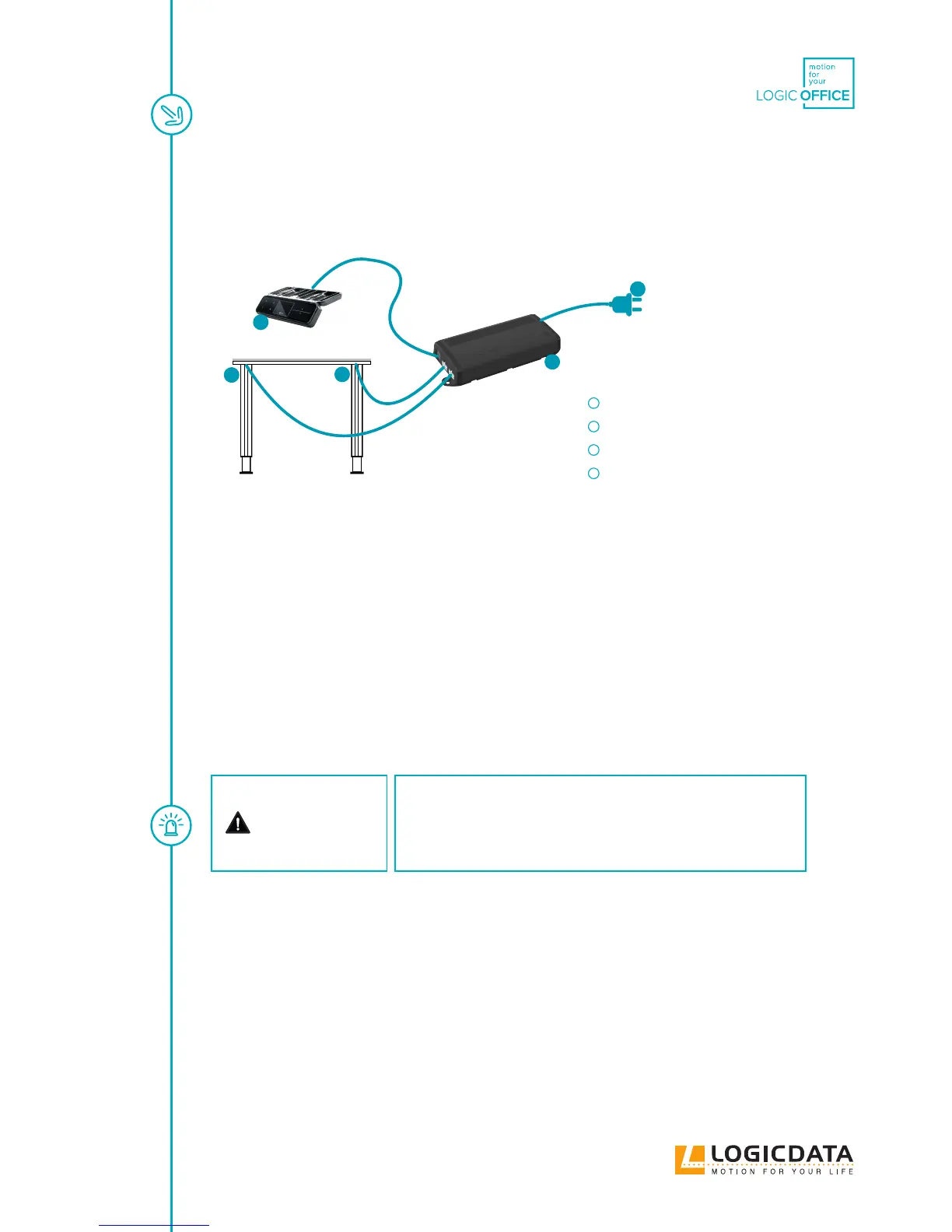

The following gure shows a sample conguration:
Abb. 3: Connections to the control SMARTneo
7.6 RESET DURING FIRST START-UP
During the rst start-up, there is a compulsory reset in order to be able to commission the product.
The reset puts all columns on the same level. This ensures that the table top is moved parallel to the basic
level. In addition, the control stores the connected components in the standard version.
After the reset, conguration changes are detected and rated as errors. The system no longer moves until
the saved state has been restored.
Danger of crushing
With all reset processes (Chapter 9.4), the collision protection
(ISP) is inactive. Please note the increased crushing hazard
hereby!
The execution of the manual reset is explained in chapter 9.4.
1
4
3
2
2
Motor control SMARTneo-2
2 motors (in the table legs) (M1, M2)
hand control (HC)
Power supply cable 2-pin(AC)
