Lombardini ECOWIND 350 ECC - Page 22

22
THIS MANUAL IS PROPRIETY OF ECOWIND by LOMBARDINI - ALL FORMS OF REPRODUCTION, PARTIAL OR OTHERWISE, IS STRICTLY PROHIBITED
G
B
T2
A1
A2
B
C
B
S
B
T1
S
Fig. 20
Fig. 19
Fig. 18
Fig. 17
P
K
S

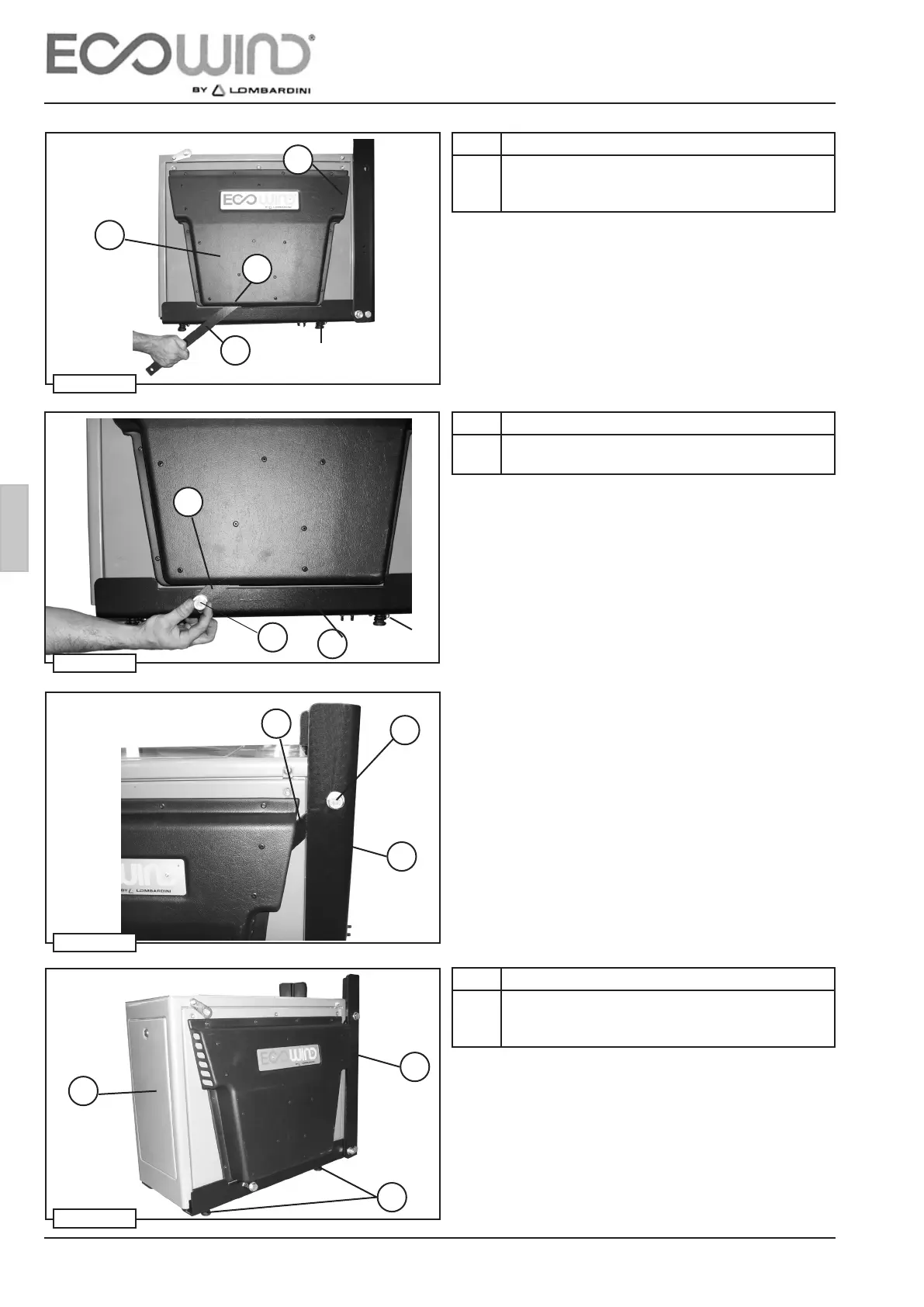

3 - ASSEMBLY AND INSTALLATION
Step Description
13 Fix strongly the power unit P at the support frame S
half bolts M 10 supplied end the four threaded stud
K. See g.20, with torque reported on tab. 7 pag. 17.
Step Description
12 Fix again the side bracket B at frame S with the bolts
T1 and T2 previously stored as showed in g. 18 – 19.
Step Description
11 Insert the side bracket B before disassembled into
the plastic air intake C thought the two eyes A1 and
A2 as showed in g. 17
Stud M10 (x4)
Stud M10 (x4)
