THIS MANUAL IS PROPRIETY OF ECOWIND by LOMBARDINI - ALL FORMS OF REPRODUCTION, PARTIAL OR OTHERWISE, IS STRICTLY PROHIBITED
G
B

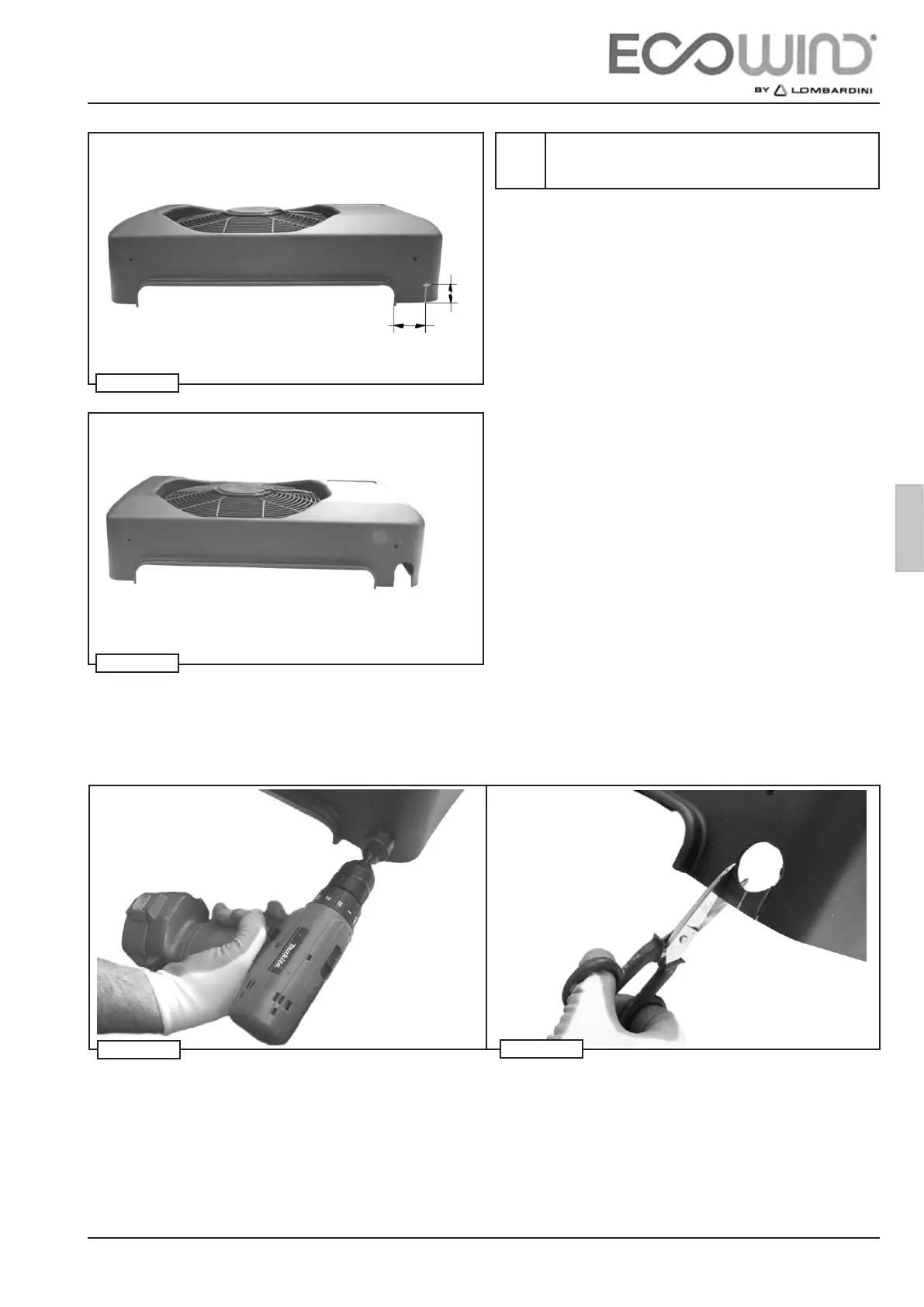

3 Make the eye on plastic cover condenser CC for
crossing pipes gas G6, G8 and wiring cable CE with
measurements reported in g. 42-43
Fig. 42
Fig. 43
50 mm
30 mm
Ø 34 mm
Air shroud ( Cc)
Electric fan (V)
Slot ( K )
Follow the procedure described below using a 34 mm diameter hollow mill g. 44 and make a hole conforming to the
measurements shown in g. 42
Cut out the strip from the casing, removing it towards the outside, to obtain the opening K (g. 43-45).
Fig. 44
Fig. 45
NB:
Operation required only for install pipes, side to condenser Gas
C like g. 40÷41
3 - ASSEMBLY AND INSTALLATION
