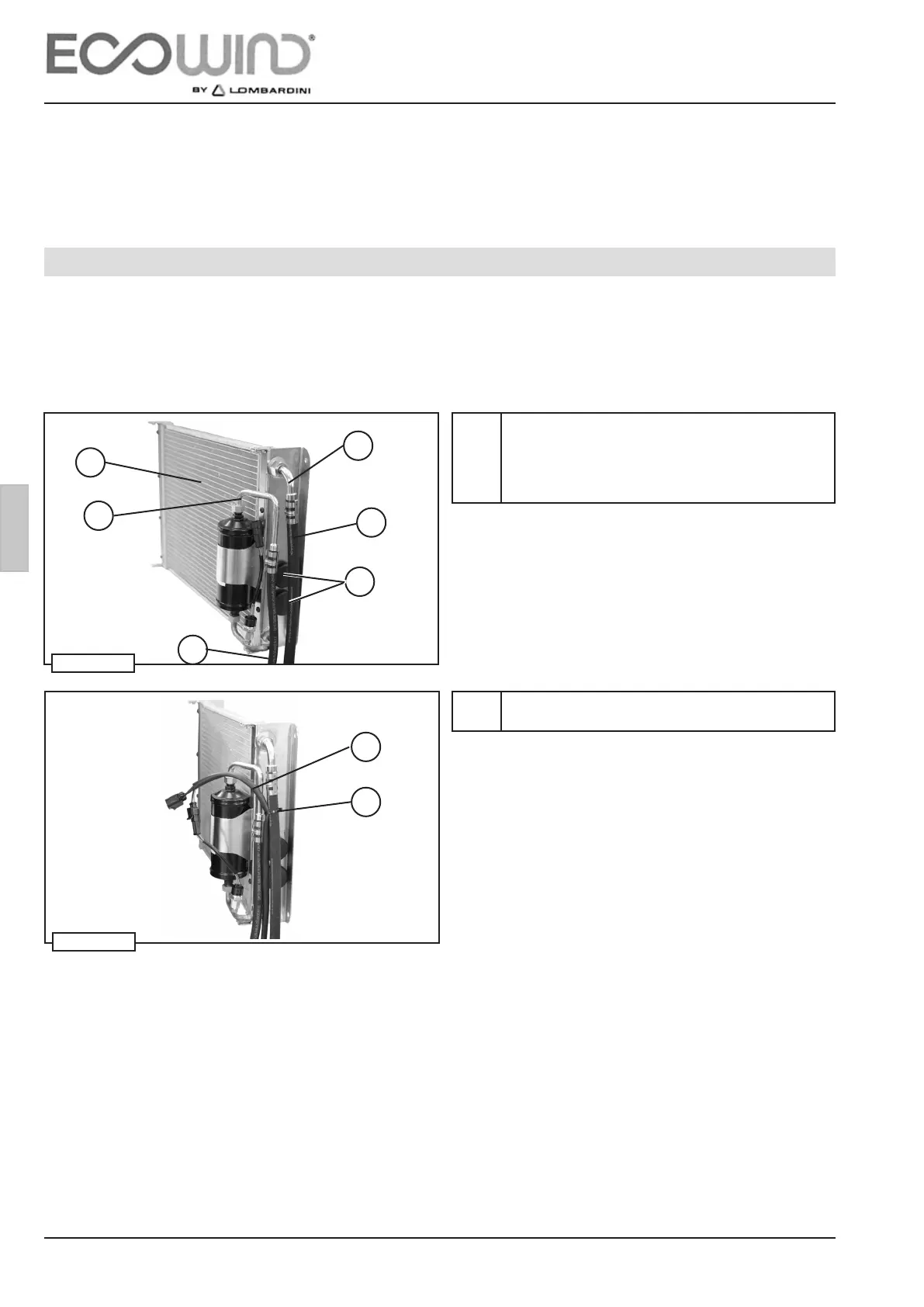

GAS PIPES FIXING TO SIDE OF THE CAB.
Fig. 40
1 Insert directly the two pipes gas G6 and G8 to
condenser C and Lock the ttings R1 and R2 to the
condenser C sse. Fig. 40, with torque value like
reported on tab. 8 pag.36
WARNING: do not disassembly the two rubbers T
C
R2
R1
G8
T
G6
2 Bended the wiring cable CE, to gas pipe half plastic
band FP supplied, as showed in g. 41
Fig. 41
CE
FP
2nd OPTION
ASSEMBLY AND INSTALLATION - 3
