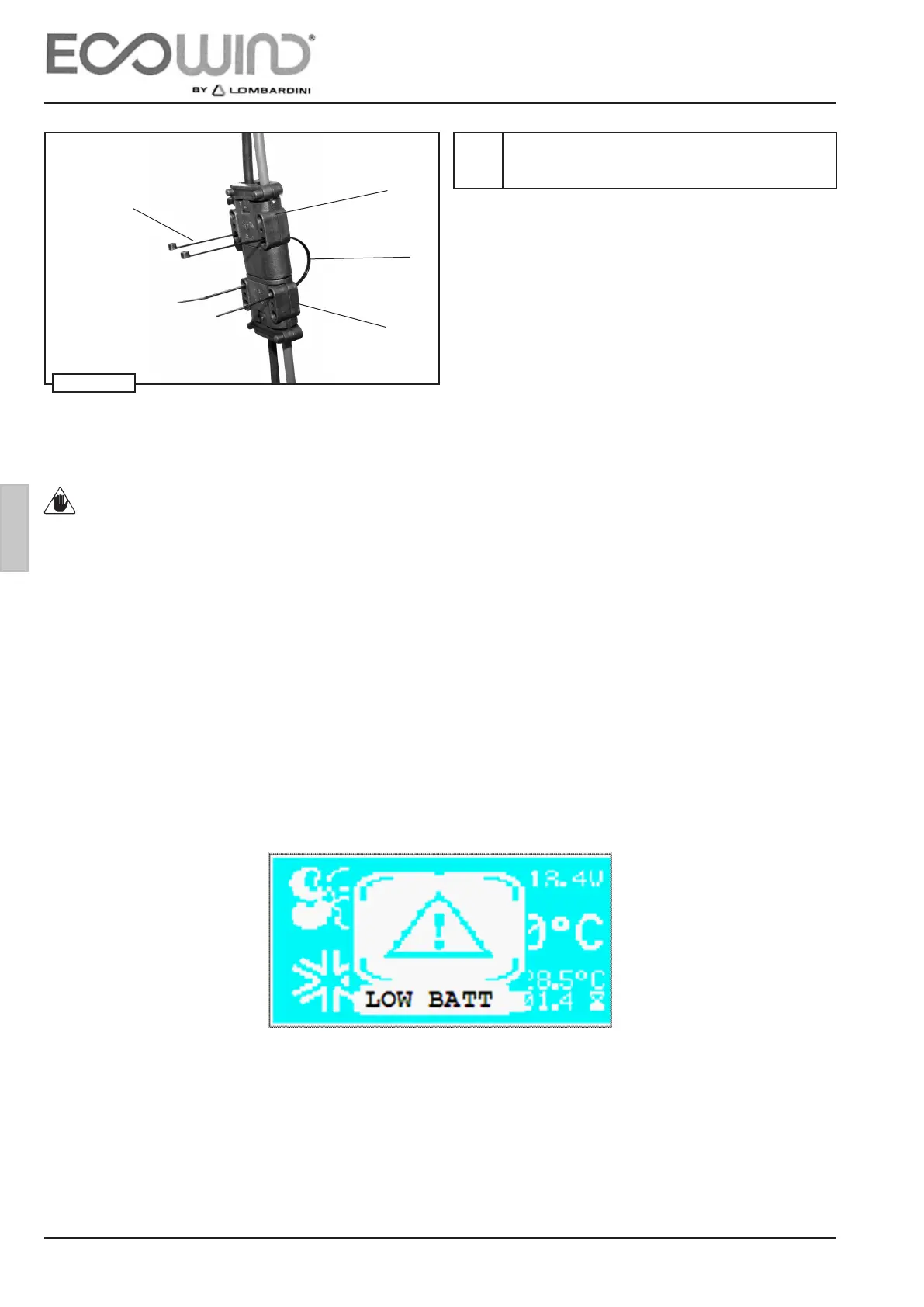

Fig. 69
ASSEMBLY AND INSTALLATION - 3
Security Harness Connector
1. Plastic clamps, qty. 2
2. Connector, power unit side
3. Connector, battery power cable
11 After attaching the connectors toghether, insert the
two plastic clamps supplied and fasten the battery
connectors g. 69.
WARNING
Valid for all electrical connections for all connectors “SICMA-FRAMATOME 24 way”! (see 2c -
3c g.66)
During the clamping connector to pay absolute attention to proper electrical contact. If is ignored this REMARK of this procedure
could not ensure proper operation of the system !
IF THE CONNECTORS IN NOT PROPERLY INSERT THE MOST PROBABLY ALARM SHOWED ON DISPLAY CONTROL ECC
WILL BE LIKE ON FIG. 1.
“LOW BATT”
Fig. 1
(display ECC control)
