G
B
G 6
R
FG
R
Power Unit
Fig. 88Fig. 87
Fig. 90Fig. 89

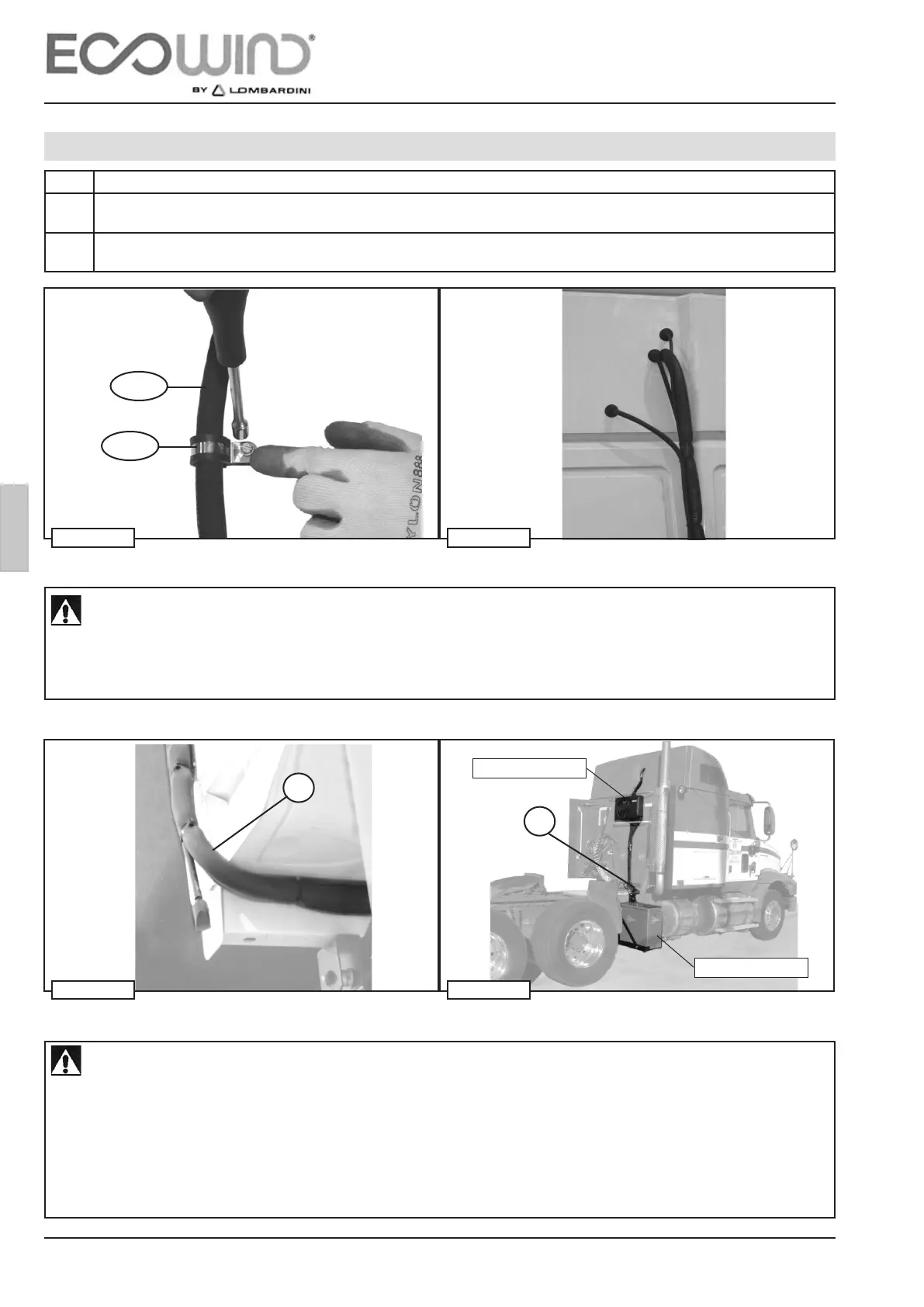

CONNECTING PIPES AND CABLES TO THE CONDENSER
ASSEMBLY AND INSTALLATION - 3
Attention!
The condenser mounting operation given above is only indicated for vehicles with a xed
cab (bound to the frame) and not for models with forward tipping cabs!!! Fig 86-90
ECOWIND by Lombardini declines all responsibility for damage caused to things, persons,
animals, the vehicle and the ECOWIND system as a result of non-observance of this
regulation!!!
Condenser
Step Description
1 After fastening the pipes and cables to the vehicle frame, proceed by passing the tube bundle towards the condenser
like options 1st or 2nd to pag 26÷30.
2 Continue attaching the pipes on the outside, boring through the rear of the cab using a 3.5mm bit, and inserting the steel/
rubber clamps FG around the pipes. Fasten using the supplied self-threading screws (g. 87).
Attention!
Make sure that the curvature of the pipes R during passage from the vehicle frame to the back of the cab has been
checked and is adequate (g. 89)
Non-observance of this point could lead to the pipes being crushed, thereby compromising the performance of the system.
