3.10_B FASTENING THE PIPES AND CABLES - Tipping cabs
V cab
C condenser
S split unit
F cab fulcrum
PU power unit
PS access points gas
B Battery

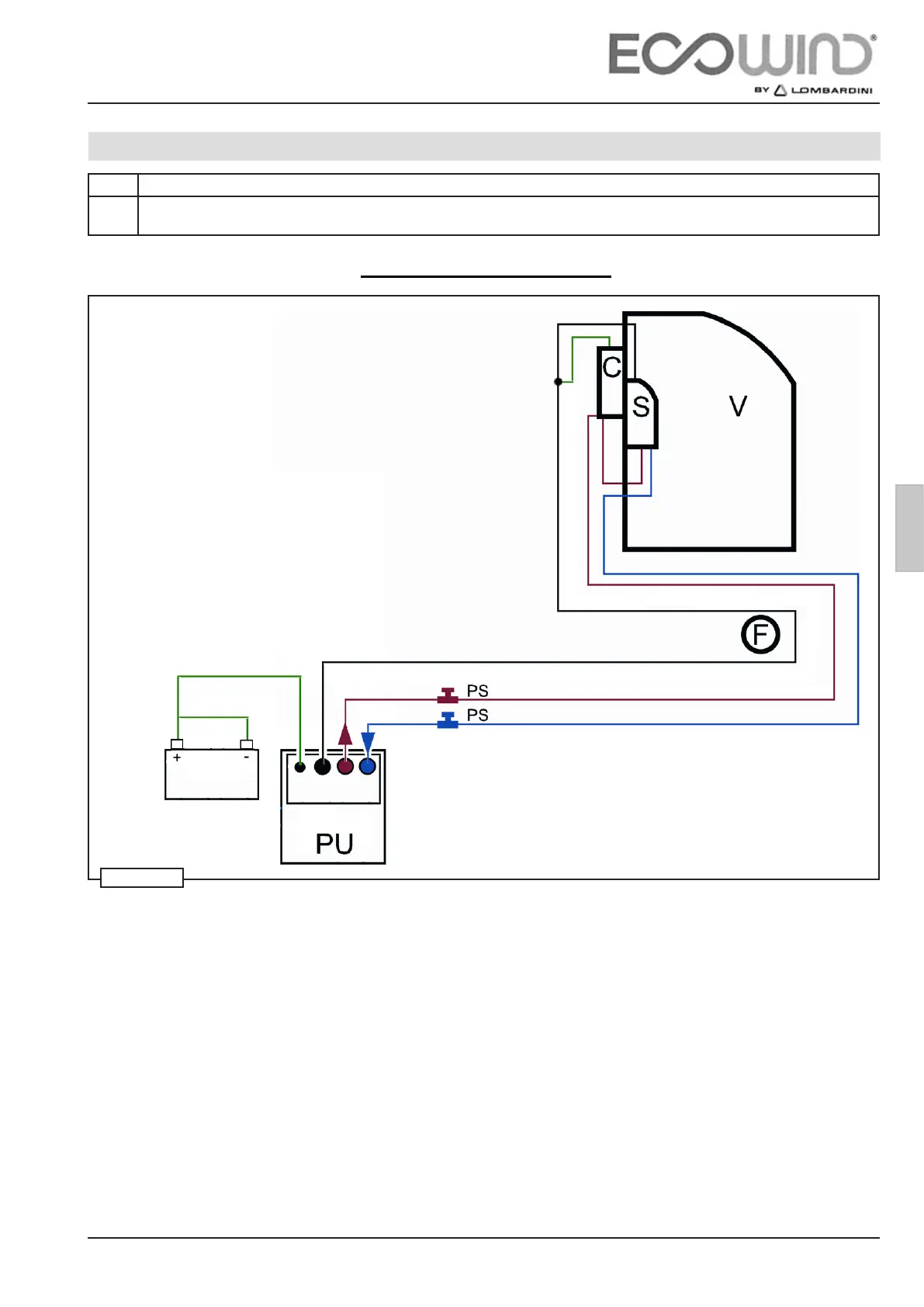

CONDENSER/CAB METHOD
Pipe G10
Pipe G8
split cable
Battery cable
Pipe G6
3 - ASSEMBLY AND INSTALLATION
Step Description
1 After xing the Power Unit / Condenser / Split unit, proceed to fasten and close pipes and cables, according to the fol-
lowing two procedures g. 91
B
