LONCIN LC3000i User Manual

SECTION 4. DISASSEMBLY AND SERVICE

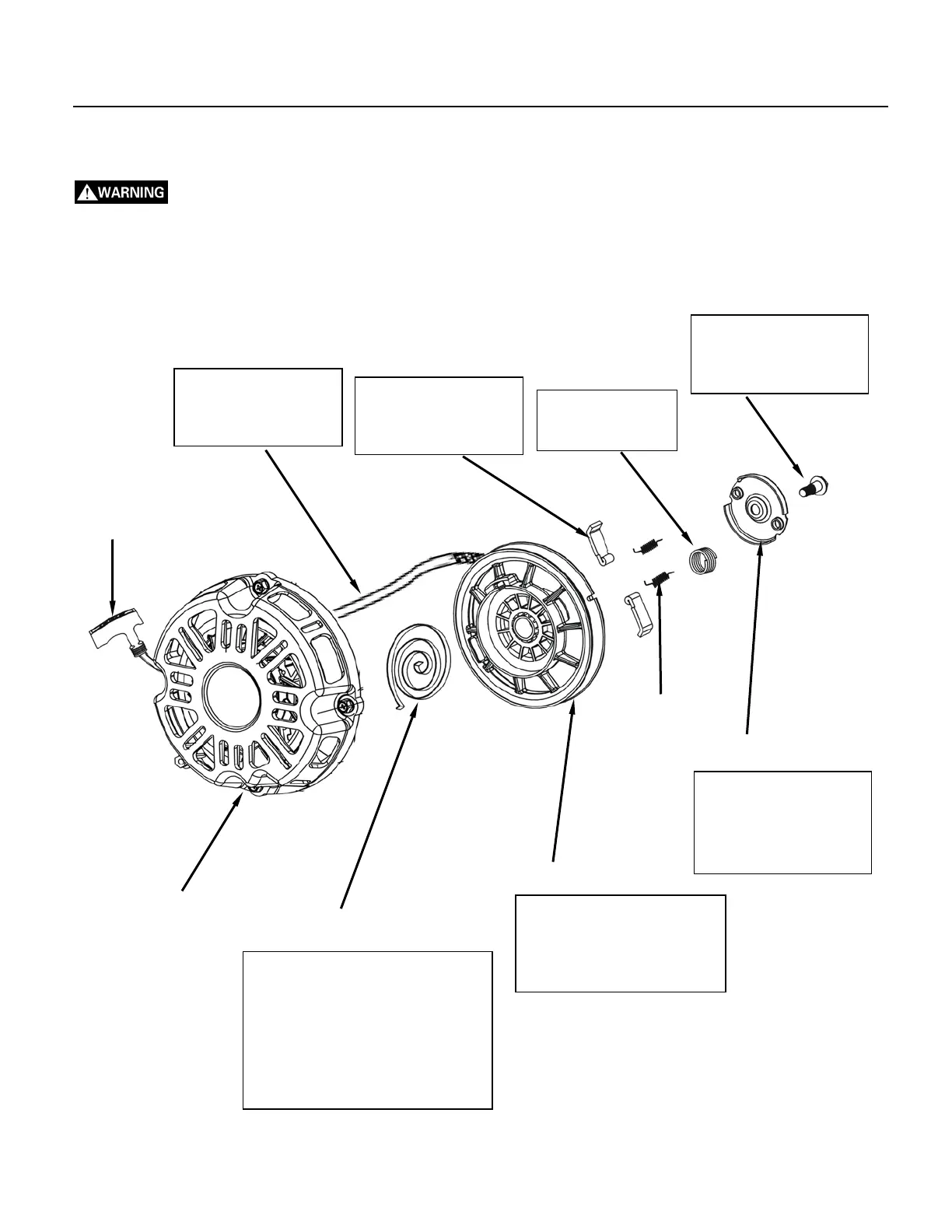

b. DISASSEMBLY/ REASSEMBLY (STARTER ASSY)
The recoil starter can cause personal injury, Wear safety glasses. Do not let the recoil spring
snap out.
HEXAGON
SHOULDER BOLT
REASSEMBLY:
Apply thread locking
compound to thread
first.
REEL COVER
REASSEMBLY:
When installing,
let each
ratche
t’s end
extend out
of the reel cover’s
corresponding gap.
Friction
spring
REASSEMBLY:
Apply grease to it.
RATCHET
REASSEMBLY:
Check for wear and
damage, pay attention
to installing direction.
REASSEMBLY:
Install return spring into
starter reel then install
starter reel onto starter
case.
STARTER REEL
RETURN SPRING
RATCHET
SPRING
Note: Take care not to let spring
snap out during disassembly. Use
gloves when disassembling.
REASSEMBLY:
Hook the outer hook in the
groove of the starter reel and
then hook inner hook
to the tab
on the starter case.
STARTER ROE
REASSEMBLY:
Check rope for
breakage and wear
before installation.
STARTER
CASE
STARTER
GRIP
- 36 -
