SECTION 4. DISASSEMBLY AND SERVICE

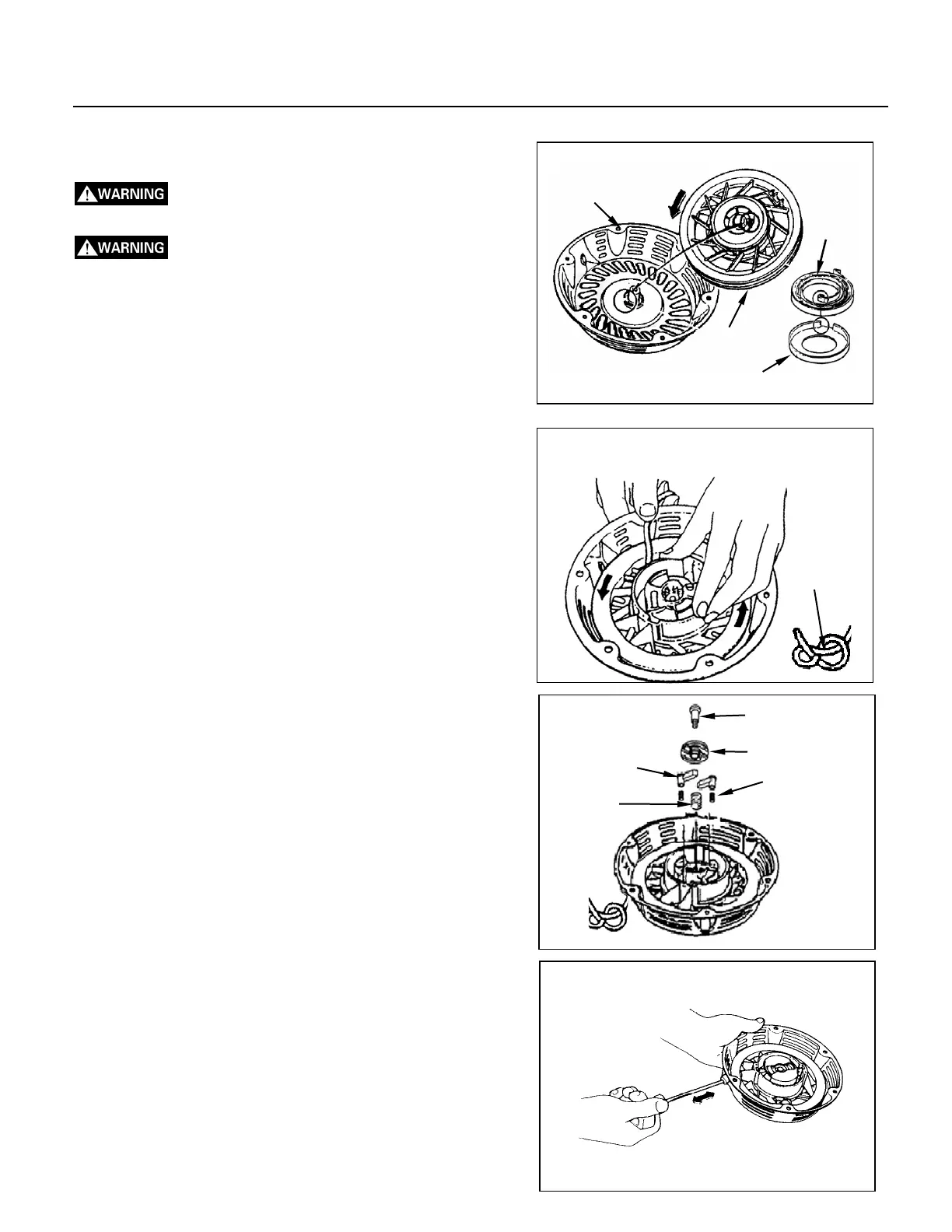

ASSEMBLY OF RECOIL STARTER
Wear glovers and safety glasses to protect your
hands and eyes.
Don’t let return spring snap out.
1) Put return spring into spring cover, hook spring’s outer
hook firmly to the cover’s gap and align
with starter reel’s
groove, then install cover into starter reel. Apply grease to
starter case’s tab. Install the starter reel and turn the starter
reel counterclockwise to hook the spring inner hook to the tab
on the starter case.
2) Make a knot at one end of the rope, then pull the other
End a bit out of starter reel’s rope hole. Then turn starter reel
5 turns counterclockwise. Pull out the rope end from starter
case hole and make a figure eight knot at the rope end.
3) Install ratchets, ratchet springs, reel cover and tighten
reel cover bolt.
4) Check the operation of the ratchet by pulling the starter
rope several times.
- 37 -
