LONCIN LC3000i User Manual

SECTION 4. DISASSEMBLY AND SERVICE
b.INSPECTION

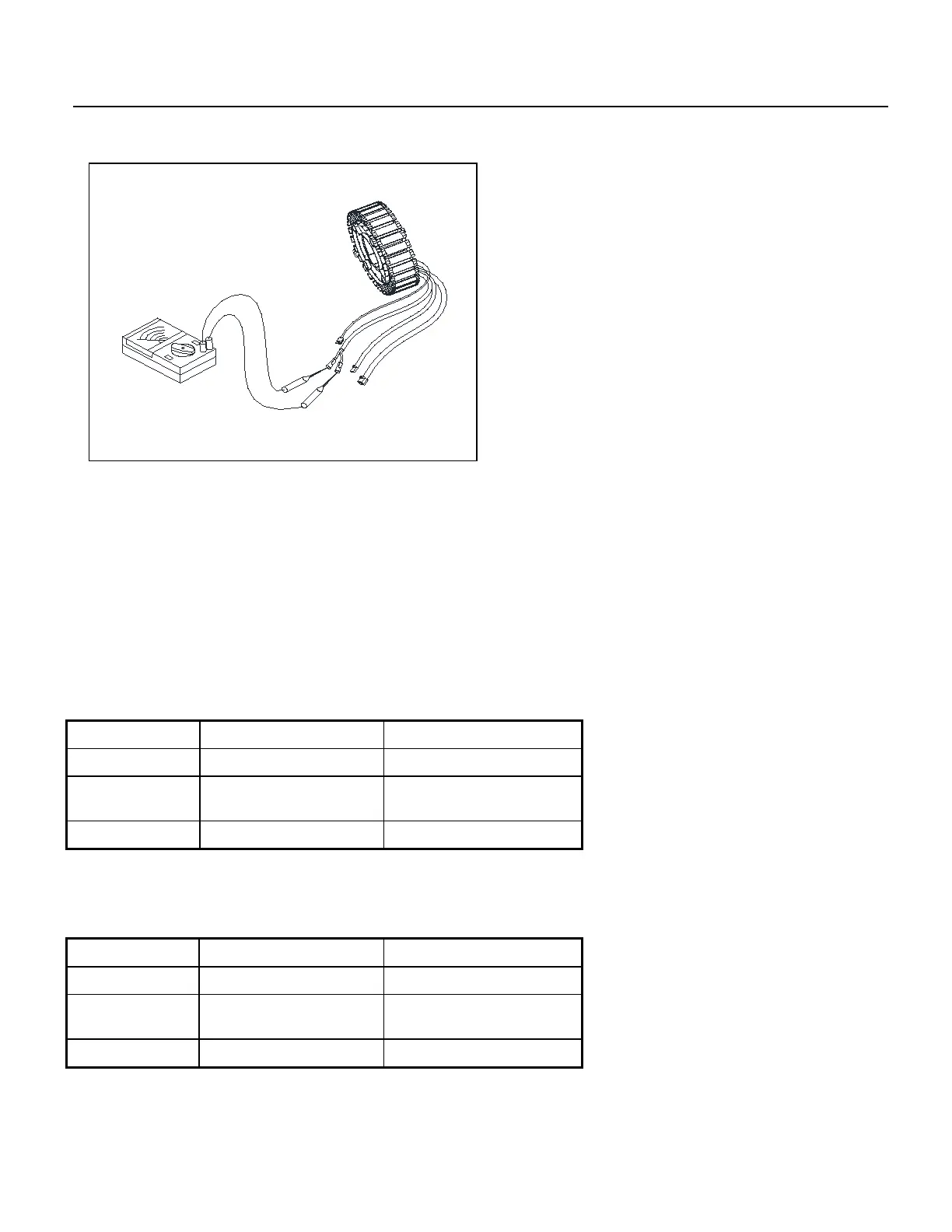

Main winding/power-supply winding/DC winding
If there is not DC voltage output, check if the DC over-current protector trips and the DC receptacle are
damaged. If yes, replace the receptacle.
If there is no AC voltage output, check if the AC receptacle is damaged. If yes, replace the receptacle.
Check if there is voltage between the motor stator and power-supply winding. If yes, replace the converter.
Otherwise replace the stator.
The resistance among windings of 230 V 2.3 KW is as follows:
Color of Guide Line
Resistance
Main winding
Brown
3.06Ω±15%
Power-supply
winding
Orange 0.42Ω±15%
DC winding
Blue
0.086Ω±15%
The resistance among windings of 120 V 2.3 KW is as follows:
Color of Guide Line
Resistance
Main winding
Brown
0.97Ω±15%
Power -supply
winding
Orange 0.42Ω±15%
DC winding
Blue
0.086Ω±15%
Replace the stator if the resistance is zero or infinite.
- 38 -
