-12-

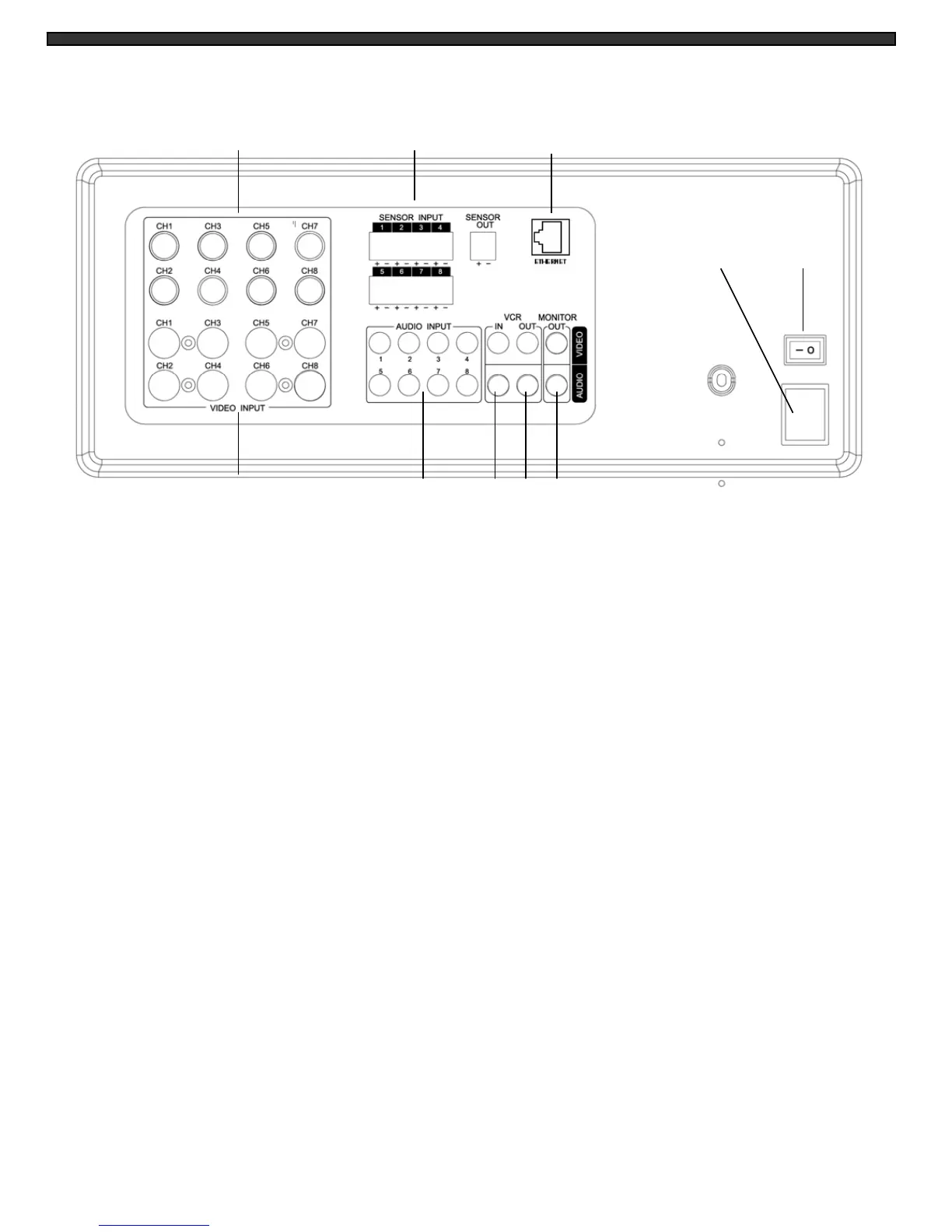

MONITOR CONTROLS - BACK PANEL:
1. AC Input - This button is used to connect the supplied power cord from the monitor to an
electrical outlet
2. Power - This button controls power to the entire unit . Depress the side with the ‘I’, to turn
power ON. Depress the ‘O’ side to turn the unit OFF
3. VCR Audio /Video In - Use with A/V cables (not supplied) to receive audio and video from an
external source (VCR)
4. VCR Audio/Video Out - Use with A/V cables (not supplied) to transmit audio and video
monitor to VCR
5. Slave Audio/Video Out - Use with A/V cables (not supplied) for use with a slave monitor
6. 6 Pin Din Camera Inputs - Channel 1-8 Camera inputs (for cameras with 6 pin din camera
inputs)
7. BNC Camera Inputs - Channel 1-8 camera inputs (for cameras with BNC Video outputs)
8. RCA Audio inputs - Channel 1-8 Audio inputs.(for cameras with RCA Audio output)
9. Alarm Function Terminals - These terminals are used to connect external alarm devices
such as a motion sensor, door/alarm sensor, or time lapse VCR.
10. Ethernet Input – Connect the LAN cable for IP enablement to a computer (see the Software
CD and Quick Start Guide for further instructions)
.
6
2
3 4 5
9
87
1
10
