Connecting the Camera3

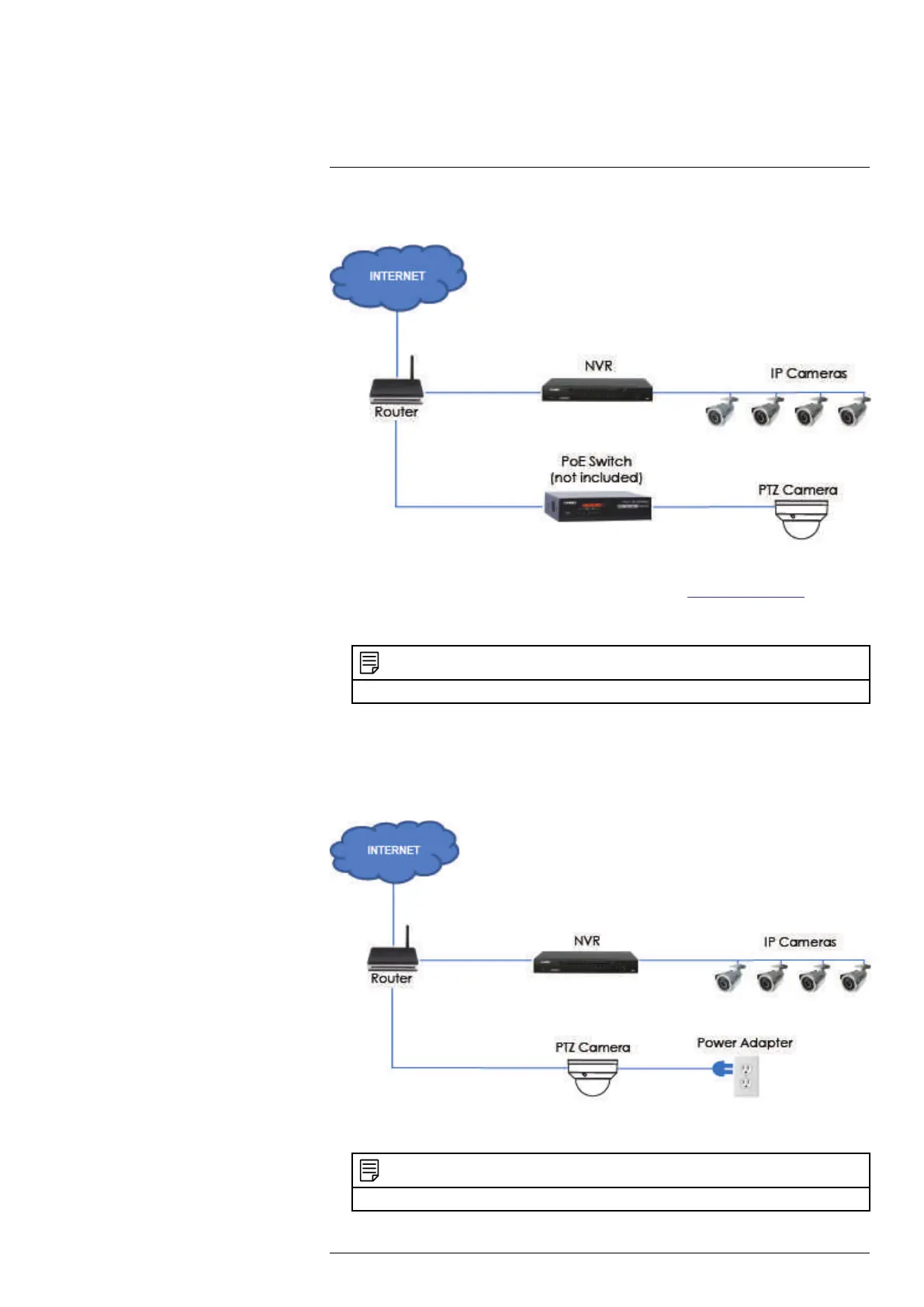

Step 1 of 2 — OPTION A: Connecting the camera to your local network using an optional
PoE switch:
CAT5E Cable (Included)CAT5E Cable (not included)
(may not be exactly
as shown)
1. Connect an Ethernet cable of up to 300ft (91m) rated CAT5e or higher (not included) from
the LAN port on an external PoE switch (sold separately on lorextechnology.com) to your
router. Connect the power cable to the PoE switch and plug into a power outlet or surge
protector.
NOTE
Terminology may vary depending on the model of PoE switch you have.
2. Connect the camera to the PoE switch using the included Ethernet cable (or a CAT5e Ether-
net cable of up to 300ft (91m)). The PoE switch will provide power and video transmission
the same way as your NVR.
Step 1 of 2 — OPTION B: Connecting the camera to your local network using a power
adapter:
CAT5E Cable (Included)
(may not be exactly
as shown)
1. Connect the camera to a power adapter (not included).
NOTE
For power requirement specification, see , page .
#LX400075; r. 4.0/58710/58717; en-US 4
