Installation4

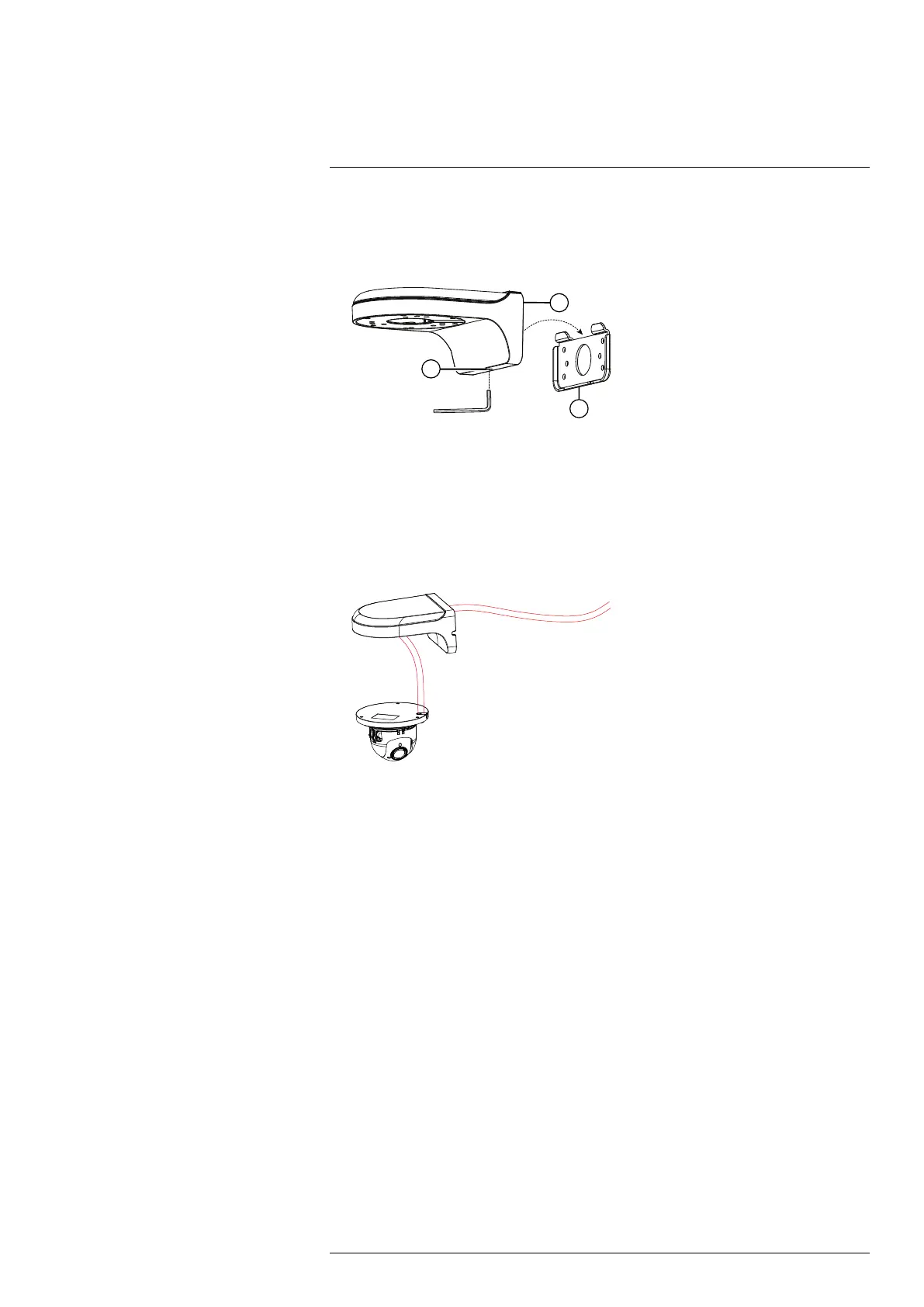

To wall mount the camera:
1. Use the Allen key (S3.0) included with the wall mounting bracket kit to loosen the hex lock
on the bottom of the wall mounting bracket. Once loose, remove the back plate of the mount-
ing bracket.
1. Wall Mount
2. Hex Lock
3. Back Plate
2. Use the Allen key included with the camera mounting kit to loosen the dome camera cover
screws (x3). Remove the dome camera cover.
3. Remove the Desiccant Silica gel pack from inside the dome cover.
4. Insert the camera cable through the hole in the wall mounting bracket.
#LX400075; r. 4.0/58710/58717; en-US 9
