Mounting the LCD receiver
Mounting the LCD receiver
The LCD Receiver can mounted to a wall or underneath a counter or cupboard.

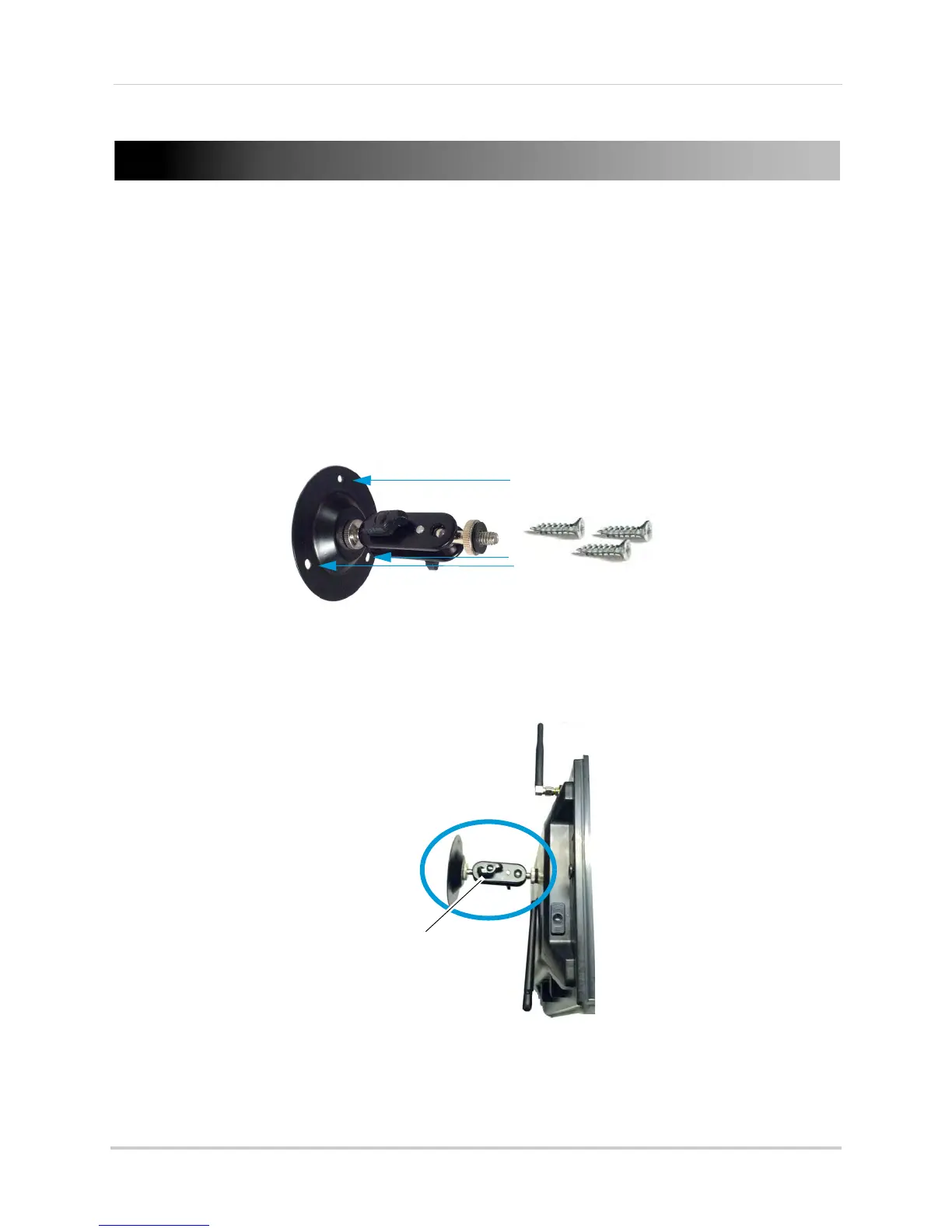

To mount the LCD receiver:
1 Select a location to mount the receiver. The location should have a clear reception to your
camera(s). Place the mounting stand in the desired mounting position and mark holes for the
screws.
NOTE: A
void installing in a location which requires the wireless signal to pass through
c
ement, concrete, and metal structures. This will reduce the range of transmission.
2 Drill the hol
es, and then mount the stand to the desired surface using the provided screws.
Make sure all three screws are fastened tightly at the connection points.
3 Adjust the antenna on the LCD receiver to allow for proper clearance with your mounting
surface.
4 Attach
the LCD receiver to the mounting stand. Adjust the position of the LCD receiver, and
then
tighten the thumbscrews to secure.
